M8 and M12 Sensor Cables Custom PVC, PUR, TPE, and Silicone Sensor Actuator Cables

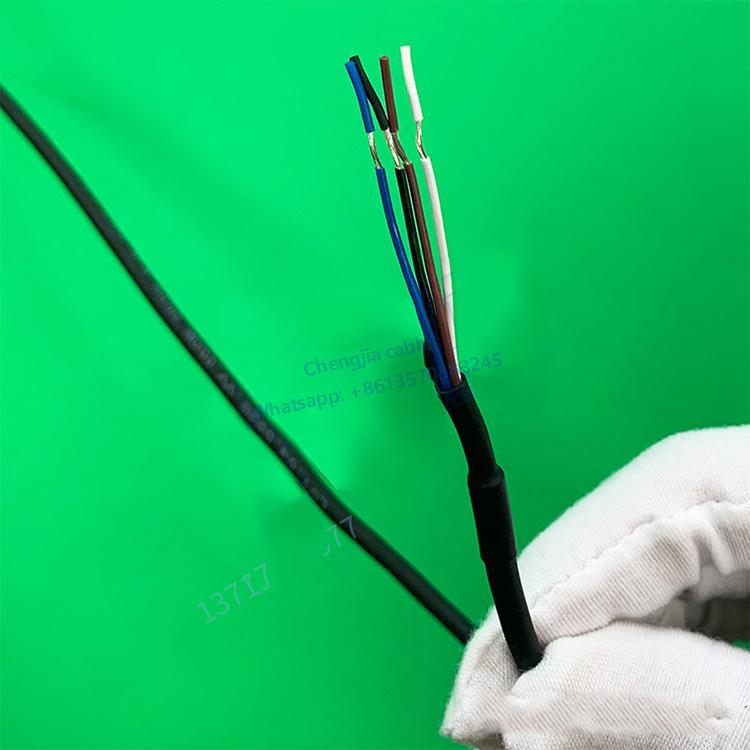

Actuator/Sensor Twisted Pair Shielded Cable

Product Structure:

• Conductor: Made of multi-strand ultra-fine precision-twisted oxygen-free copper wire or tinned copper wire, compliant with VDE 0295 Class 6 standards.

• Insulation: Special mixed PVC insulation (silicone, iron gas dragon, or TPE optional).

• Core Wire Color: Color-coded core wires for identification; multi-core wires use white/black core wires with numerical differentiation.

• Core Wire Structure: Core wires are twisted with optimized pitch and then twisted into a cable (chain drag structure optional).

• Inner Lining: PP tape or non-woven fabric

Product Structure:

• Conductor: Multi-strand ultra-fine precision-twisted oxygen-free copper wire or tinned copper wire, compliant with VDE 0295 Class 6 standards.

• Insulation: Special mixed PVC insulation (silicone, iron gas dragon, or TPE optional).

• Core Wire Color: Color-coded core wires for identification; multi-core wires use white/black core wires with numerical differentiation.

• Core Wire Structure: Core wires are twisted with an optimized pitch and then twisted into a cable (chain drag structure optional).

• Inner Lining: Wrapped with PP tape or non-woven fabric for cushioning (optional).

• Shielding: Aluminum foil, tinned copper braid (optional).

• Jacket: Low-adhesion special modified PVC (TPE, PUR, or silicone optional).

• Application Standards: JB/T 8734.5, VDE 0295, UL 20549.

Technical Parameters:

• Rated Voltage:

• <0.5 mm²: Uo/U 300/300V

• ≥0.5 mm²: Uo/U 300/500V

• Test Voltage:

• <0.5 mm²: 2000V

• ≥0.5 mm²: 2500V

• Minimum Bending Radius:

• Fixed Installation: 4D

• Moving Installation: 6D (D: cable outer diameter)

• Operating Temperature:

• Fixed Installation: -45°C to +90°C

• Moving Installation: -35°C to +90°C

• Fixed Installation: -30°C to +80°C

• Moving Installation: -20°C to +80°C (UL+cUL up to 105°C optional)

• Fixed Installation: -15°C to +70°C

• Moving Installation: -5°C to +70°C (105°C optional)

1. PVC:

2. TPE:

3. PUR:

4. Silicone: -60°C to +200°C

• Radiation Resistance: 8 × 10⁻⁷ cJ/kg

• Flame Retardancy: Meets national standards GB/T 18380, FT1, FT2, VW-1 flame retardancy tests (optional).
