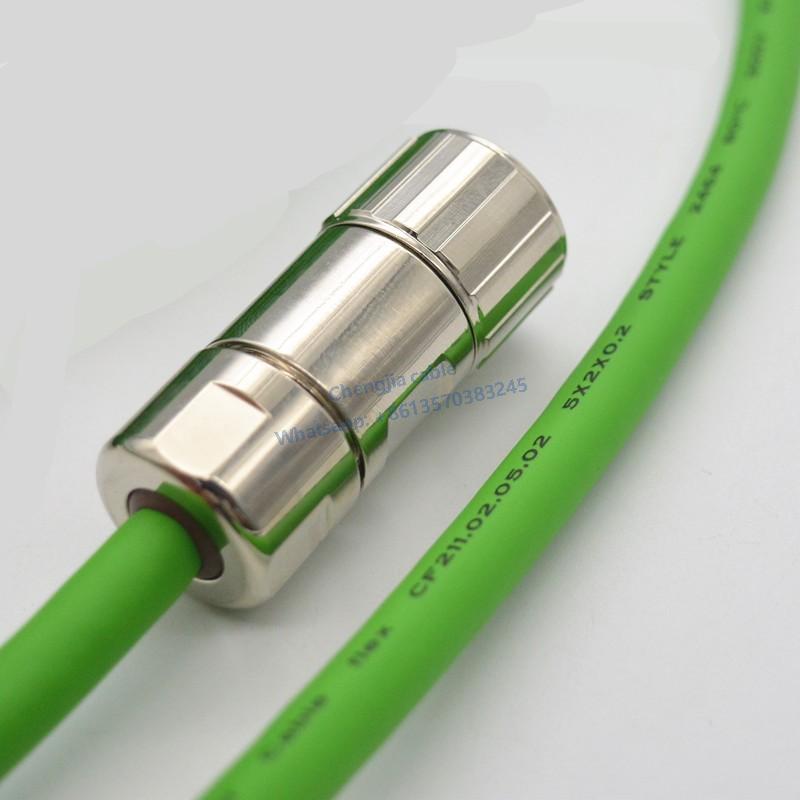

SIEMENS Servo Cables V90 Encoder Cable 6FX3002-2CT10-1AB5 with Connector for Incremental Encoders

SIEMENS Servo Cables V90 Encoder Cable 6FX3002-2CT10-1AB5 is the part number for a specific encoder cable used in Siemens systems. It's designed for connecting incremental encoders, typically used in industrial automation and motion control applications.

1. 6FX3002-2CT12-1AD0: Length 3 meters, high-flex drag chain mobile cable, green.

2. 6FX3002-2CT12-1AF0: Length 5 meters, high-flex drag chain mobile cable, green.

3. 6FX3002-2CT12-1CA0: Length 20 meters, high-flex drag chain mobile cable, green.

4. 6FX3002-2CT12-1BA0: Length 10 meters.

These cables are used for incremental encoders in industrial settings, suitable for connecting to drag chain systems. They are designed to be highly flexible, capable of withstanding frequent movement and bending while maintaining stable signal transmission.

The Siemens V90 absolute encoder cable (model 6FX3002-2DB20) uses the following specifications for its wiring:

• 10-core twisted pair shielded flexible cable: This design helps reduce electromagnetic interference, ensuring stable and reliable signal transmission.

• 0.08mm tin-plated copper core: Tin-plated copper cores provide excellent conductivity and enhance interference resistance.

• Equipped with anti-pulling cotton rope: The anti-pulling cotton rope enhances the durability and tensile strength of the cable during use.

• Customizable length: Depending on specific application needs, the cable length can be customized to meet different installation scenarios and distance requirements.

This type of cable is typically used in industrial automation systems that demand high precision and reliability, especially when connecting Siemens V90 series absolute encoders to ensure precise position feedback and data transmission.
