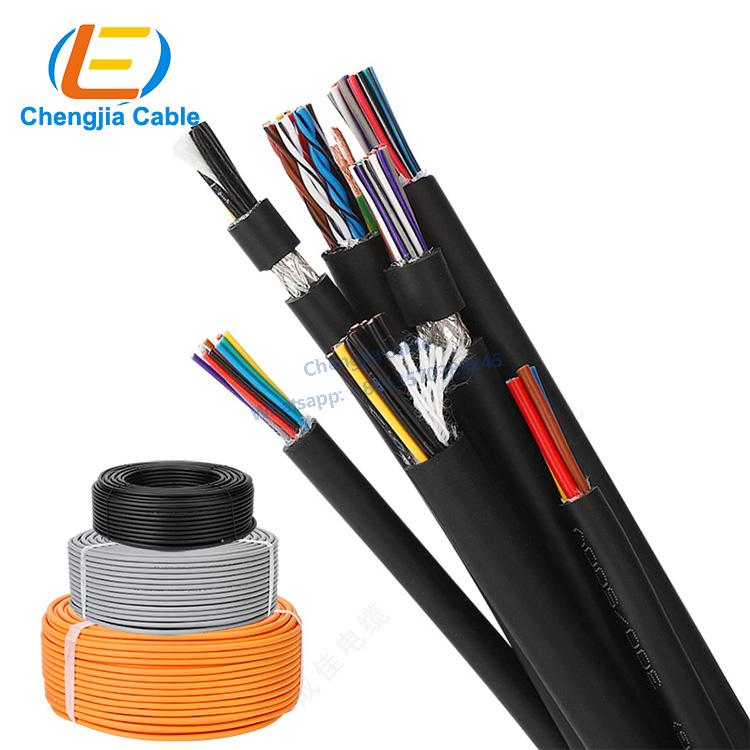

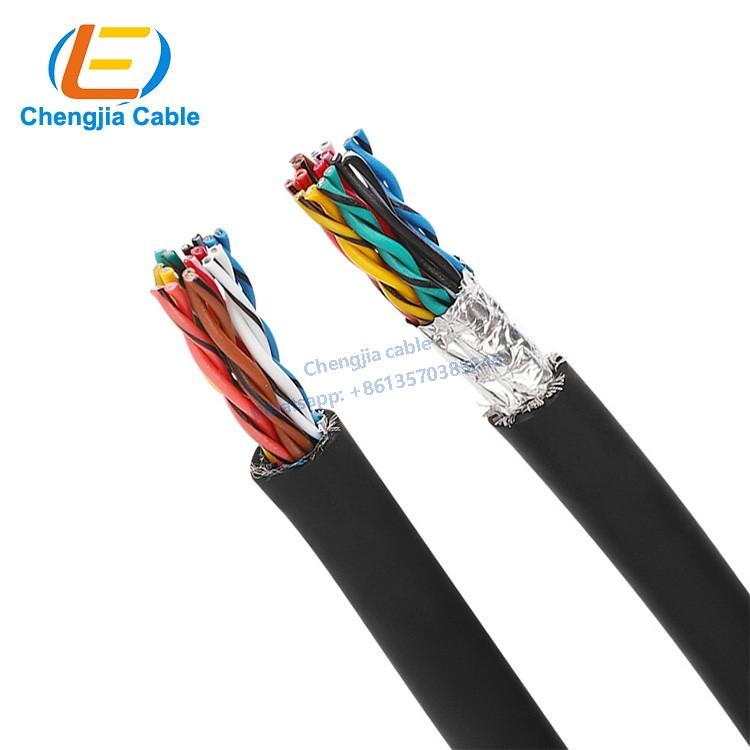

Flexible Screened Data Transmission Twisted Paired Cable Color Cores

Flexible screened data transmission twisted paired cable color cores can be used as control and signal cable in electronic equipment of the  the computer system, electronic control equipment, office machinery, balance scale ect.

Flexible Screened Data Transmission Twisted Paired Cable Color Cores Technical data

Screened, control, halogen-free cable from special polyurethane for drag chains, designed for high mechanical stress

Temperature range flexing from -30°C to +80°C; fixed from -50°C to +80°C

Nominal voltage Uo/U 300/500 V

Spark test 6000 V

Test voltage a.c. 2000 V

Insulation resistance min. 20 MΩ x km

Minimum bending radius approx. 10 x cable diameter

Radiation resistance up to 100 x 106 cJ/kg (up to 100 Mrad)

PUR- Screened control Cable is special cable with high permanent flexibility and resistance to abrasion.

Due to PUR Cable very good mechanical characteristics and resistance to mineral oils is this cable suitable for use in machinery, robotics, steel works and all critical areas.

Packing of the Flexible Screened Data Transmission Twisted Paired Cable Color Cores:

1.  Length: Customizable:100m/roll,200m/roll,300m/roll

2. Inner Packing: Customizable: Wooden reel, plastic reel, and paper reel available.

3. Outer Packing: Customizable: Carton box, pull out box, pallet available.

4.Other packing available according to client's request.

Delivery:

Lead-time within 3 weeks or according to customer's request.

DHL, TNT, UPS, FEDEX

Ship by air or by sea
