PUR High Flexible Data ULCable For Drag Chains/Track Cable

Mounter cables, inkjet cables, conveyor lines, and assembly lines have relatively high flexibility and a smaller bending radius; on the other hand, due to mechanical damage caused by high-speed movement and potential physical and chemical factors, PUR high flexible data UL cable for drag chains/track cable are required It has the ability of wear resistance, fatigue resistance, impact resistance, low temperature resistance, and chemical resistance.

Highly flexible UL cable for drag chains/track cable have the characteristics of impact resistance, low temperature resistance, and chemical resistance, which meet the stringent requirements of various high-speed production lines for cables.

Description PUR High Flexible Data ULCable For Drag Chains/Track Cable:

  Highly flexible data transmission PVC cable can transmit analog and digital signals in equipment with control processor, or as a connection line between instrument and control equipment, suitable for low power consumption and uninterrupted data transmission occasions.

The twisted pair and small pitch of the cores can reduce the interference between the external pairs of cores.

 The conductor pair twisting ensures the anti-interference performance of individual signal transmission. Copper wire braiding is used as a sheath to reduce signal interference. The cut-resistant and ductile PUR outer sheath ensures low wear rate in the drag chain and high mineral oil resistance of the cable. The compound used in the cable can make the cable be used normally at a low temperature to -40°C.

The color of the outer sheath is black, other colors can be selected as required.

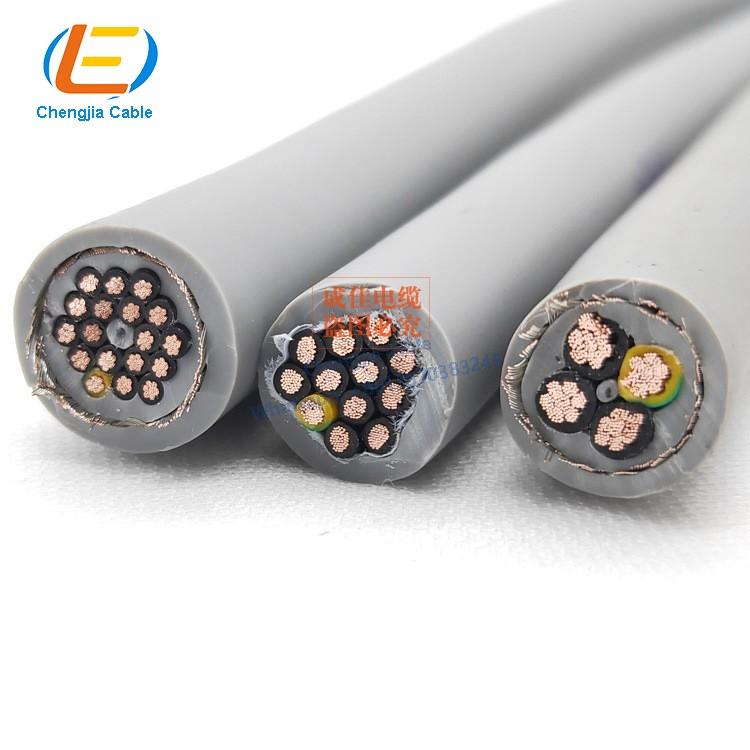

Highly flexible data transmission cable product composition:

The core wire color conforms to DIN 47100 color core wire color code

Core: the core wire is twisted into a pair, the wire pair is twisted into a cable,

Insulator: modified PVC insulation

Conductor stranding method: Multi-strand ultra-fine copper wire stranding conforms to VDE 0295, category 6 column 4 standard

Insulation resistance: minimum 100M Ohm X Km

Temperature range: -20℃ to +80℃

Bending radius: 7.5 x cable diameter

Used for drag chain system service life: more than 5 million cycles

Compliant with standards: Comply with UL and EU RoHS requirements
