2*2*0.2 twisted pair shielded data transmission cable high flexibility drag chain cable carrier resistant to bending 15 million times servo cable

15 million times servo cable is used to transmit analog digital signals in devices that control processors, or as a connecting line between instruments and control equipment, suitable for low power consumption and uninterrupted data transmission. The shielding layer uses tinned copper wire to reduce oxidation, with a coverage rate of up to 80%, which effectively reduces electromagnetic interference during use. The outer sheath color is: green, and other colors can be selected as needed.

EMAIL


15 million times servo cable is used to transmit analog digital signals in devices that control processors, or as a connecting line between instruments and control equipment, suitable for low power consumption and uninterrupted data transmission. The shielding layer uses tinned copper wire to reduce oxidation, with a coverage rate of up to 80%, which effectively reduces electromagnetic interference during use. The outer sheath color is: green, and other colors can be selected as needed.

PVC Data Cables (9).jpg

Technical Parameter

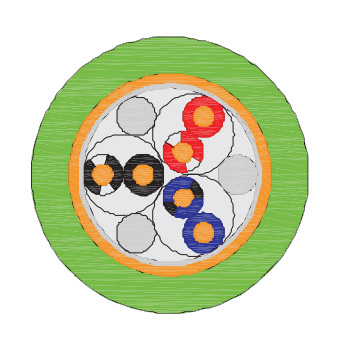

  • The conductors are twisted together in groups using ultra-fine copper wires (less than 0.1mm).

  • The cable adopts a wrapped structure, providing a soft touch.

  • Under standard installation and use conditions, the service life can exceed 15 million cycles, suitable for use in high-speed motion drag chains.

  • It is highly suitable for high-speed bending motions within drag chains of automated equipment, servos, and various electrical appliances.


YY1006 ULTRA HIGH FLEXIBLE DRAG CHAIN DATA servo cable                                                                                        ( 10 million times reliability tests for drag chain)

No.

Product Code

Cores Number and cross-sectional area

Approximate outer diameter (mm)

Outer sheath color

(NO.Xm㎡)

1

YY1006.04.0014

2x2x0.14

6.0

Black

2

YY1006.06.0014

3x2x0.14

6.3

Black

3

MC-YY3006.04.0014

2x2x0.14

5.9

Black

4

MC-YY3006.06.0014

3x2x0.14

5.9

Black

5

YY1006.04.0020

2x2x0.2

6.0

Green,Black

6

YY1006.06.0020

3x2x0.2

6.3

Green,Black

7

YY1006.08.0020

4x2x0.2

7.0

Green,Black

8

YY1006.10.0020

5x2x0.2

7.4

Green,Black

9

YY1006.12.0020

6x2x0.2

8.2

Green,Black

10

YY1006.14.0020

7x2x0.2

8.6

Green,Black

11

YY1006.16.0020

8x2x0.2

9.0

Green,Black

12

YY1006.20.0020

10x2x0.2

10.0

Green,Black

13

YY1006.04.0030

2x2x0.3

6.2

Green,Black

14

YY1006.06.0030

3x2x0.3

6.6

Green,Black

15

YY1006.08.0030

4x2x0.3

7.3

Green,Black


 Chengjia Wire and Cable Co., Ltd., established in 2009, specializes in the development and manufacturing of high-end special wire and cable. Use the best raw material & Provide the best service, so as to guarantee the cables’stable performance under longtime extremely harsh working conditions.   Chengjia offers our customers the highest quality products, which complys with UL ,CE,TUV,3C  Certifications and our factory successfully obtained ISO 9001:2000.

FAQ

Q Are you a manufacturer or a trading company?

A We are a manufacturer,we can control your order from the first beginning to the ast.Welcome to visit us.We’ll pick you up in Guangzhou.

Q What's your payment terms?
A By T/T 30% in advance ; Balance 70% before shipment. Now you can pay through Alibaba company to our Alibaba sub-account.However, the terms can be negotiated according to quantity.

Q l didn't find my needed cable in the page.
A Dear Friend, If you don't find the cable you need, please contact us.

Q What 's your delivery time?
A Usually, we can arrange the shipment within 3-5 days if in stock. Or it takes about 10- 35 days for normal orders.

Q What is your MOQ?
A Normally, 100 meters can be accepted. For special cable the minimum order quantity will be negotiated.

Q How can l get a sample to check your quality?
A We are honored to offer you samples. Sample is free, you only need to pay for the shipment. Waiting for your cooperation.
