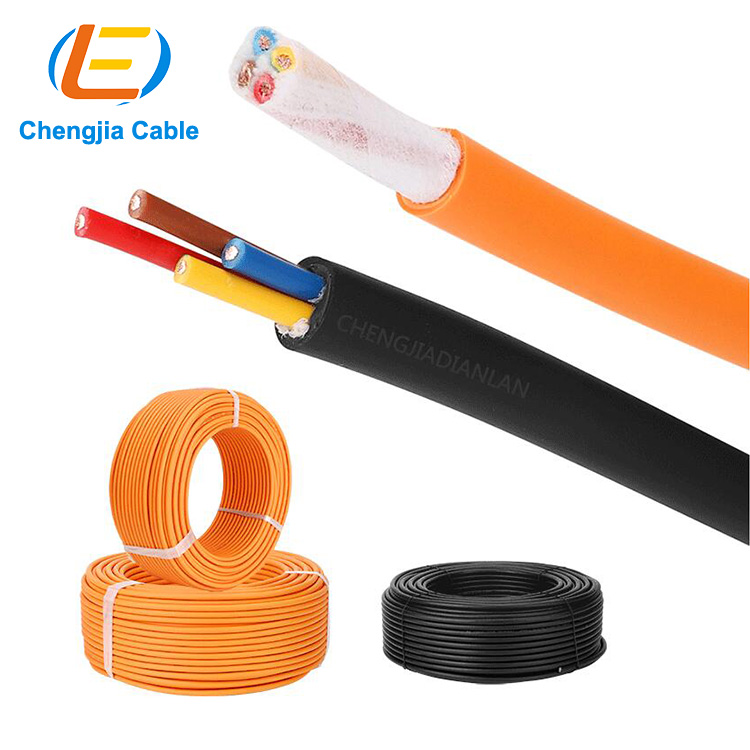

Servo motor special drag chain chainflex cables with brake brake 4*0.5+2*0.2 square

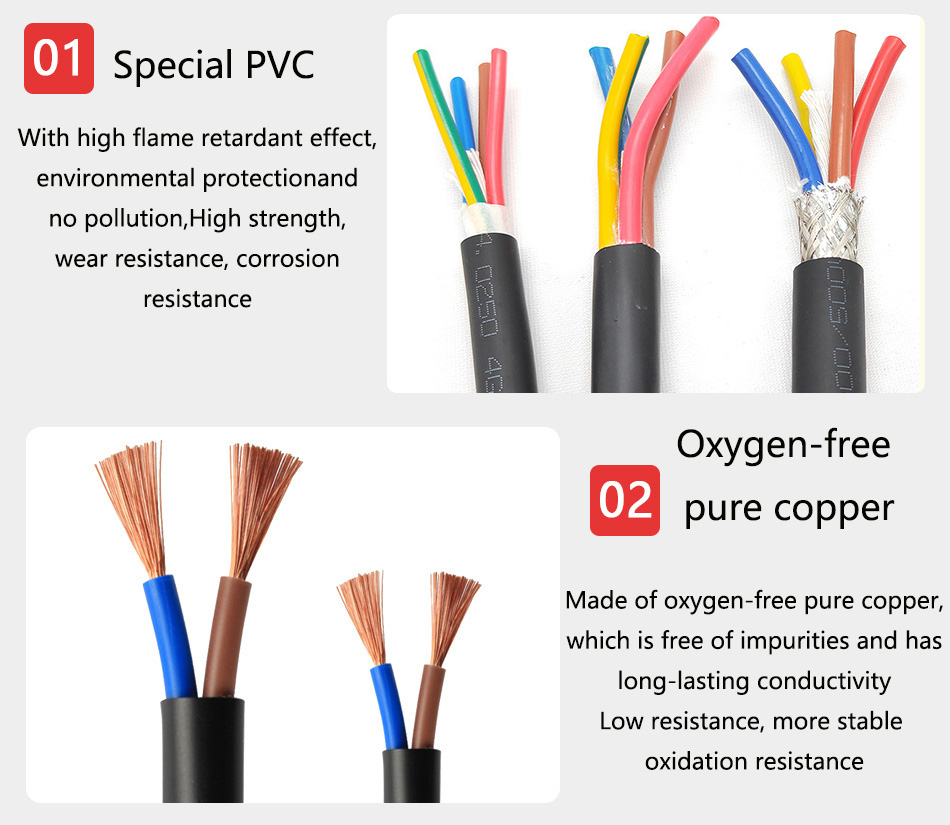

Highly flexible PVC drag chain chainflex cables for drag chain systems use special highly flexible PVC as the outer sheath, which is extremely resistant to oil and coolant and can be used in humid environments, but cannot be used outdoors. The special structure and PVC synthetic materials give the cable a long working life.

Cable Structure:

• Conductor Twisting Method: Multi-strand ultra-fine copper wires twisted according to VDE 0295, Class 6, Column 5 standards.

• Insulation Resistance: Minimum 100M Ohm × km.

• Fillers: Textile filling and covering fibers enhance tensile strength and bending resistance.

• Temperature Range: -30°C to +80°C.

• Bending Radius: 7.5 × cable diameter.

• Drag Chain System Service Life: 10 million cycles.

• Compliance: Complies with UL and EU RoHS requirements.




 G=代表有黄间绿地线。如：4G0.5，则为4芯x0.5平方，一芯颜色为黄间绿，其余三芯分别黑、白、红，更多其它规格或特殊定制产品，请联系我们卡尔德电缆产品顾问。

One-stop procurement service provider

complete varieties of ordinary, highly flexible, and ultra-high flexible cables

1. Flexible service robot cable: drag chain 50 million times, 3D torsion more than 20 million times;

2. Industrial robot body cable: 3D torsion 20 million times, 50 million times can be customized;

3. Special cable for linear motor: drag chain 50 million times, 100 million times can be ordered;

4. Ultra-high-speed drag chain cable: drag chain 20 million times, refer to German standard, full extrusion hard wire technology;

5. Ultra-high flexible drag chain cable: drag chain 10 million times, refer to Japanese standards, semi-extrusion flexible cord technology;

6. Highly flexible towline cable: 5~8 million times, refer to Japanese standards, semi-extrusion flexible cord technology;

7. Industrial flexible cable: 2 million low-speed movements, electrical cabinet, servo encoder, IO control wiring;

8. Data bus cable: CC-Link, DeviceNet, Profibus, Cat5e/6a Ethernet cable, etc.;

9. Medical cables: industrial endoscopes, B-ultrasound, medical lifting tables, imaging equipment, sensors, surgical robot cables, etc.;

 10. In addition, precision sensor cables can be customized, as well as various high-demand, ultra-fine, chemical-resistant, and high-temperature-resistant special cables.

Company Profile

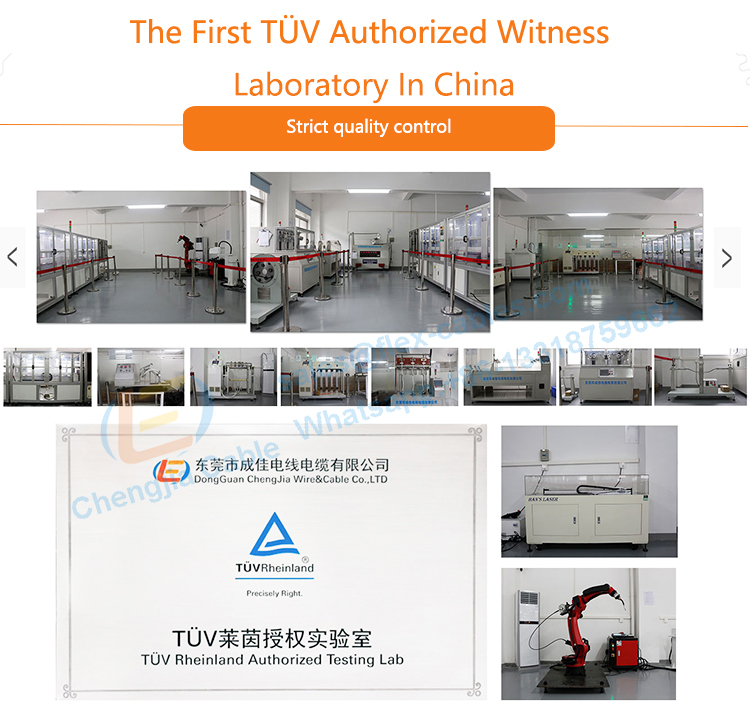

 Chengjia Wire and Cable Co., Ltd., established in 2009, specializes in the development and manufacturing of high-end special wire and cable. Use the best raw material & Provide the best service, so as to guarantee the cables’stable performance under longtime extremely harsh working conditions.   Chengjia offers our customers the highest quality products, which complys with UL ,CE,TUV,3C  Certifications and our factory successfully obtained ISO 9001:2000.
