CAT6a industrial Ethernet cables CAT 6A Cabling Systems

CAT6a industrial Ethernet cables for drag chains are suitable for installation in dry or humid indoor environments, under conditions of free continuous reciprocating motion without strong stress relief or forced guidance. They are particularly suitable for applications in industrial environments that involve frequent bending, such as woodworking machinery, machine tools, logistics conveyor systems, and crane operations, offering excellent electromagnetic shielding against interference. These cables support EtherCAT and EtherNet/IP applications, with transmission frequencies up to 500MHz. Outer sheath colors available include black, green, purple, yellow, and blue.

Product Features:The product meets CAT6a standards with individual aluminum foil shielding per pair, ensuring no signal interference or crosstalk. It is waterproof, oil-resistant, cold-resistant, UV-resistant, abrasion-resistant, and flame-retardant, with a bending lifespan of over 5 million cycles. The outer sheath is available in green or black, with other colors available upon customer request.

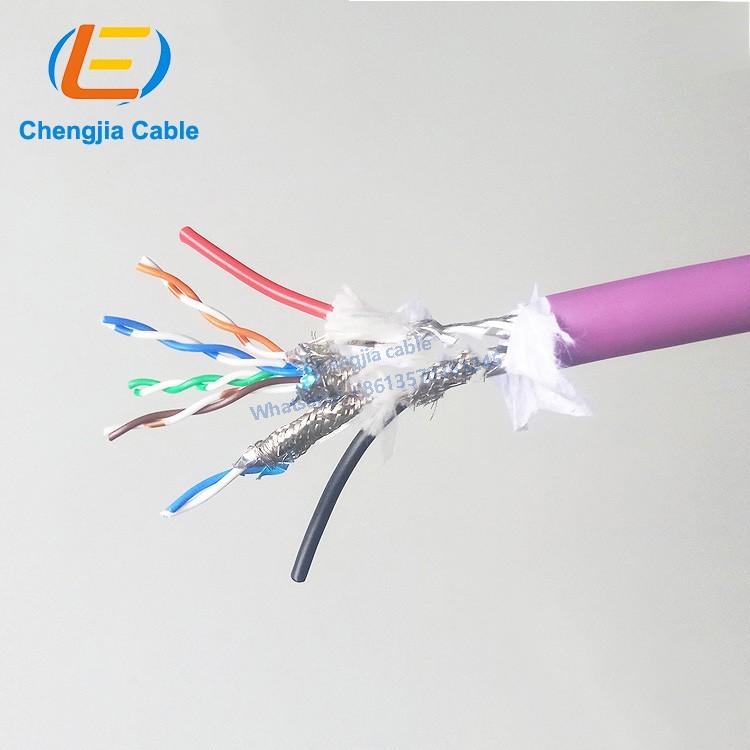

Cable Structure:

• Conductor: Multi-stranded and finely stranded oxygen-free copper wires, meeting DIN VDE 0295 Grade 6

• Insulation: High-quality PVC blend, color-coded or number-coded conductors with a yellow-green core for >3 cores

• Shielding: Tinned copper braid, shielding density >85%

• Sheath: High-quality PVC blend, available in green or black

• Temperature Range: -20°C to +80°C

• Bending Radius: 7.5 times the cable diameter

• Standard Voltage: Uo/U 300/300V

• Drag Chain System Lifetime: Over 5 million cycles

• Compliance: Complies with CE and EU RoHS requirements

These CAT6A cables are suitable for industrial Ethernet applications, featuring different shielding types and outer sheath materials to meet various environmental requirements.
