Flexible Control Cables Customized For Connection Wire System

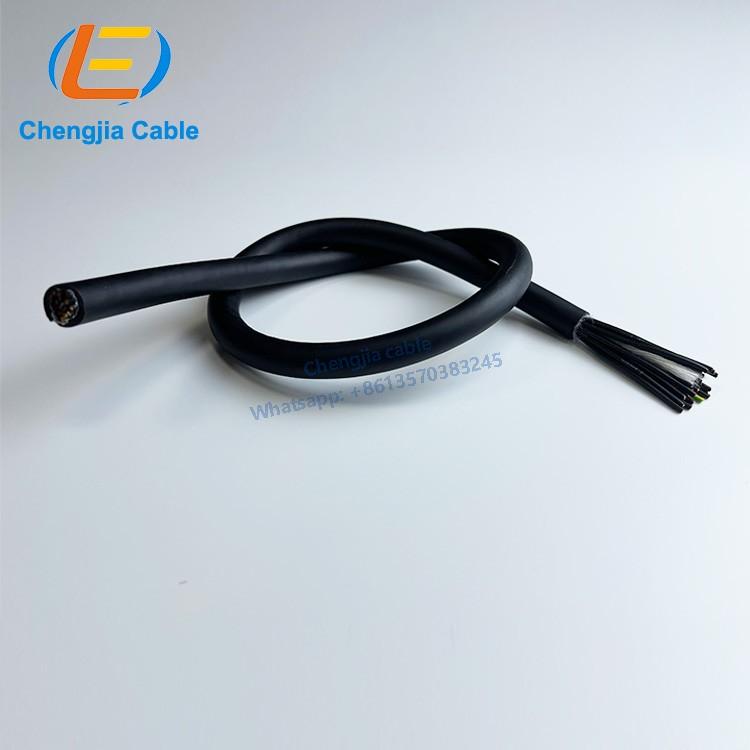

Applications range from plant engineering, multi-axis articulated robots, automated handling equipment and in power chains and/or moving maching parts.Flexible Control Cables Customized For Connection Wire System is high flex, black polyurethane jacketed robotic cable specifically designed for simultaneous bending and torsion.

Flexible Control Cables Customized For Connection Wire System Structure

Conductor: Highly flexible medium drag chain cable, multi-strand ultra-fine warp stranded oxygen-free bare copper wire, in line with VDE0295 CLASS 6                            standard

Insulation: special mixed elastomer nitrile/TPE material

Color code: <0.5mm2 color code: black, brown, blue, purple, pink, orange;

                     ≥0.5mm2 black digital white number coding

                     More than 3 cores with yellow/green grounding protection wire

Core structure: layered anti-twist structure, or grouped gap filling

Sheath material: special mixed elastomer nitrile material

Sheath color: black (RAL9005)

                      Gray (RAL7001)

                      Orange (RAL2003)

Characteristics and compliance

Movement characteristics: laying stroke: 50m, acceleration 30m/S2, moving speed 5m/S

Bending life: 30 times/min, design life of highly flexible drag chain cable with> 6 million cycles of bending

Features: low-viscosity surface

                Anti-shallow water, anti-oil, anti-ultraviolet, excellent weather resistance, keep soft at low temperature

               High flexibility, bending resistance, wear resistance, withstand certain mechanical external forces

Compliance with certification: CE
