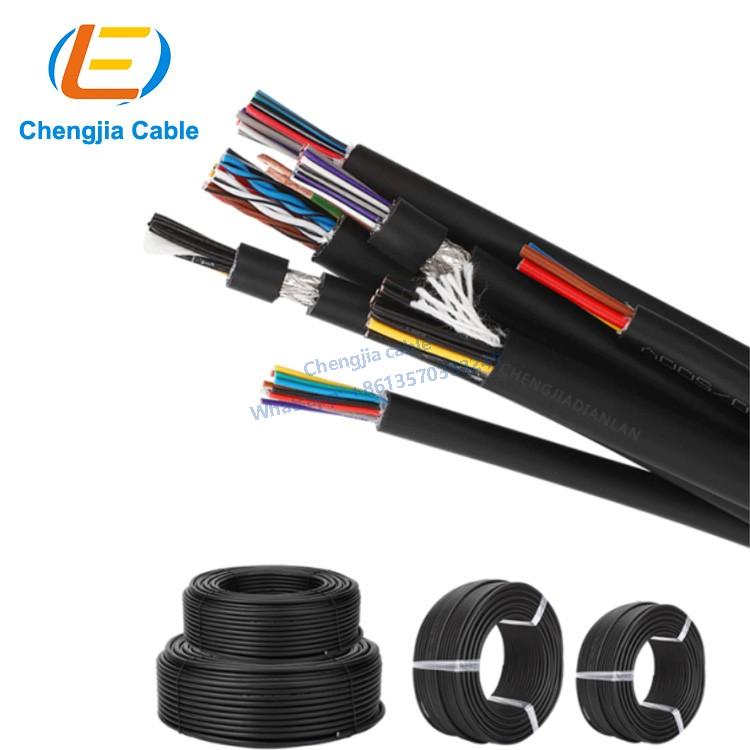

PUR Sheath Screened Multicore Flexible Track Data Shielded Cable

PUR sheath screened multicore flexible track data shielded cable is using high-quality elastomer insulation and sheathing materials, the outer diameter of the cable is greatly reduced, saving installation space in the drag chain, and the design of the highly flexible bend-resistant cable in the drag chain has a bending life of more than 5 million cycles of bending, and shallow water resistance , Oil resistance, UV resistance, excellent weather resistance, low-viscosity surface, non-stick installation; low temperature to maintain flexibility

Packing For the PUR Sheath Screened Multicore Flexible Track Data Shielded Cable:

1.  Length: Customizable:100m/roll,200m/roll,300m/roll

2. Inner Packing: Customizable: Wooden reel, plastic reel, and paper reel available.

3. Outer Packing: Customizable: Carton box, pull out box, pallet available.

4.Other packing available according to client's request.

Delivery:

Lead-time within 3 weeks or according to customer's request.

DHL, TNT, UPS, FEDEX

Ship by air or by sea

PUR Sheath Screened Multicore Flexible Track Data Shielded Cable Structure

VDE 0295/IEC 60228 category 6 conductor, using multiple strands of finely stranded ultra-fine bare copper wire

Special elastomer material core wire insulation; <0.5mm2 color identification: black brown, blue purple pink orange; ≥0.5mm2 color digital white number code, 3 cores or more with yellow/green grounding protection wire

Very small pitch of wire cores

Non-woven material coating

Tinned copper wire braided shield (shielded drag chain cable)

Special elastomer sheath material bright (RAL9005) gray (RAL7001)

technical parameter

Minimum bending radius

Mobile installation: 7.5x cable outer diameter

Fixed installation: 4x cable outer diameter

Operating temperature range

Mobile installation: -15°C~+70°C

Fixed installation: -20°C~+80°C

Conductor structure

VDE 0295/EC 60228 category 6 conductor, using multiple strands of finely twisted ultra-fine bare copper wires

Core identification

<0.5mm2 color core (DIN 47100); 20.5mm2 color core white digital code (VDE 0293)

Core wire grounding mark

G=Yellow/green two-color grounding logo

X=No yellow/green two-color grounding mark

Working voltage Uo/U: 300/300V~0.6/1KV

Test voltage: 2500V~4000V

Certification: CE RoHS
