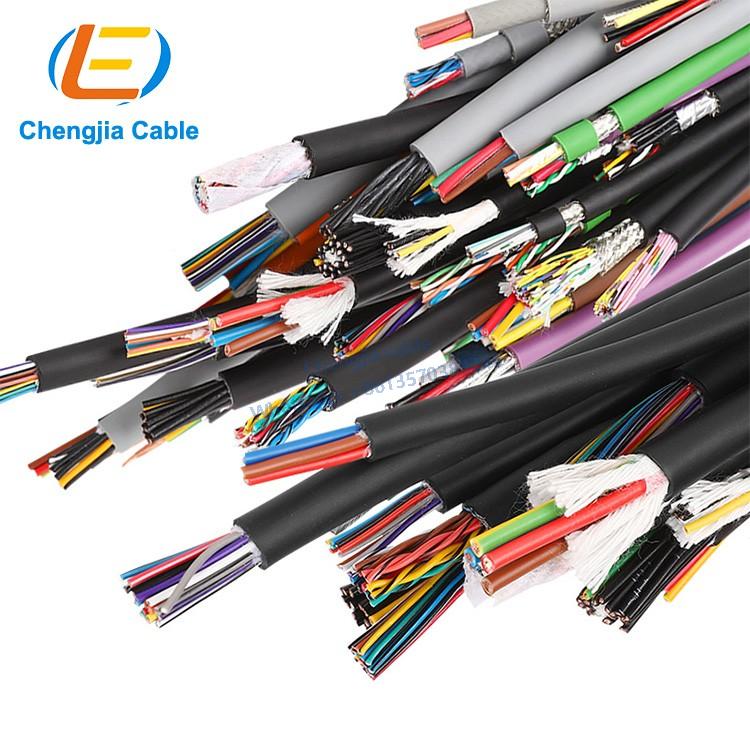

14*0.2mm2 Highly Flexible PVC Sheathed Copper Wire Control Cable

 Highly flexible PVC sheathed copper wire control cable is used for electrical connection in industrial automation, complete sets of electromechanical equipment, machine tools and other mechanical equipment, logistics transmission systems, production lines and other control systems. It is especially suitable for industrial environments, dry or humid indoor and outdoor fixation Installation, can also be used for non-continuous reciprocating movement without forced traction mobile installation. If the cable is to be installed outdoors, it must be protected against ultraviolet rays. The cable has good flexibility. The sheath is made of oil-resistant PVC, so that the cable has good oil resistance. The tinned copper braid makes the cable have strong resistance to external electromagnetic interference and ensures the stability of the cable system

Structure Of Highly Flexible PVC Sheathed Copper Wire Control Cable:

Conductor: Conforms to IEC 60228/VDE0295, category 5 conductor

Insulation: special PVC mixed material

Core wire: The core wire is twisted into a cable, the color of the core wire conforms to VDE 0293

JZ black core wire white digital code with yellow and green wires

JB color core wire with yellow and green wire

OZ black core wire white digital code without yellow and green wires

OB color core wire without yellow-green wire

Shield: tinned copper braided shield

Outer sheath: special PVC mixed material

Outer sheath color: black and gray

PVC Sheathed Copper Wire Control Cable Technical parameter:

Working voltage: 0.6/1KV

Test voltage: 3500V

Insulation resistance: ≥20MΩ/Km (20℃)

Minimum bending radius: Mobile installation: about 20×D (cable outer diameter)

                                             Fixed installation: about 6×D (outer diameter of cable)

Working temperature: mobile installation: -5℃ to +70℃

                                    Fixed installation: -30℃ to +70℃

Flame-retardant characteristics: in line with VDE0472-804 part B test standards, and IEC 60332-1

Feature Of Highly Flexible PVC Sheathed Copper Wire Control Cable:

1. Good mechanical properties and excellent electrical insulation

2. Ultra-fine conductor, smaller bending angle

3. Double-layer shielding, anti-electromagnetic interference characteristics
