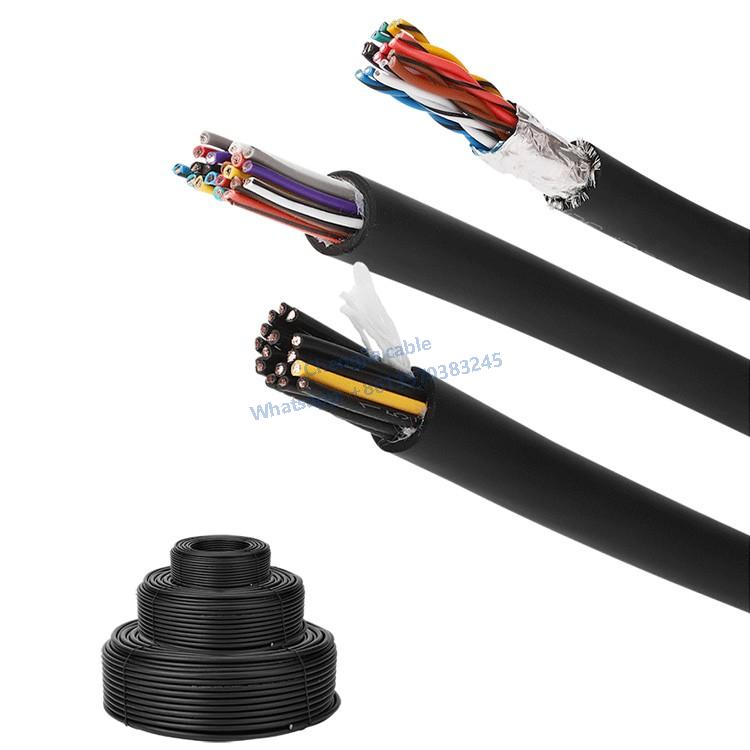

4P*22AWG Flexible Copper Cable RVVP PVC Sheath Servo Cable

Flexible copper cable RVVP PVC sheath servo cable is mainly used for data and signal transmission in drag chain systems, using copper wire high-density braided shielding to ensure accurate data transmission and protect cables from electromagnetic interference. It is widely used in machinery, instruments, industrial electronic equipment, computers, and information transmission systems, and is suitable for any two-way communication occasions.

Feature of the flexible copper cable RVVP PVC sheath servo cable

The twisted pair and small pitch of the core wires can prevent interference between the core wires and the outside;

The color of the outer sheath is black, other colors can be selected according to requirements.

1. Conductor stranding: stranding of multiple ultra-fine copper wires meets the standard of VDE0295, category 6 column 4

2. Insulation resistance: minimum 100 M Ohm x Km

3. Temperature range: -20°C to +80°C

4. Bending radius: 7.5x cable diameter for drag chain system

5. Service life: more than 5 million towline cycles

6. Compliance with standards: UL, TUV, CE and EU RoHS requirements

7. Cable use: It can be used in multi-joint robots, manipulators, CNC machine tools, non-standard automation equipment, servo encoders/motors, drag chain systems, laser equipment, electrical cabinets, industrial imaging and other fields.

Chengjia mobile bending test standard:

   Simulate the bending and movement of the cable in the drag chain to test various conditions. Take a sample from the finished product and fix it on the drag chain experimental device according to the method below. The bending radius r=7.5D; S=600mm speed is performed at 60 times/min. In the test, the number of round trips exceeds 5,000,000 times without disconnection.
