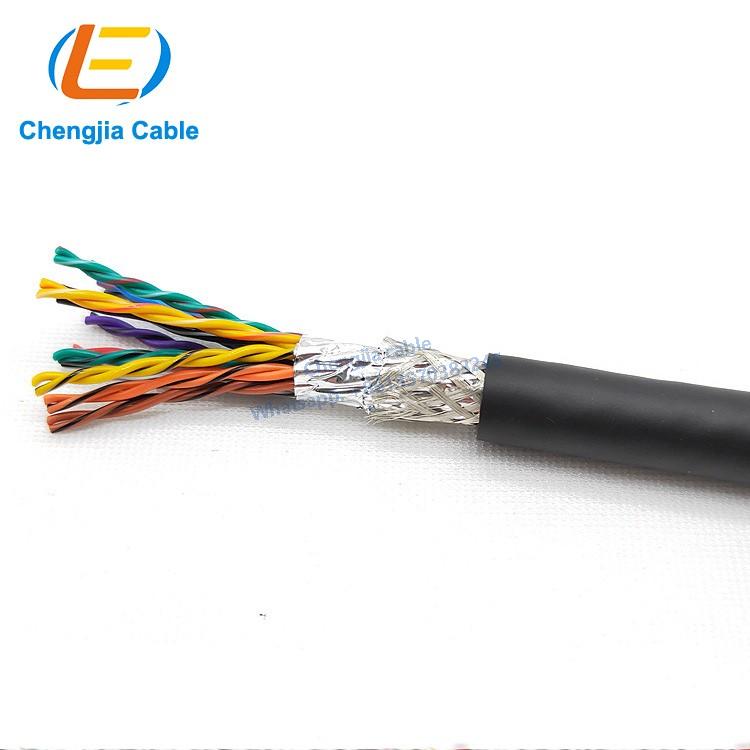

2 pairs x 0.3 mm2 Flexible Data Transmission Cable PVC Insulated Shield Data Cable

Flexible data transmission cable PVC insulated shield data cable is suitable for dry, wet environment, but cannot be used in the outdoors.they are used for shielding terminals and connection cables In control, measurement and signal technology.Copper wire braided shield outside interference, such as electromagnetic field and the spurious frequency. Used as signal and pulse cables in the industrial plants, machinery and process control and inspection systems.

5 million times high flexible towline cable series

1. YY507 series: modified PVC insulation sheath, flexible power cable 0.5mm2~6.0mm 2

2. YY508 series: modified PVC insulation sheath, shielded flexible power cable 0.5mm-6.0mm2

3. YY506 series: modified PVC insulated sheath, twisted pair shielded Flexible Data Transmission Cable PVC Insulated Shield Data Cable 0.14mm2-0.5mm2

4. YY501 series: modified PVC insulation sheath, flexible control cable 0.14mm-2.5mm

5. YY502 series: modified PVC insulated sheath, shielded flexible control cable 0.14m2~2.5mm2

Application selection

1. Fixed installation:

It is used for fixed installation in the cabinet, servo control, field wiring and fixed installation connection lines in various places. According to the requirements of use: wear-resistant, oil-resistant, waterproof, anti-interference, etc., select the best Standard flexible 2 million times low-speed sports cable is enough, see the product classification column for details.

2.Drag chain installation:

It is used in the occasion of long-term reciprocating movement of U-shaped drag chain. According to the oil-resistant and non-oil-resistant type, the drag chain cable can be selected for 5 million times, 10 million times, 20 million times and 50 million times respectively.

 It is suitable for servo wiring, laser equipment, non-standard automation equipment/production lines, data machine tools, three-axis manipulators and other fields.

3.Robot cable:

Used in industrial robots, service robots, manipulators, etc., according to the requirements of use: bending times, bending radius, assembly space, 3D twisting, reciprocating movement, friction, etc., select a good special flexible, extremely flexible, and resistant Grinding products
