2/3/4 core * 0.5/0.75/1/1.5/2.5 mm stock available low-speed motion cable chain drag power cables

2/3/4 core * 0.5/0.75/1/1.5/2.5 mm stock available low-speed motion cable chain drag power cables

Low-speed chain drag power cables are mainly used for control and power transmission systems, and are widely used in sensor technology, computer and instrument control equipment and control engineering; three-core and above have green/yellow protective grounding conductors with short pitch.

Outer sheath color: black, other colors can be selected as needed

Technical Parameter

Standard		Comply with UL20276 standard, thin wire diameter design
Conductor		adopts high-quality tinned copper stranded copper wire
Insulation material		Modified PVC
Core structure		Small pitch single stranding
Core recognition		Color core
Outer sheath		Modified PVC mate
Color		black (other colors can be customized)
Bending radius		Mobile installation 7.5×cable diameter Fixed installation 6x cable diameter
Nominal voltage		Uo/U 300/500 V
Test voltage		2000 V
Application:		It can be used in multi-joint robots, manipulators, CNC machine tools, non-standard automation equipment, servers/motors, drag chain systems and other fields.

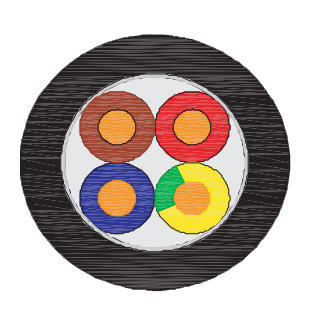

Cable Structure

Low-speed chain drag power cables Structure

Conductor twisting method: Multiple strands of ultra-fine copper wires are twisted in accordance with VDE 0295 Class 6 and IEC 60228.

Temperature range: -20℃ to +80℃

Bending radius: 7.5 x cable diameter

Standard voltage: Uo/U 300/500V

Service life for drag chain system: more than 3 million cycles

Standards: Comply with UL and EU RoHS requirements

YY07 Low-speed chain drag power cables Suitable for Fixed Installations and Flexible Applications
No.	Product Code	Cores Number and cross-sectional area	Approximate outer diameter （mm)	Outer sheath color
No.	Product Code	(NO.Xm㎡)	Approximate outer diameter （mm)	Outer sheath color
1	YY07.02.0050	2x0.5	5.6	Black
2	YY07.03.0050	3G0.5	6	Black
3	YY07.04.0050	4G0.5	6.5	Black
4	YY07.02.0075	2x0.75	6	Black
5	YY07.03.0075	3G0.75	6.5	Black
6	YY07.04.0075	4G0.75	7.2	Black
7	YY07.02.0100	2x1.0	6.4	Black
8	YY07.03.0100	3G1.0	6.9	Black
9	YY07.04.0100	4G1.0	7.8	Black
10	YY07.02.0150	2x1.5	7.5	Black
11	YY07.03.0150	3G1.5	8.2	Black
12	YY07.04.0150	4G1.5	9.0	Black
13	YY07.05.0150	5G1.5	9.0	Black
14	YY07.02.0250	2x2.5	9.0	Black
15	YY07.03.0250	3G2.5	9.8	Black
16	YY07.04.0250	4G2.5	11.0	Black
17	YY07.05.0250	5G2.5	12.5	Black
18	YY07.02.0400	2x4	11.0	Black
19	YY07 03 0400	3G4.0	12.0	Black
20	YY07.04.0400	4G4.0	13.0	Black
21	YY07.05.0400	5G4.0	14.8	Black
22	YY07.02.0600	2x6	12.2	Black
23	YY07.03.0600	3G6.0	13.0	Black
24	YY07.04.0600	4G6.0	14.4	Black
25	YY07.05.0600	5G6.0	16.5	Black
26	YY07.04.1000	4G10.0	19.5	Black
27	YY07.04.1600	4G10.0	23.0	Black
28	YY07.06.1922	4G0.75+2x0.3	8.2	Black
29	YY07.06.1520	4G0.75+2x0.3	10.0	Black
30	YY07.04.1315	3x2.5+1G1.5	10.8	Black
31	YY07.04.1113	3x4.0+1G2.5	12.2	Black
32	YY07.04.0911	3x6.0+1G4.0	14.0	Black

One-stop procurement service provider:

complete varieties of ordinary, highly flexible, and ultra-high flexible cables

1. Flexible service robot cable: drag chain 50 million times, 3D torsion more than 20 million times;

2. Industrial robot body cable: 3D torsion 20 million times, 50 million times can be customized;

3. Special cable for linear motor: drag chain 50 million times, 100 million times can be ordered;

4. Ultra-high-speed drag chain cable: drag chain 20 million times, refer to German standard, full extrusion hard wire technology;

5. Ultra-high flexible drag chain cable: drag chain 10 million times, refer to Japanese standards, semi-extrusion flexible cord technology;

6. Highly flexible towline cable: 5~8 million times, refer to Japanese standards, semi-extrusion flexible cord technology;

7. Industrial flexible cable: 2 million low-speed movements, electrical cabinet, servo encoder, IO control wiring;

8. Data bus cable: CC-Link, DeviceNet, Profibus, Cat5e/6a Ethernet cable, etc.;

9. Medical cables: industrial endoscopes, B-ultrasound, medical lifting tables, imaging equipment, sensors, surgical robot cables, etc.;

10. In addition, precision sensor cables can be customized, as well as various high-demand, ultra-fine, chemical-resistant, and high-temperature-resistant special cables.

Chengjia Wire and Cable Co., Ltd., established in 2009, specializes in the development and manufacturing of high-end special wire and cable. Use the best raw material & Provide the best service, so as to guarantee the cables’stable performance under longtime extremely harsh working conditions. Chengjia offers our customers the highest quality products, which complys with UL ,CE,TUV,3C Certifications and our factory successfully obtained ISO 9001:2000.
