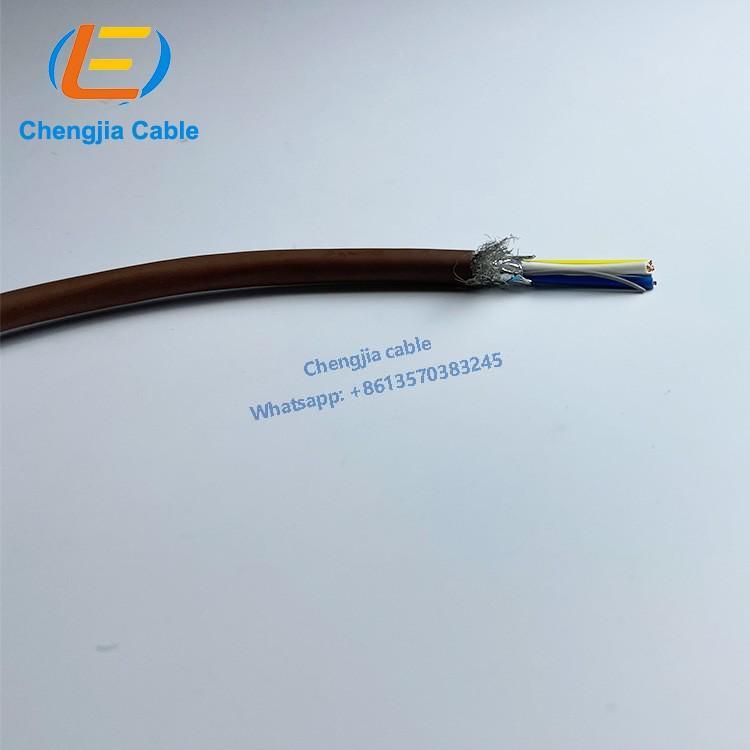

CC-link Cable 3CX20AWG for moving applications

CCNC-SB110H CC-Link fieldbus cable, used for data transmission in CC-LINK bus systems, features high abrasion resistance and medium resistance. The blue drag chain version can withstand long-term acceleration, deceleration, stretching, compression stress, and millions of cycles of periodic bending.

CC-link Cable structure

1. Bare copper conductor, thin copper wire, in line with DIN VDE0295 Class 6 and IEC60228 Class 6;

2. Insulation meets bus standards, insulation resistance: minimum 20MOhm*km;

3. Core wire identification meets bus standards;

4. Twisting method meets bus standards,

5. Improved tinned copper wire braided shield, coverage ≧85%, in line with EMC electromagnetic compatibility requirements;

6. Modified PVC sheath, green matte;

7. Minimum bending radius: fixed installation 7.5*cable diameter, mobile installation 14*cable diameter;

8. Temperature range: fixed installation -20~+80 degrees, mobile installation -5~+70 degrees;

9. Environmental protection: in line with EU RoHS and REACH regulations;
