4*22AWG/0.34 PUR Profinet Ethernet Cable Industrial Ethernet Bus I/O and Fieldbus Manufacturer

PROFINET is a new generation automation bus standard based on industrial Ethernet technology, launched by PROFIBUS International (PI). As a strategic technological innovation, PROFINET provides a comprehensive network solution for the field of automation communications, encompassing key topics such as real-time Ethernet, motion control, distributed automation, fault tolerance, and network security. It is designed as a vendor-independent technology that fully supports both industrial Ethernet and existing fieldbus technologies like PROFIBUS, thereby protecting existing investments.

PROFINET offers a complete solution adaptable to various needs, consisting of 8 main modules: real-time communication, distributed field devices, motion control, distributed automation, network installation, IT standard data security, fault tolerance, and process automation.

Profinet Ethernet Cable, an industrial Ethernet bus cable, is primarily used in Siemens' PROFINET industrial Ethernet network systems. It is suitable for indoor and outdoor installation in cable trays or conduits, meeting the requirements for high-speed industrial Ethernet transmission (10-100 Mbps).

Profinet Ethernet Cable features:

• Overall aluminum foil + tin-plated copper wire braided shielding, excellent anti-interference performance.

• PVC sheath with flame retardant and oil resistance properties; PUR sheath with excellent mechanical resistance, abrasion resistance, oil resistance, acid and alkali resistance, hydrolysis resistance, corrosion resistance, UV resistance, suitable for use in complex and harsh environments.

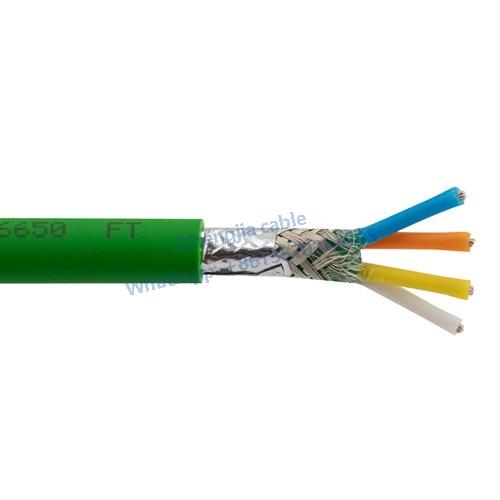

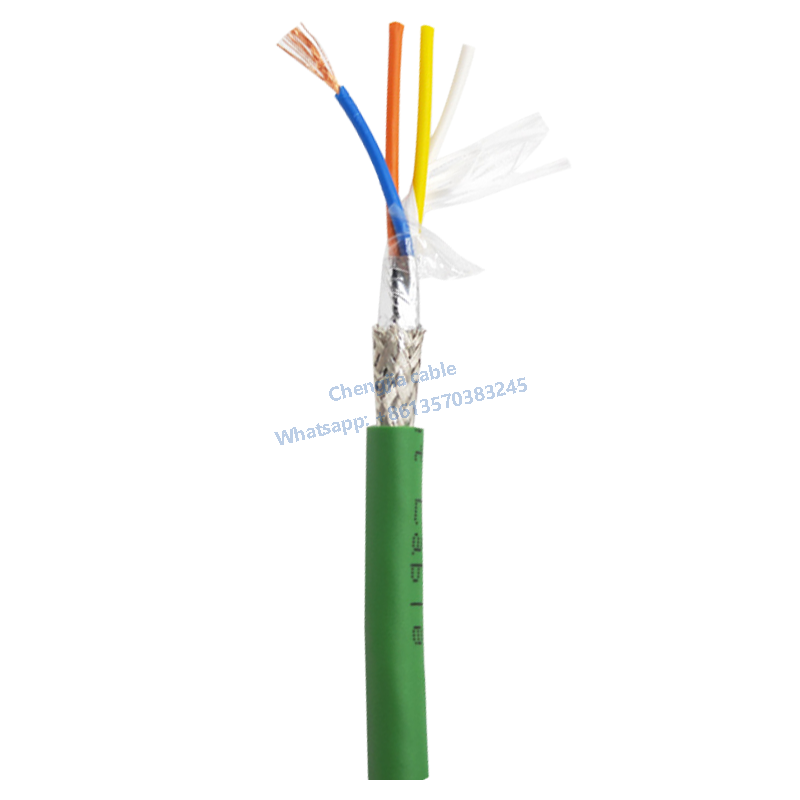

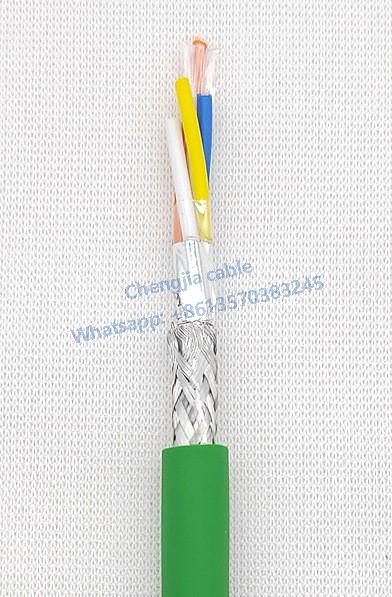

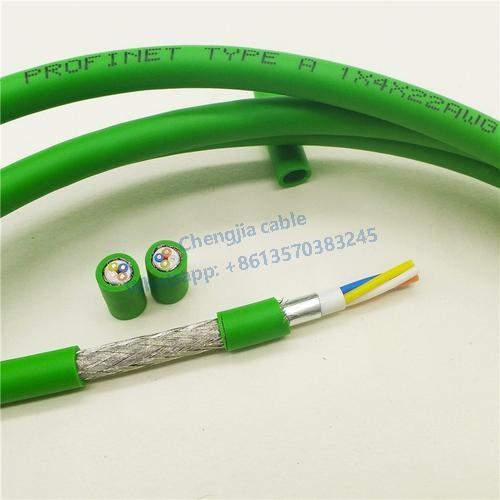

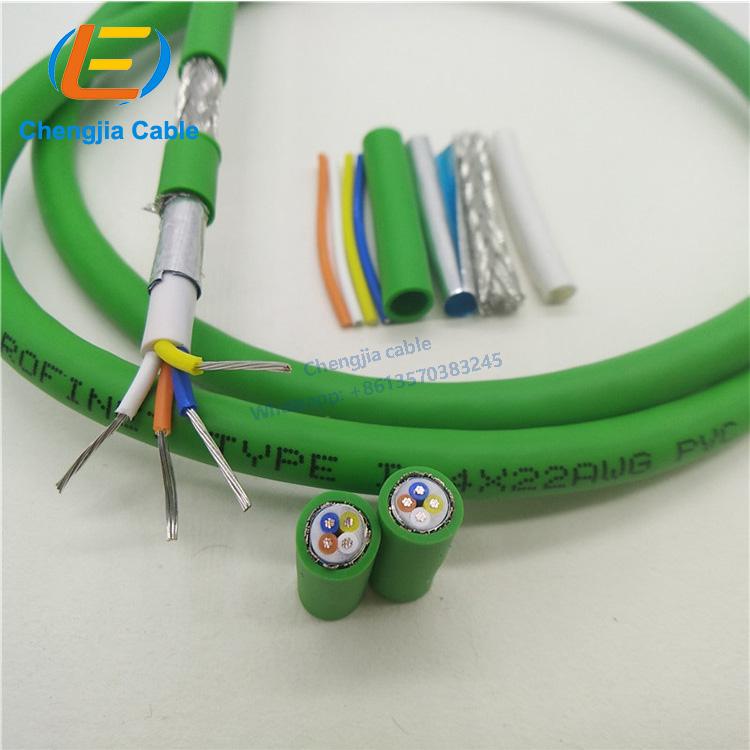

Profinet Ethernet Cable Structure:

• Conductor: Multi-stranded bare copper twisted (19/0.15).

• Insulation: Foamed PE.

• Core Wire Colors: Orange, yellow, blue, white.

• Shielding: Aluminum foil + tin-plated copper braided shielding, braiding density ≥85%.

• Outer Sheath: Flame retardant PVC or PUR.

• Outer Sheath Color: Green.

Profinet Ethernet Cable Technical Specifications:

• Characteristic Impedance: 100MHz 100Ω±15.

• Loop Resistance: Maximum 58Ω/km.

• Operating Temperature: -20°C to +70°C.

• Minimum Bending Radius: 15xD (cable diameter).

The above specifications default to PVC sheath. If you need PUR sheath or need a drag chain moving type, please contact customer service.

PROFINET Cable is an industrial Ethernet bus cable primarily used in Siemens PROFINET industrial Ethernet network systems. It is suitable for indoor and outdoor installation in cable trays or conduits. It meets the requirements for industrial Fast Ethernet transmission (10-100 Mbps).

The cable features overall aluminum foil with tinned copper wire braid shielding, providing excellent electromagnetic interference resistance. The PVC sheath is flame-retardant and oil-resistant, while the PUR sheath offers outstanding mechanical resistance, abrasion resistance, oil resistance, acid and alkali resistance, hydrolysis resistance, corrosion resistance, and UV resistance, making it suitable for use in complex and harsh environments. The outer sheath color is green, with other colors available upon request.
