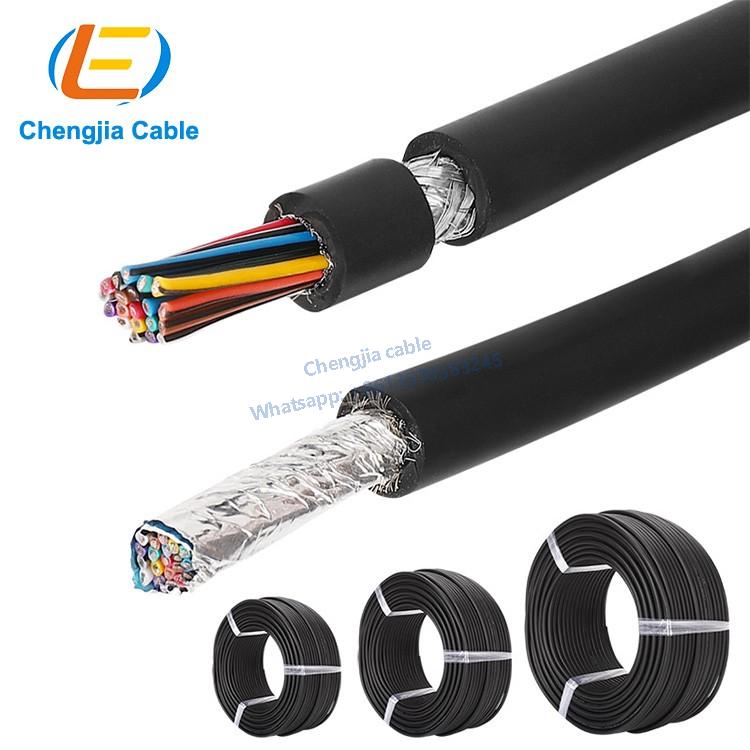

Multi Conductor KRVV Flexible Control Cable

Multi Conductor KRVV Flexible Control Cable

2 million low-speed motion PVC sheathed Flexible Control Cable are widely used in control equipment for sensing technology, computer systems and measurement control technology; the overall copper wire shielding ensures accurate data transmission and protects the cable from electromagnetic interference. The color of the outer sheath is black, and other colors can be selected as required.

Specification Of Flexible Control Cable

Feature of Flexible Control Cable

1. Conductor stranding method: multi-strand ultra-fine copper wire stranding meets VDE0295, category 5, column 3 standards

2.Insulation resistance: minimum 100 M Ohm x Km

3. Temperature range: -20°C to +80°C

4. Bending radius: 7.5x cable diameter for drag chain system

5. Service life: fixed installation or 2 million low-speed sports use

6. Compliance with standards: UL and EU RoHS requirements

7. Uses: It can be used in multi-joint robots, manipulators, CNC machine tools, non-standard automation equipment, servers/motors, drag chain systems and other fields.

Other series 2 million times flexible cable for choise

1. YY07 series: modified PVC insulation sheath, flexible power cable 0.5mm2~6.0mm 2

2. YY08 series: modified PVC insulation sheath, shielded flexible power cable 0.5mm-6.0mm2

3. YY06 series: modified PVC insulated sheath, twisted pair shielded data transmission cable 0.14mm2-0.5mm2

4. YY01 series: modified PVC insulation sheath, flexible control cable 0.14mm-2.5mm

5. YY02 series: modified PVC insulated sheath, shielded flexible control cable 0.14m2~2.5mm2

• ChengJia Wire &Cable Co.,LTD is a leading manufacturer of special cables in China since 2009 .Especially in Ultra slim cable ,Ultra flexible.cable ,Clean room cables ,High temperature Cables etc.Quality can match with Foreign coutry made grade but in cheaper cost.We are a ISO9001 certified facotry who have obtained UL ,CE,TUV ,3C certification .

Chengjia Cable Testing Standard

Chengjia mobile bending test standard:

      Simulate the bending and movement of the cable in the drag chain to test various conditions. Take a sample from the finished product and fix it on the drag chain experimental device according to the method below. The bending radius r=7.5D; S=600mm speed is performed at 60 times/min. test. The number of round trips exceeds 2,000,000 times without disconnection.

Chengjia mobile winding test standard:

       Take a sample from the finished product and fix the moving pulley and weight as shown in the figure below. The diameter of the pulley and the weight of the weight refer to UL standards. The moving pulley is tested at a speed of 0.33m/s and a moving distance of 0.5m or more. Pulley Sample Pulley The number of round trips exceeds 10,000 times. No short circuit occurs, and the insulating sheath is not cracked or damaged.

Chengjia 90° bend test standard:

       Take a sample from the finished product and fix it on the 90 bending test device as shown in the figure below, and hang a specified weight at the other end; the bending radius and weight of the weight refer to UL standards, and the device is bent at a speed of 40 times per minute for testing. No short circuit occurs when the number of round trips exceeds 20,000 times, and the insulating sheath is not cracked or damaged.
