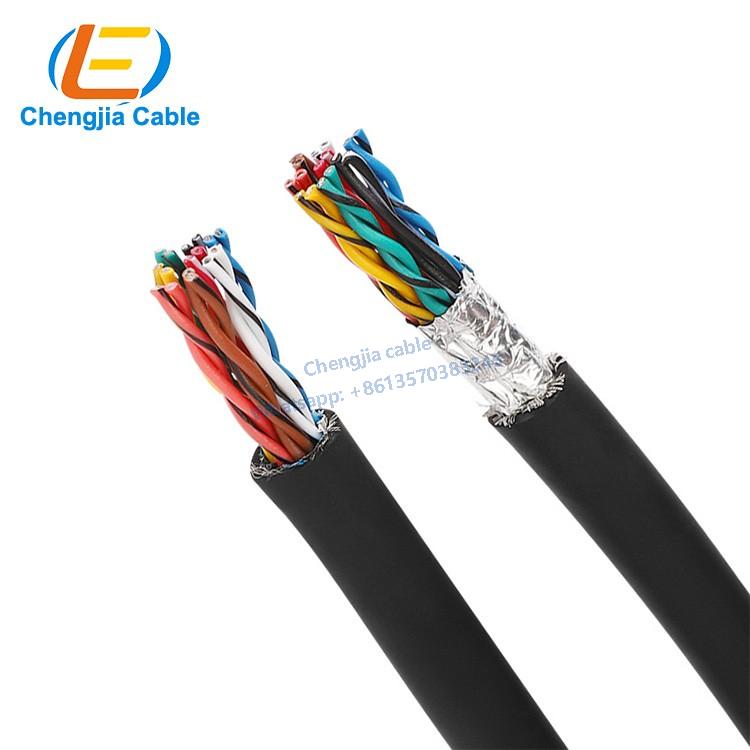

2P*0.2 Flexible Shielded Data Transmission Cable

 Highly flexible shielded data transmission cable are used for analog and digital signals, and interference-free transmission,which is widely used for the transmission of precise data and signals for connection measurement and control in CNC machine tool drag chain systems, loading and unloading equipment and robots. The overall copper wire shielding ensures accurate data transmission and protects the cable from electromagnetic interference. The color of the outer sheath is: green; gray, black or other colors can be selected as needed.

The fearure of flexible shielded data transmission cable

Highly flexible shielded data transmission cable used in drag chain system,with PVC as the outer sheath, which is extremely resistant to oil and coolant, and can be used in humid environments, but cannot be used outdoors. The special structure and PVC synthetic material make the cable have a long working life.

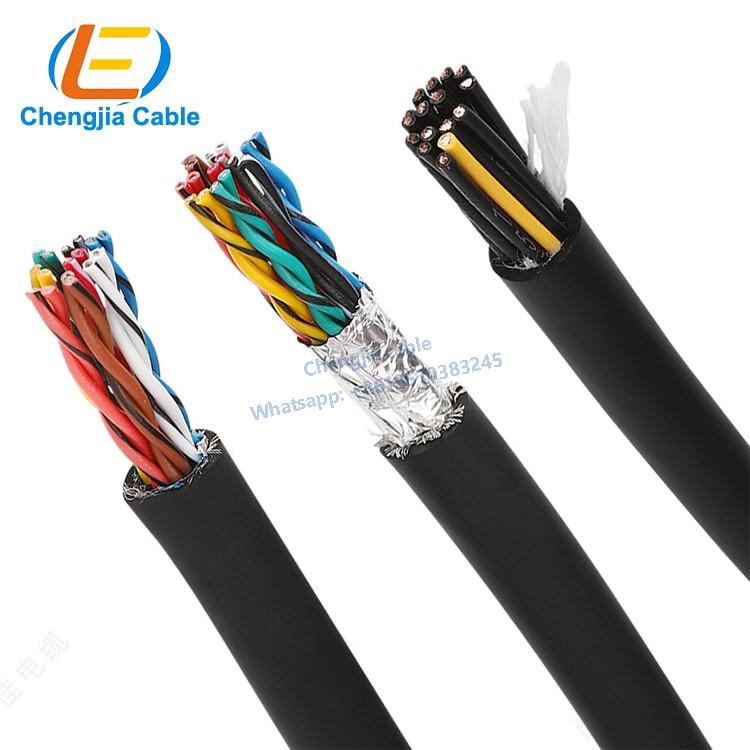

Flexible Shielded Data Transmission cable structure:

Conductor stranding method: Multi-strand ultra-fine copper wire stranding complies with VDE 0295, category 6, column 5 standard

Insulation resistance: minimum 100M Ohm X Km

Filling cotton textile and covering fiber fabric to increase tensile and bending resistance

Temperature range: -30℃ to +80℃

Bending radius: 7.5 x cable diameter

Used for drag chain system service life: 8 million cycles

Compliant with standards: Comply with UL and EU RoHS requirements
