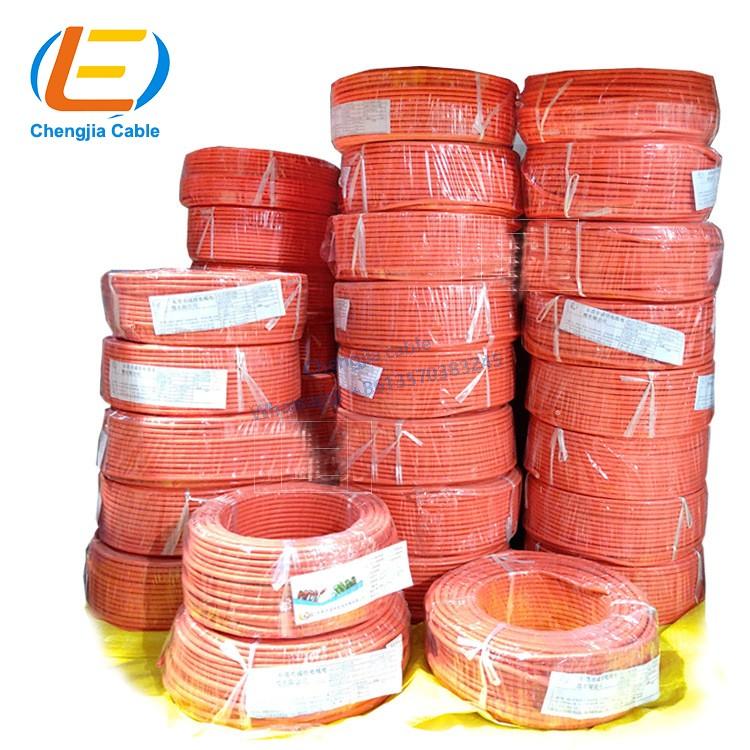

4*6.0mm2 Flexible Motor Inverter Cable

Structure Of Flexible Motor Inverter Cable

Wire: Multiple strands of ultra-fine finely stranded oxygen-free copper wire, in line with VDE0295 CLASS6 standard

Insulation:Flexible PVC insulation

Color code: (optional)

Core structure: center high-strength reinforced core filling, or grouped gap high-strength reinforced core filling

Sheath material: special modified PVC sheath

Sheath color: black, gray, orange

Technical Parameter Of Motor-Inverter-Cable

Rated voltage: <0.5mm3300/300v ≥0.5mm2 300/500v

Test voltage: 2000v

Minimum bending radius

Fixed laying: 6×D

Mobile installation; When the stroke is less than 10 meters, the bending radius is 8×D

                               When the stroke is ≥10 meters, the bending radius is 10×D

Operating temperature: Fixed laying; -25℃ to +70℃  Mobile installation; -15°C to +70°C

Flame retardancy: Comply with IEC60332
