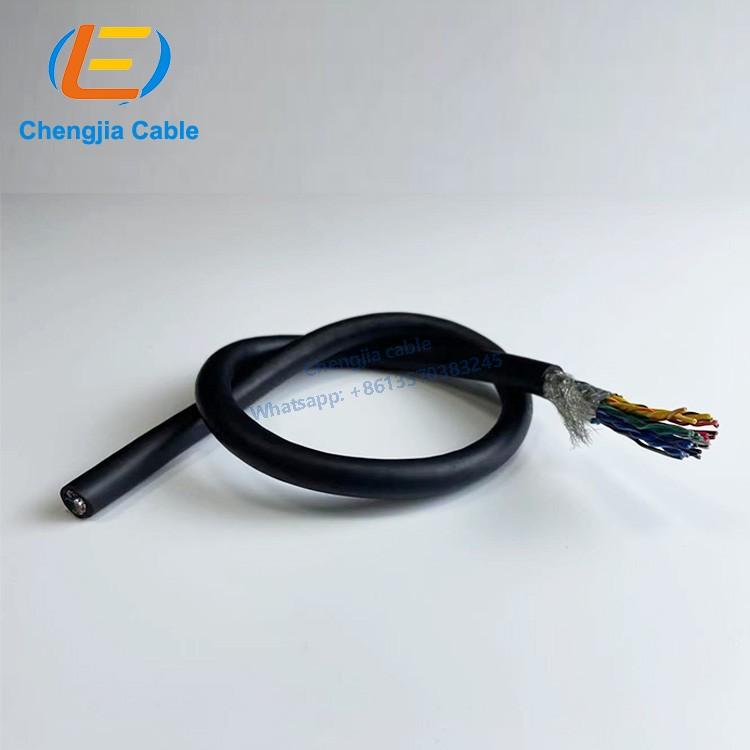

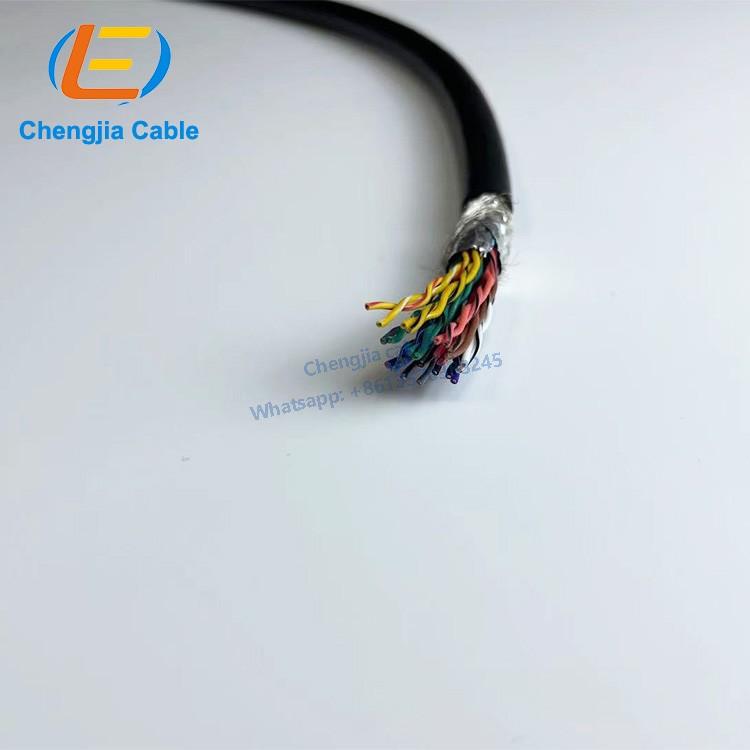

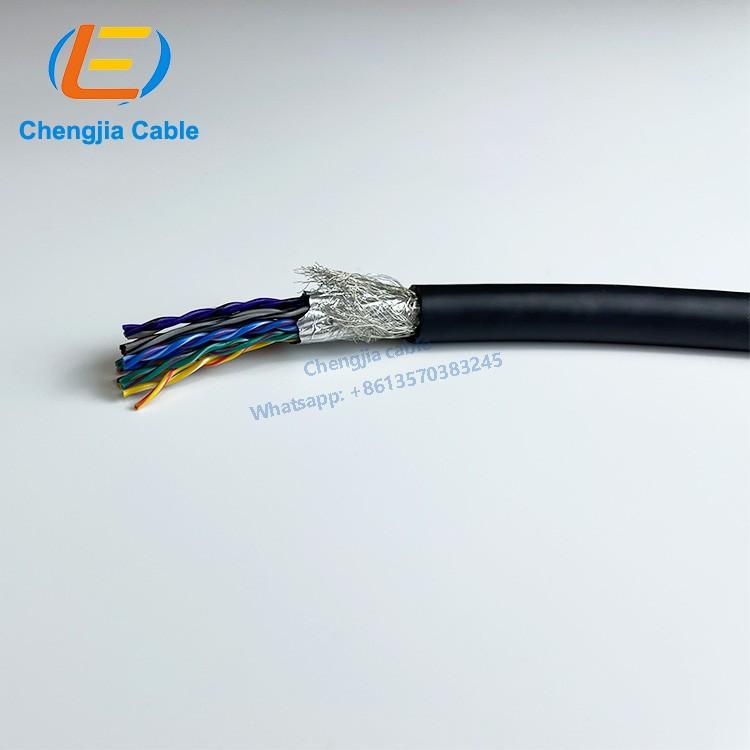

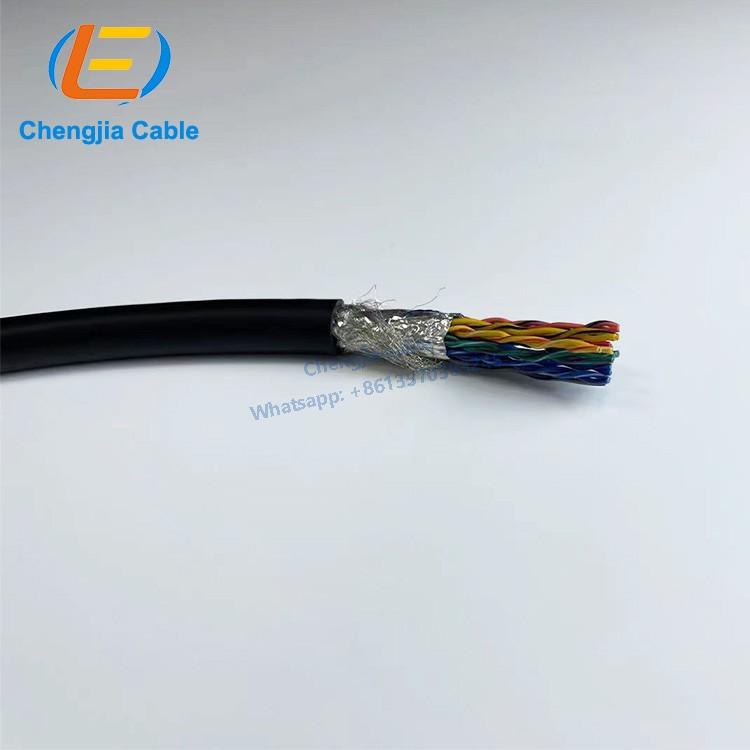

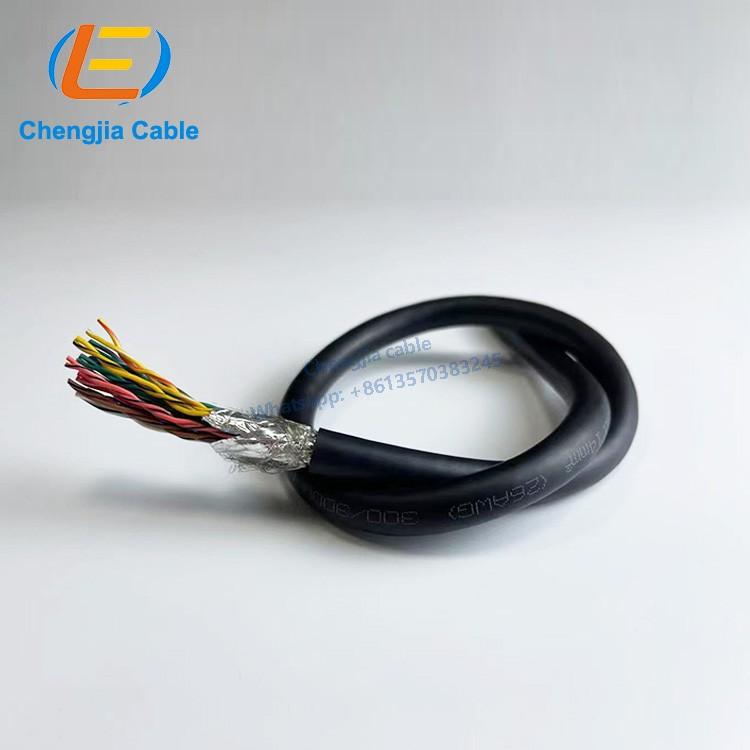

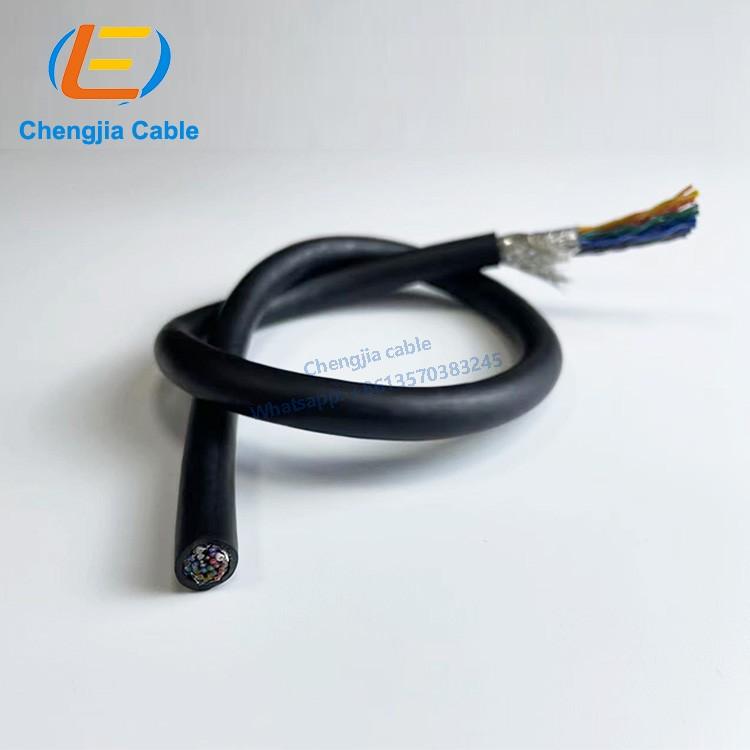

YY06 Flexible PVC Data Transfer Computer Signals Cable

YY06 Flexible PVC Data Transfer Computer Signals Cable

Flexible PVC data transfer computer signals cable is suitable for data and signal transmission in computer systems, electronic control equipment, electronic control equipment, industrial electronic systems, data transmission systems and other occasions. It is especially suitable for use in industrial environments, dry or humid indoors. If the cable is to be installed outdoors, it must be protected against ultraviolet rays. The cable has good flexibility. The sheath is made of oil-resistant PVC, so that the cable has good oil-resistant corrosion performance.

YY06 Flexible PVC Data Transfer Computer Signals Cable Technical Data

●Special PVC sheath with good flexibility

●Temperature range:

Mobile installation -5°C to +70° c

Fixed installation -15°C to +70° c

●Nominal voltage Uo/U 300/300 v

●Test voltage 1500 v

●Insulation resistance:

Minimum 20 MOhm x km

●Minimum bending radius:

Mobile installation 7.5×cable diameter

Fixed installation 6x cable diameter

●Comply with EU RoHS and Reach regulations

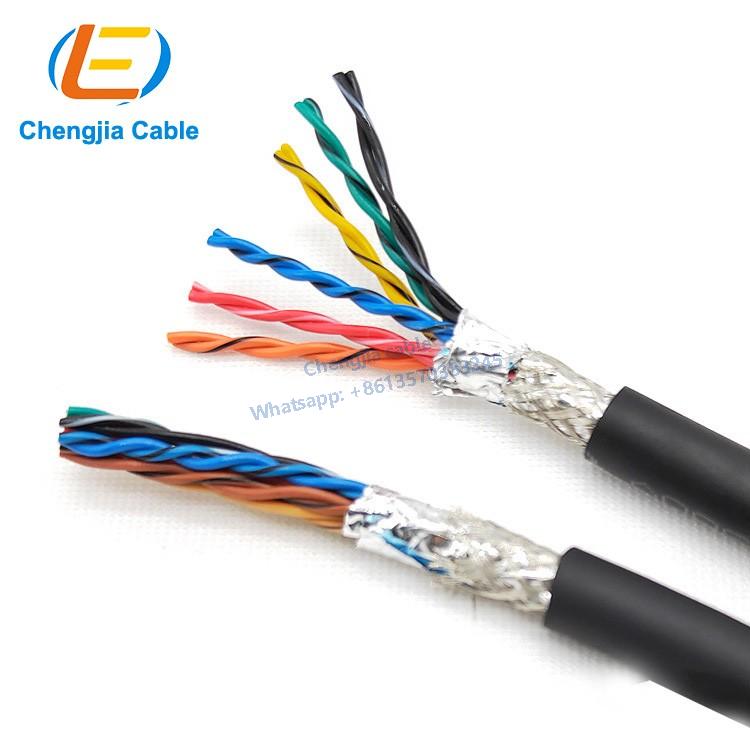

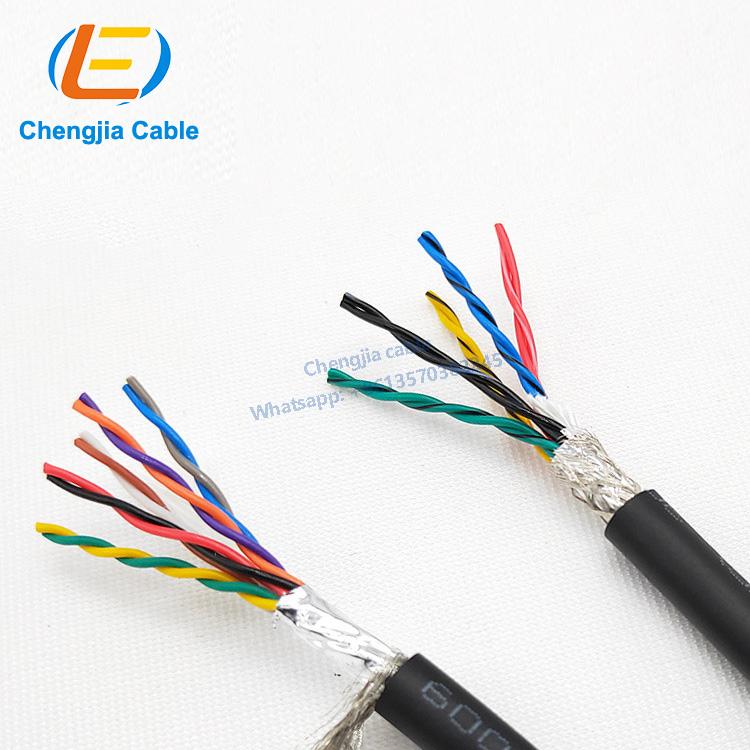

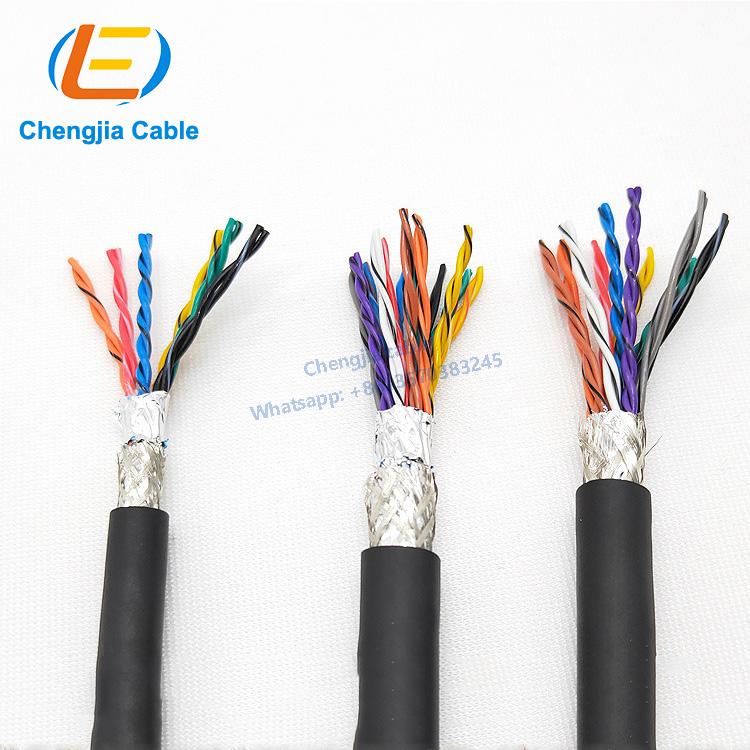

Structure Of Flexible PVC Data Transfer Computer Signals Cable

1. Tinned copper (less than 0.5mm2) or bare copper (0.5mm2 and above) conductor

Thin copper wire, in line with DIN VDE0295 category 6 and IEC 60228 category 6

2. Special PVC insulation

3. Color core wire identification (less than 0.5mm2)

4. Black core wire with continuous white digital code (0.5mm2 and above)

5. The wire core is stranded in layers with the best pitch

6. Improved tinned copper wire braided shield

7. The minimum comprehensive shielding rate is 80%

8. Special PVC outer sheath

9. Black (RAL 9005) matte

NO.	Product Code	Conductors x Cross-sec	Outter Diameter	Sheath Color	20℃ Conductor DC resistance
NO.	Product Code	NO.X mm²	mm	Sheath Color	Ω/km
1	YY06.04.0014	2x2x0.14	5.5	Black	150
2	YY06.06.0014	3x2x0.14	5.6	Black	150
3	YY06.08.0014	4xx2x0.14	6.2	Black	150
4	YY06.10.0014	4x2x0.14	6.8	Black	150
5	YY06.12.0014	6x2x0.14	7.0	Black	150
6	YY06.14.0014	7x2x0.14	7.5	Black	150
7	YY06.16.0014	8x2x0.14	7.8	Black	150
8	YY06.20.0014	10x2x0.14	8.5	Black	150
9	YY06.26.0014	13x2x0.14	9.3	Black	150
10	YY06.04.0020	2x2x0.2	5.6	Black	95
11	YY06.06.0020	3x2x0.2	6.0	Black	95
12	YY06.08.0020	4x2x0.2	6.8	Black	95
13	YY06.10.0020	5x2x0.2	7.2	Black	95
14	YY06.12.0020	6x2x0.2	7.6	Black	95
15	YY06.14.0020	7x2x0.2	8.0	Black	95
16	YY06.16.0020	8x2x0.2	8.5	Black	95
17	YY06.20.0020	10x2x0.2	9.2	Black	95
18	YY06.04.0030	2x2x0.3	6.2	Black	71.2
19	YY06.06.0030	3x2x0.3	6.6	Black	71.2
20	YY06.08.0030	4x2x0.3	7.3	Black	71.2
21	YY06.10.0030	5x2x0.3	7.8	Black	71.2
