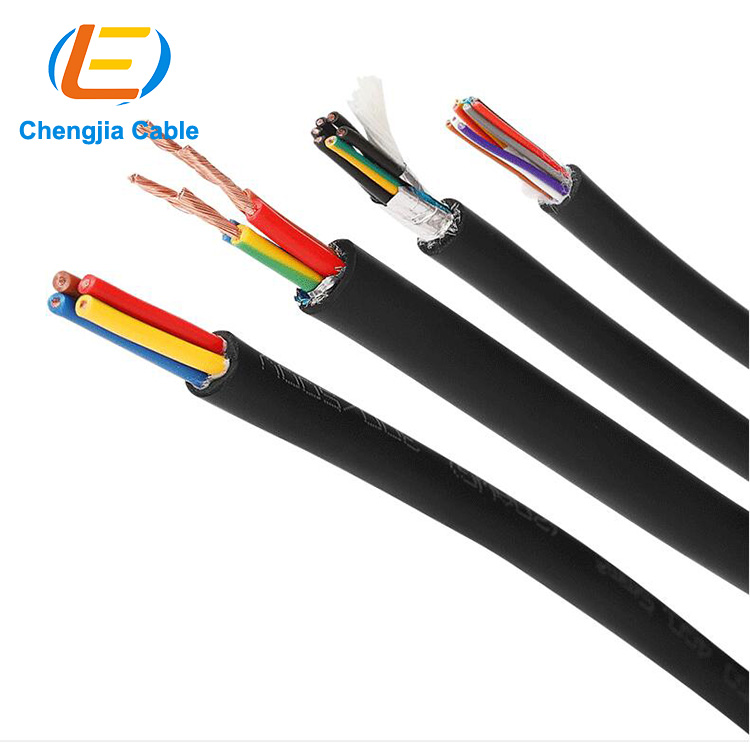

Low -speed flexible data cable with coloured cores are mainly used as control and power transmission systems, which are widely used in sensing technology, computers and equipment control equipment and control engineering; three cores and three cores have green/yellow protection grounding wires, and core wire twisted cable twisted collisions The short distance, the overall copper shield ensures the accurate transmission of data and protects the cable from electromagnetic exemption.
The color of the outer cover is: black, you can choose other colors as needed.

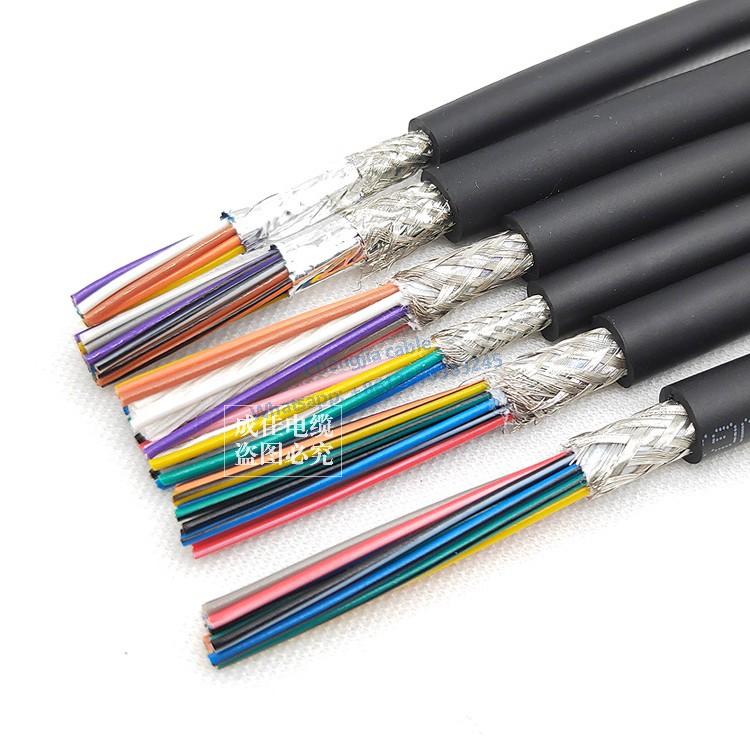

YY02 2 ~ 50 core*0.14/0.2/0.3mm Flexible Shielded Control Cable Braided Multi-core Drag Chain cable Flexible data cable with coloured cores
Low -speed flexible data cable with coloured cores are mainly used as control and power transmission systems, which are widely used in sensing technology, computers and equipment control equipment and control engineering; three cores and three cores have green/yellow protection grounding wires, and core wire twisted cable twisted collisions The short distance, the overall copper shield ensures the accurate transmission of data and protects the cable from electromagnetic exemption.
The color of the outer cover is: black, you can choose other colors as needed.
Technical Parameter

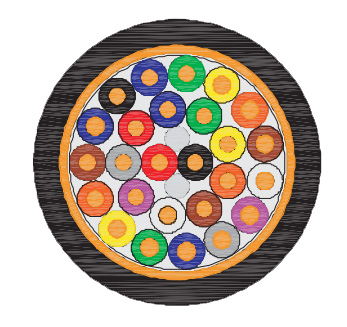

Flexible Shielded Control Cable Braided Multi-core Drag Chain cable Structure
Flexible Shielded Control Cable Braided Multi-core Drag Chain cable Structure
1. Tinned copper (less than 0.5mm2) or bare copper (0.5mm2 and above) conductor thin copper wire, in line with DIN VDE0295 category 6 and IEC 60228 category 6
2. Special PVC insulation
3. Color core wire identification (less than 0.5mm2)
4. Black core wire with continuous white digital code (0.5mm2 and above) The yellow-green ground wire is on the outer layer (3 cores and above)
5. The wire core is stranded in layers with the best pitch
6. Improved tinned copper wire braided shield
7. The minimum comprehensive shielding rate is 80%
8. Special PVC outer sheath9. Black (RAL 9005) matte
