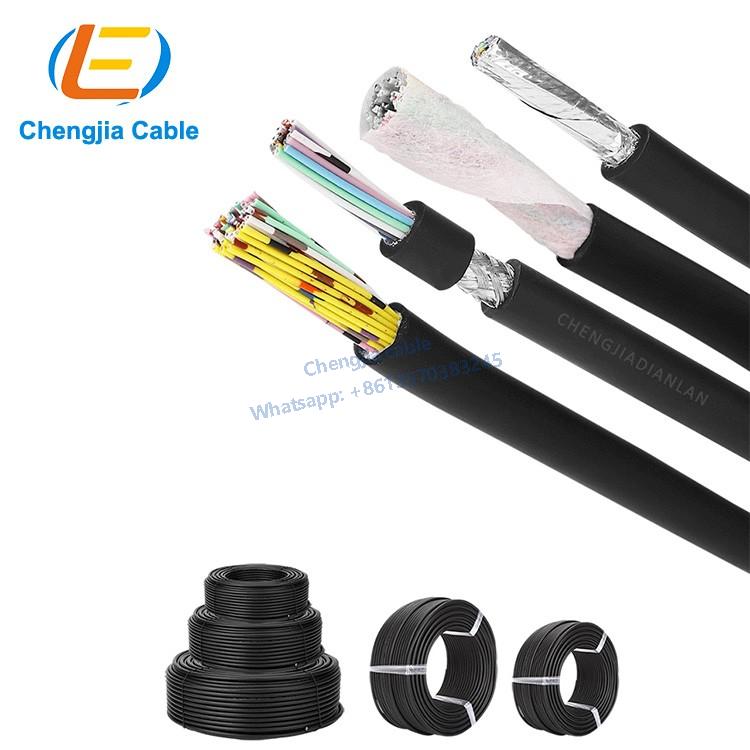

High Flexing Motor Servo and Feedback Cables

High flexing motor servo and feedback cables is suitable for manipulators, woodworking machinery, glass machinery, cutting machinery, ceramic machinery, spraying machinery and other industrial automation equipment. It is an ideal cable for drag chains. This highly flexible cable is used in all areas that require frequent movement and rapid bending. Including all high-speed moving machine parts such as CNC machine tools, robotics and other dry or humid rooms.

Due to its excellent resistance to tearing and abrasion, it is particularly strong, and because it is particularly resistant to oil, especially coolant, this high flexing motor servo and feedback cables is very suitable for machinery, tool manufacturing and steel production in hazardous areas. Very small bending radius, it can be ideally used in drag chain system. Suitable for outdoor installation, resistant to ultraviolet oxidation, ozone and hydrolysis. The tinned copper wire braided shield enables the cable to have strong resistance to external electromagnetic interference and to ensure the stability of the cable system.

Technical Parameter High Flexing Motor Servo and Feedback Cables

Working voltage: 300/500V Test voltage: 2000V

Insulation resistance: ≥20MQ/KM (20°℃)

Minimum bending radius: mobile installation: 7.5 x cable outer diameter

Fixed installation: 4x cable outer diameter

Working temperature: mobile installation: -30°C to 70°C

Fixed installation: -40°C to 80°°C

Comply with VDE0472-804 part B test standard, and IEC60332-1

High Flexing Motor Servo and Feedback Cables Structure

Conductor: bare copper, stranded conductor of multiple thin copper wires, in line with DIN VDE0295 category 6 and IEC60228 category 6 regulations. Insulation: special PVC

Wire core: black wire core, numbered in order with white numbers in accordance with DIN VDE 0293 regulations, insulated wire cores are stranded into a cable with optimal pitch. Shield: tinned copper wire braided shield

Outer sheath: special PUR, particularly strong, tear-resistant, abrasion-resistant and oil-resistant Outer sheath color: gray, black

Particularly oil-resistant, PUR self-extinguishing and flame-retardant, the test me
