YY02 Mechanical Flexible Control Cables is suitable for control, signal, protection and measurement system
Products Description
YY02 Mechanical Flexible Control Cables are used for electrical connection in industrial automation,
complete sets of electromechanical equipment, machine tools and other mechanical equipment,
logistics transmission systems, production lines and other control systems. They are especially
suitable for fixed installations in industrial environments, dry or humid indoors, and can also be
used for non- Mobile installation with continuous reciprocating motion without forced traction.
The black outer sheath has anti-ultraviolet properties and can be installed outdoors in the open,
but direct burial is not allowed. The cable has good flexibility. The sheath is made of oil-resistant
PVC, so that the cable has good oil resistance.
Product Feature
Technical Parameter

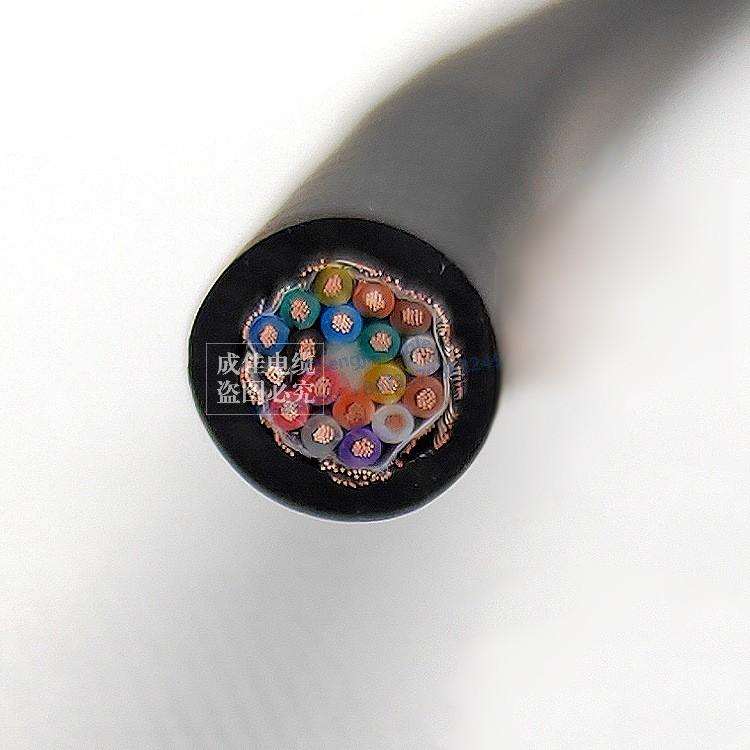

Cable Structure
Control Cable Structure
1. Tinned copper (less than 0.5mm2) or bare copper (0.5mm2 and above) conductor thin copper
wire, in line with DIN VDE0295 category 6 and IEC 60228 category 6
2. Special PVC insulation
3. Color core wire identification (less than 0.5mm2)
4. Black core wire with continuous white digital code (0.5mm2 and above) The yellow-green
ground wire is on the outer layer (3 cores and above)
5. The wire core is stranded in layers with the best pitch
6. Improved tinned copper wire braided shield
7. The minimum comprehensive shielding rate is 80%
8. Special PVC outer sheath
9. Black (RAL 9005) matte
Technical Parameter
Cable Structure
Control Cable Structure
1. Tinned copper (less than 0.5mm2) or bare copper (0.5mm2 and above) conductor thin copper wire, in line with DIN VDE0295 category 6 and IEC 60228 category 62. Special PVC insulation3. Color core wire identification (less than 0.5mm2)4. Black core wire with continuous white digital code (0.5mm2 and above) The yellow-green ground wire is on the outer layer (3 cores and above)5. The wire core is stranded in layers with the best pitch6. Improved tinned copper wire braided shield7. The minimum comprehensive shielding rate is 80%8. Special PVC outer sheath9. Black (RAL 9005) matte
