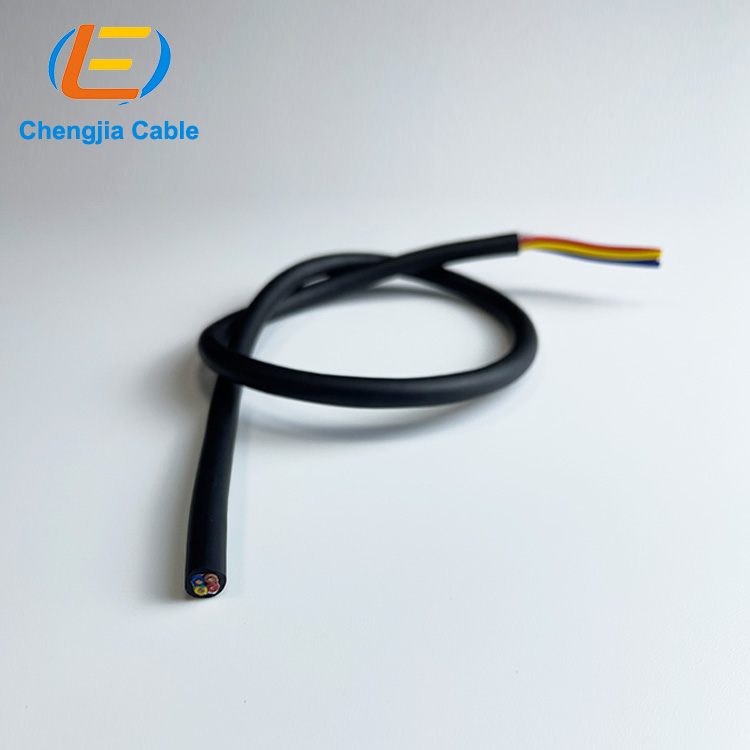

YY07 Flexible Electrical Power Wire RVV Cable

YY07 Flexible Electrical Power Wire RVV Cable are mainly used for control and power transmission systems, and are widely used in sensing technology, computer and equipment control equipment and control engineering; three-core and more than three-core green/yellow protective grounding conductors, core wires twisted into cable strands The pitch is short.

EMAIL

YY07 Flexible Electrical Power Wire RVV Cable Description



YY07 Flexible Electrical Power Wire RVV Cable are mainly used for control and power transmission systems, and are widely used in sensing technology, computer and equipment control equipment and control engineering; three-core and more than three-core green/yellow protective grounding conductors, core wires twisted into cable strands The pitch is short.

Product Feature


YY07 Flexible Electrical Power Wire RVV Cable Technical Parameter


Standard

Comply with UL20276 standard, thin wire diameter design

Conductor

adopts high-quality tinned copper stranded copper wire

Insulation material

Modified PVC

Core structure

Small pitch single stranding

Core recognition

Color core

Outer sheath

Modified PVC mate

Color

black (other colors can be customized)

Bending radius

Mobile installation 7.5×cable diameter

Fixed installation 6x cable diameter

Nominal voltage

Uo/U 300/500 V

Test voltage

2000 V

Application:

It can be used in multi-joint robots, manipulators, CNC machine tools, non-standard automation equipment, servers/motors, drag
chain systems and other fields.

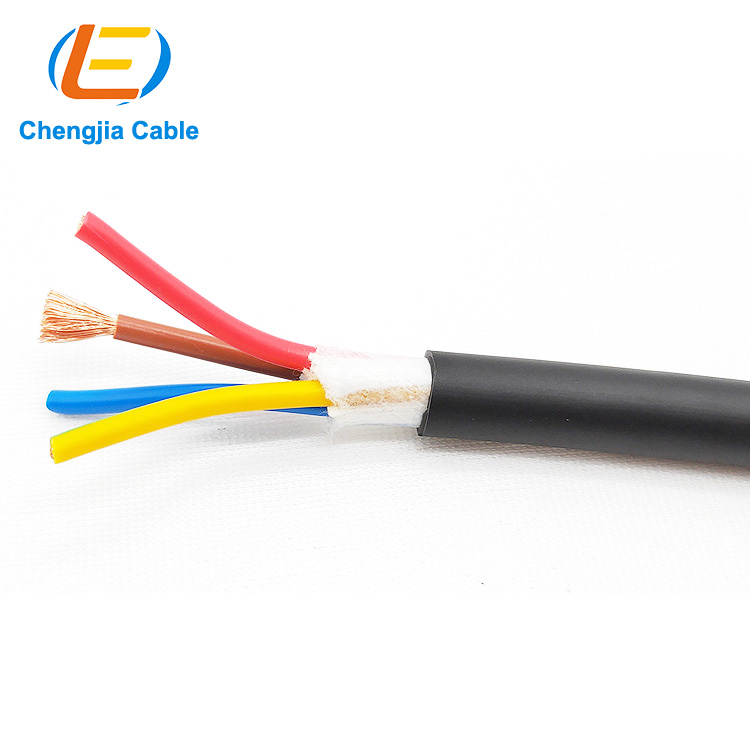

YY07 Flexible Electrical Power Wire RVV Cable Structure

Power Cable Structure

1. Bare copper conductor, thin copper wire Complies with DIN VDE 0295 category 6 and IEC 60228 category 6

2. Special PVC insulation

3. Color core wire identification

4. The wire core is stranded in layers with the best pitch

5. With yellow and green grounding wire (3 cores and above)

6. Special PVC outer sheath 7. Black (RAL 9005) matte


No.

Product Code

Cores Number and cross-sectional area

(NO.Xm㎡)

Approximate outer diameter (mm)

Outer sheath color

20℃  Conductor DC resistance

Ω/km

1

YY07.02.0050

2x0.5

5.6

Black

39

2

YY07.03.0050

3G0.5

6

Black

39

3

YY07.04.0050

4G0.5

6.5

Black

39

4

YY07.02.0075

2x0.75

6

Black

26

5

YY07.03.0075

3G0.75

6.5

Black

26

6

YY07.04.0075

3G0.75

7.2

Black

26

7

YY07.02.0100

2X1.0

6.4

Black

19.5

8

YY07.03.0100

3G1.0

6.9

Black

19.5

9

YY07.04.0100

4G1.0

7.8

Black

19.5

10

YY07.02.0150

2x1.5

7.5

Black

13.3

11

YY07.03.0150

3G1.5

8.2

Black

13.3

12

YY07.04.0150

4G1.5

9

Black

13.3

13

YY07.02.0250

2x2.5

9

Black

7.98

14

YY07.03.0250

3G2.5

9.8

Black

7.98

15

YY07.04.0250

4G2.5

11

Black

7.98

16

YY07.04.00400

4G4.0

12.8

Black

4.95

17

YY07.04.0600

4G6.0

14.4

Black

3.3

MOQ 1 meter, If you need to order PUR outer sheath, MOQ 400 meters

One-stop procurement service provider:

Complete varieties of ordinary, highly flexible, and ultra-high flexible cables

1. Flexible service robot cable: drag chain 50 million times, 3D torsion more than 20 million times;

2. Industrial robot body cable: 3D torsion 20 million times, 50 million times can be customized;

3. Special cable for linear motor: drag chain 50 million times, 100 million times can be ordered;

4. Ultra-high-speed drag chain cable: drag chain 20 million times, refer to German standard, full extrusion hard wire technology;

5. Ultra-high flexible drag chain cable: drag chain 10 million times, refer to Japanese standards, semi-extrusion flexible cord technology;

 6. Highly flexible towline cable: 5~8 million times, refer to Japanese standards, semi-extrusion flexible cord technology;

7. Industrial flexible cable: 2 million low-speed movements, electrical cabinet, servo encoder, IO control wiring;

8. Data bus cable: CC-Link, DeviceNet, Profibus, Cat5e/6a Ethernet cable, etc.;

9. Medical cables: industrial endoscopes, B-ultrasound, medical lifting tables, imaging equipment, sensors, surgical robot cables, etc.;

10. In addition, precision sensor cables can be customized, as well as various high-demand, ultra-fine, chemical-resistant, and high-temperature-resistant special cables.
