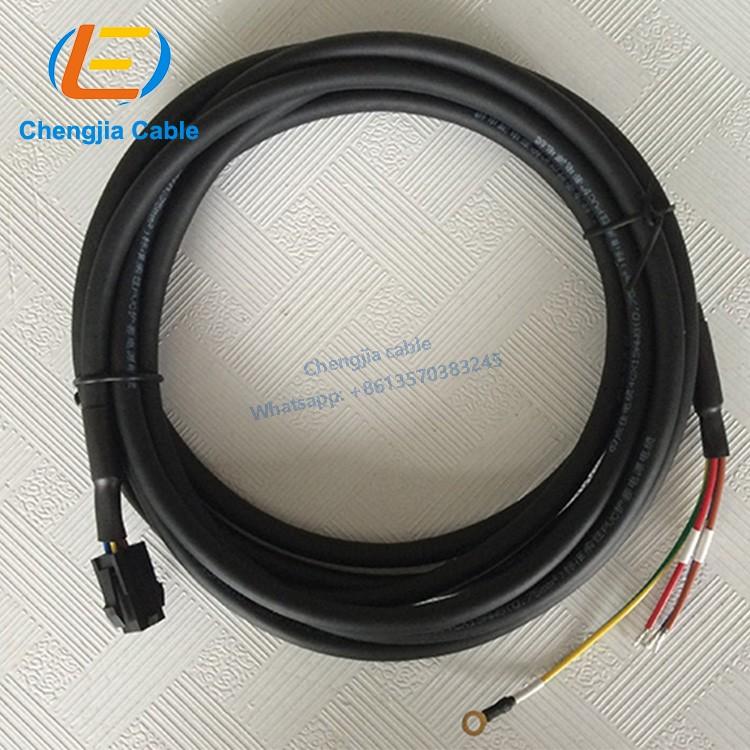

Linear Motors & Actuators Cable Connectors Driver Wire

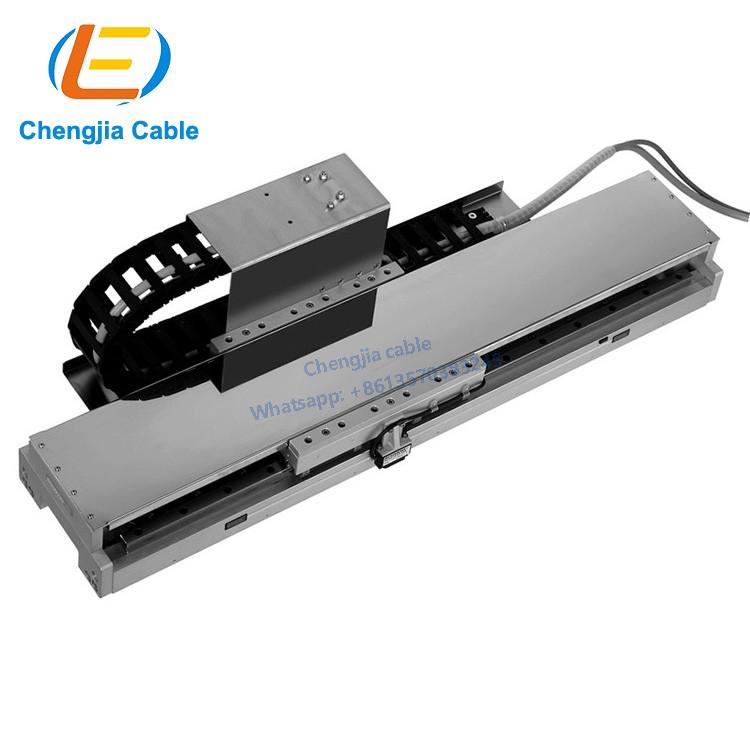

Linear motor, also called linear motor, is a transmission device that directly converts electrical energy into linear motion mechanical energy without any intermediate conversion mechanism. The main application and automation control system are as long-term continuous-running drive motors and devices that need to provide huge linear motion energy in a short time and a short distance.

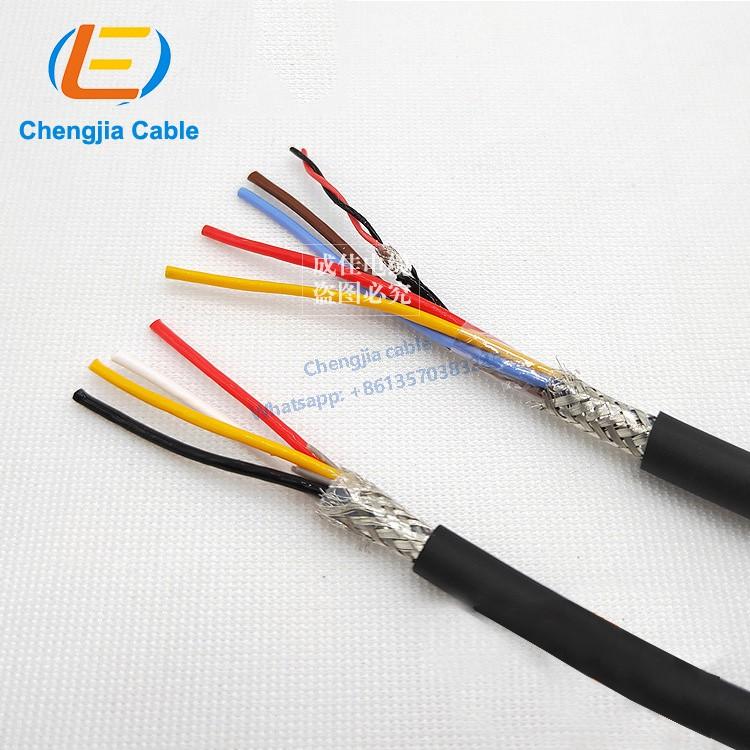

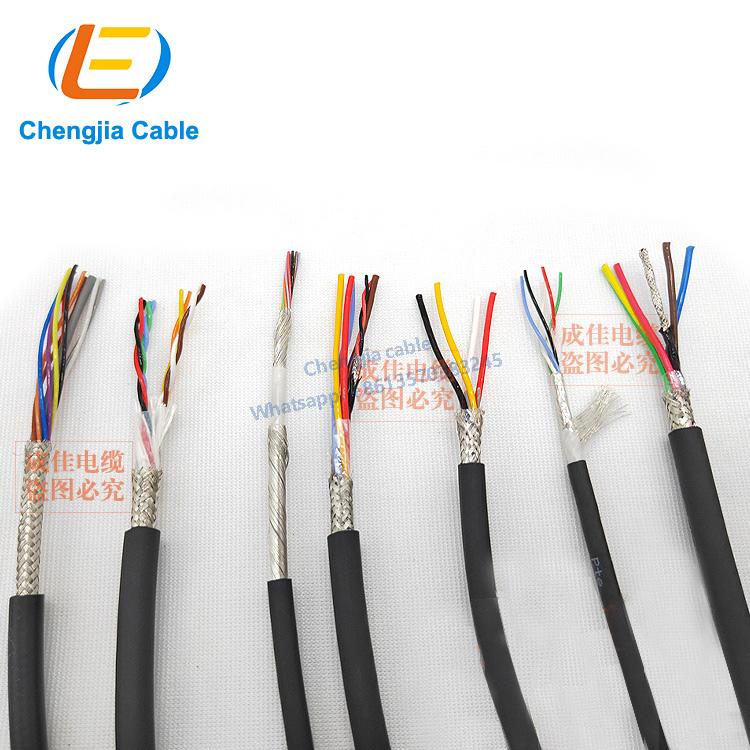

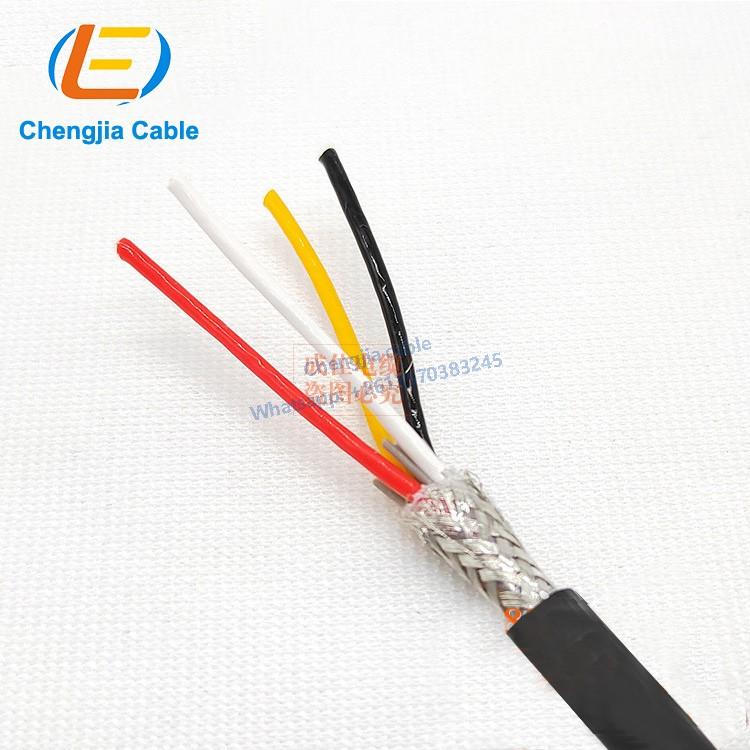

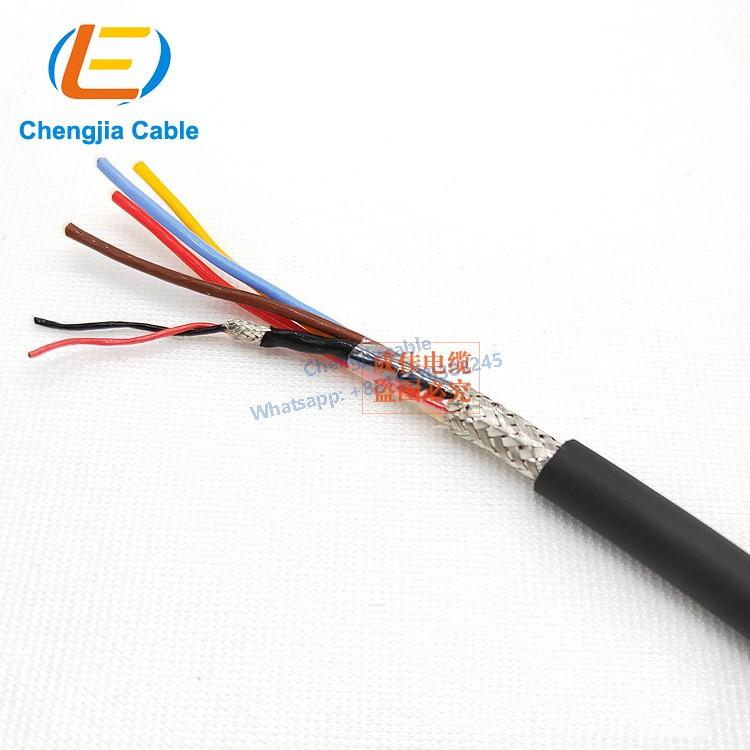

        Chengjia linear motors & actuators cable connectors driver wire  is a super-flexible cable tailored by Calder Cable for the operating characteristics of linear motors, with a two-core twisted pair and individually shielded temperature sensor line. The entire cable jacket is made of super-flexible, abrasion-resistant, cold-resistant, oil-resistant, acid and alkali resistant PUR material, and the core wire insulation is made of wear-resistant, high-temperature resistant fluororesin, which greatly enhances the cable's resistance to tortuosity.

1. The core wire has beautiful colors, distinct colors, abrasion resistance, oil resistance, and folding resistance

2. High-density shielding layer ≥90%, double-layer shielding, multi-layer structure

Specifications：

Features Of Linear Motors & Actuators Cable Connectors Driver Wire :

Conductor：tinned pure oxygen free copper Sheath: Special PUR (Ultra high strength and bending, torsion performance). Insulation：special fluororesin (ultra high strength and bending, torsional properties). Shield: improved tinned copper braid with coverage over 90% . Temperature Range: Mobile installation :-20℃ to +80 ℃ Fixed installation:  -40℃ to+90℃ Nominal Voltage :Uo/U: 300V/300V Insulation Resistance: minimum 100MOhm*km Minimum Bending Radius: Mobile installation: 6* cable diameter Fixed installation: 4* cable diameter Application: for Linear Motor and other long-term high-speed towline, bending and high-strength applications.
