4P*24AWG RVVSP8*0.2mm twisted shielded signal wire

4P*24AWG RVVSP8*0.2mm twisted shielded signal wire

The twisted pair and small pitch of the signal wire core wires can prevent interference between the core wires and the outside;

The outer sheath color is: black, other colors can be customized according to needs

1. Conductor stranding method: multi-strand ultra-fine copper wire stranding meets VDE0295, category 5, column 3 standards

2.Insulation resistance: minimum 100 M Ohm x Km

3. Temperature range: -20°C to +80°C

4. Bending radius: 7.5x cable diameter for drag chain system

5. Service life: fixed installation or 2 million low-speed sports use

6. Compliance with standards: UL and EU RoHS requirements

 Application of the  twisted shielded signal wire

Shielded signal wire can be used in multi-joint robots, manipulators, CNC machine tools, non-standard automation equipment, servers/motors, drag chain systems and other fields.

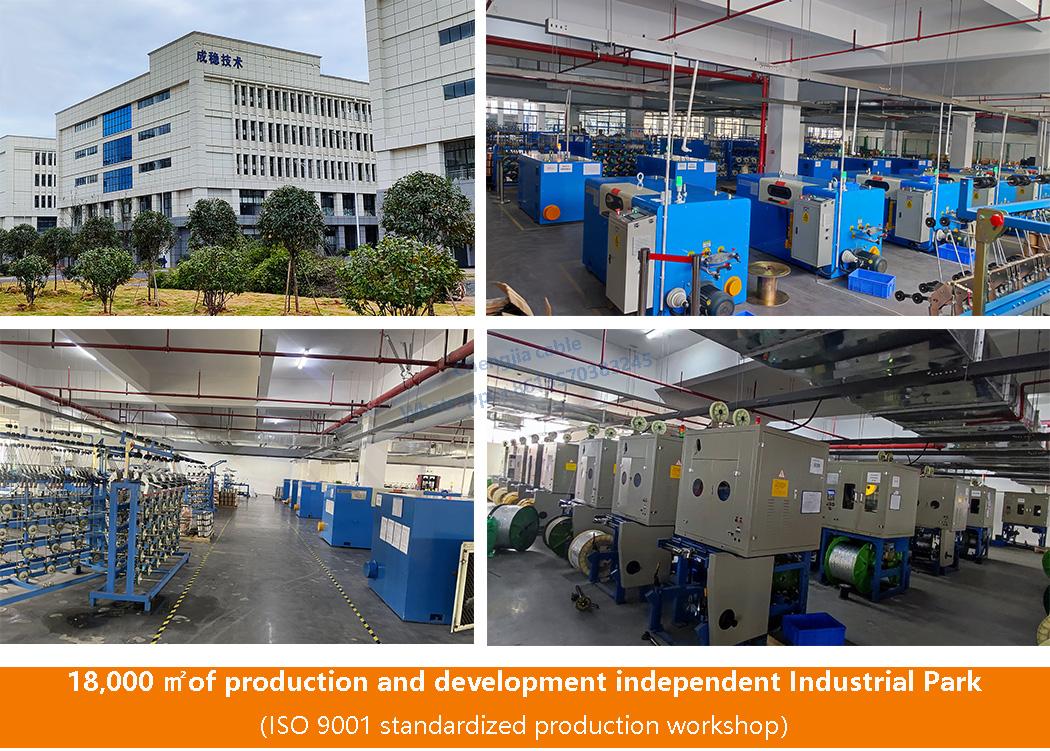

Chengjia Cable was established in 2009, which is an enterprise focusing on the research and development and manufacturing of special flexible cables. The cable R&D team consists of a number of senior engineers who graduated from Harbin Institute of Technology (formerly the School of Electrical Engineering), with more than 20 years of R&D experience. The research and development of high-flexible industrial cables and ultra-fine wires and cables have achieved fruitful results; breaking Europe, the United States, and Japan Enterprise technology is blocked, providing users with cable products comparable to Germany, the United States and Japan, and is generally favored by users.
