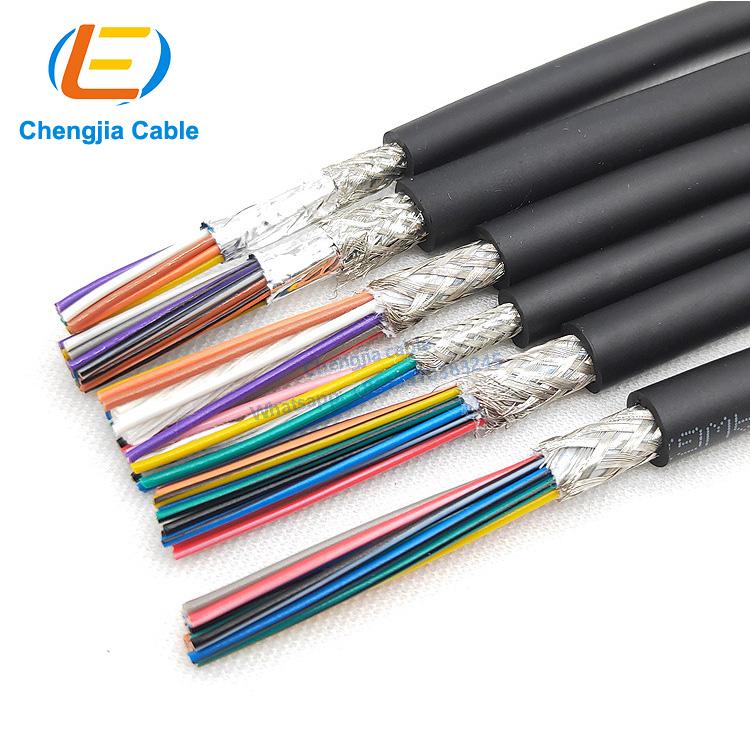

TRVVP shielded control chainflex cable for medium to high-speed motion are used for data and signal transmission within drag chain systems. These cables are utilized in sensing technology, computerized control equipment, ensuring accurate data transmission and protecting the cables from electromagnetic interference with overall copper wire shielding. Ultra-high-speed flexible control cables are commonly employed in automation equipment, robotics, and similar applications.
TRVVP shielded control chainflex cable for medium to high-speed motion are used for data and signal transmission within drag chain systems. These cables are utilized in sensing technology, computerized control equipment, ensuring accurate data transmission and protecting the cables from electromagnetic interference with overall copper wire shielding. Ultra-high-speed flexible control cables are commonly employed in automation equipment, robotics, and similar applications.
Conductors are twisted from ultra-fine copper wires (less than 0.1mm), with conductors above 0.5mm being grouped for stranding.
The cable features a wrapped construction for a soft feel.
Equipped with tinned copper wire braided shielding to eliminate interference.
Under specified installation conditions, the service life can exceed 8 million cycles, suitable for use in medium to high-speed motion drag chains.
TRVVP shielded control chainflex cable mainly used for signal control cables within automation equipment and machine tool drag chains
Technical Parameter
Conductor stranding:
Bare copper conductors, stranded with fine copper wires.
Complies with DIN VDE 0295 class 6 and IEC 60228 class 6.
Color-coded cores.
Outer sheath in matte gray (RAL7001).
Cores are twisted with improved lay-length stratification.
Includes green-yellow grounding conductor (for 3 cores and above).
Technical data for medium to high-speed motion shielded control drag chain cables:
Temperature range:
Mobile installation: -5°C to +70°C
Fixed installation: -15°C to +80°C
Minimum bending radius:
Mobile installation: 7.5 × cable diameter
Fixed installation: 6 × cable diameter
Service life in drag chain systems:
Above 8 million cycles
Standard voltage:
Uo/U 300/300V
Compliance:
Complies with EU RoHS and REACH regulations.
YY502 TRVVP shielded control chainflex cable (Color Core) ( 5 million times reliability tests for drag chain) | ||||
No. | Product Code | Cores Number and cross-sectional area | Approximate outer diameter （mm) | Outer sheath color |
(NO.Xm㎡) | ||||
1 | YY502.03.0014 | 3x0.14 | 4.2 | Black |
2 | YY502.04.0014 | . 4x0.14 | 4.5 | Black |
3 | YY502.06.0014 | 6x0.14 | 5.2 | Black |
4 | YY502.08.0014 | 8x0.14 | 6.0 | Black |
5 | YY502.10.0014 | 10x0.14 | 6.8 | Black |
6 | YY502.12.0014 | 12x0.14 | 6.5 | Black |
7 | YY502.16.0014 | 16x0.14 | 7.2 | Black |
8 | YY502.20.0014 | 20x0.14 | 7.8 | Black |
9 | YY502.26.0014 | 26x0.14 | 9.0 | Black |
10 | YY502.02.0020 | 2x0.2 | 4.4 | Black |
11 | YY502.03.0020 | 3x0.2 | 4.6 | Black |
12 | YY502.04.0020 | 4x0.2 | 4.9 | Black |
13 | YY502.05.0020 | 5x0.2 | 5.2 | Black |
14 | YY502.06.0020 | 6x0.2 | 5.6 | Black |
15 | YY502.08.0020 | 8x0.2 | 6.5 | Black |
16 | YY502.10.0020 | 10x0.2 | 7.4 | Black |
17 | YY502.12.0020 | 12x0.2 | 7.0 | Black |
18 | YY502.16.0020 | 16x0.2 | 7.8 | Black |
19 | YY502.20.0020 | 20x0.2 | 8.5 | Black |
20 | YY502.26.0020 | 26x0.2 | 9.5 | Black |
21 | YY502.30.0020 | 30x0.2 | 9.8 | Black |
22 | YY502.02.0030 | 2x0.3 | 4.6 | Black |
23 | YY502.03.0030 | 3x0.3 | 4.8 | Black |
24 | YY502.04.0030 | 4x0.3 | 5.1 | Black |
25 | YY502.05.0030 | 5x0.3 | 5.5 | Black |
26 | YY502.06.0030 | 6x0.3 | 5.8 | Black |
27 | YY502.08.0030 | 8x0.3 | 6.8 | Black |
28 | YY502.10.0030 | 10x0.3 | 7.8 | Black |
29 | YY502.12.0030 | 12x0.3 | 7.4 | Black |
30 | YY502.16.0030 | 16x0.3 | 8.2 | Black |
31 | YY502.20.0030 | 20x0.3 | 9.0 | Black |
