Exhibits good abrasion resistance, moderate oil resistance, and excellent high and low temperature performance.
Under specified installation conditions, can withstand 5-8 million cycles, suitable for use in medium-speed motion drag chains."
high-speed motion pvc flexible cable for automation equipment signal control, sensors, proximity switches, and similar devices
● The high-speed motion pvc flexible cable adopts a tape-wrapping structure and utilizes optimized fine conductors, providing a soft touch.
● Equipped with tinned copper wire braided shielding to effectively eliminate interference.
● Mainly used for power transmission cables within drag chains in various automation equipment, machine tools, and servo motors.
● Medium oil resistance and good wear resistance.
● Under standard installation and usage conditions, the service life can exceed 5 million cycles, suitable for use in medium-speed motion drag chains.
Product Feature
● Special PVC sheath, highly flexible
●Temperature range: Mobile installation: -5°C to +70°C
Fixed installation: -15°C to +80°C
● Nominal voltage Uo/U: 300/500V
●Test voltage: 2000V
●Insulation resistance: Minimum 20 MOhmxkm
● Minimum bending radius: Mobile installation: 7.5 x cable diameter
Fixed installation: 6 x cable diameter
●Complies with EU RoHS and Reach regulations.
YY02 FLEXIBLE CONTROL CABLE WITH SHIELDED (COLOR CORE)
Suitable for Fixed Installations and Flexible Applications | ||||
No. | Product Code | Cores Number and cross-sectional area | Approximate outer diameter （mm) | Outer sheath color |
(NO.Xm㎡) | ||||
1 | YY02.02.0014 | 2x0.14 | 4 | Black |
2 | YY02.03.0014 | 3x0.14 | 4.2 | Black |
3 | YY02.04.0014 | 4x0.14 | 4.5 | Black |
4 | YY02.05.0014 | 5x0.14 | 4.8 | Black |
5 | YY02.06.0014 | 6x0.14 | 5.2 | Black |
6 | YY02.08.0014 | 8x0.14 | 5.5 | Black |
7 | YY02.09.0014 | 9x0.14 | 6 | Black |
8 | YY02.10.0014 | 10x0.14 | 6.4 | Black |
9 | YY02.12.0014 | 12x0.14 | 6.5 | Black |
10 | YY02.16.0014 | 16x0.14 | 7.2 | Black |
11 | YY02.20.0014 | 20x0.14 | 7.8 | Black |
12 | YY02.26.0014 | 26x0.14 | 8.8 | Black |
13 | YY02.02.0020 | 2x0.2 | 4.4 | Black |
14 | YY02.03.0020 | 3x0.2 | 4.6 | Black |
15 | YY02.04.0020 | 4x0.2 | 4.9 | Black |
16 | YY02.05.0020 | 5x0.2 | 5.2 | Black |
17 | YY02.06.0020 | 6x0.2 | 5.6 | Black |
18 | YY02.08.0020 | 8x0.2 | 6 | Black |
19 | YY02.10.0020 | 10x0.2 | 6.8 | Black |
20 | YY02.12.0020 | 12x0.2 | 7 | Black |
21 | YY02.16.0020 | 16x0.2 | 7.6 | Black |
22 | YY02.20.0020 | 20x0.2 | 8.5 | Black |
23 | YY02.02.0030 | 2x0.3 | 4.6 | Black |
24 | YY02.03.0030 | 3x0.3 | 4.8 | Black |
25 | YY02.04.0030 | 4x0.3 | 5.1 | Black |
26 | YY02.05.0030 | 5x0.3 | 5.5 | Black |
27 | YY02.06.0030 | 6x0.3 | 6 | Black |
28 | YY02.08.0030 | 8x0.3 | 6.4 | Black |
29 | YY02.10.0030 | 10x0.3 | 7.2 | Black |
30 | YY02.12.0030 | 12x0.3 | 7.5 | Black |
31 | YY02.16.0030 | 16x0.3 | 8.4 | Black |
32 | YY02.20.0030 | 20x0.3 | 9 | Black |
33 | YY02.24.0030 | 24x0.3 | 10 | Black |
34 | YY02.26.0030 | 26x0.3 | 10.2 | Black |
35 | YY02.30.0030 | 30x0.3 | 10.5 | Black |
The MOQ for the above cable is one roll (100 M). If the cable with PUR sheath, the MOQ is 400 meters
● Bare copper conductor, fine copper wire
Complies with DIN VDE 0295 class 6 and IEC 60228 class 6
● Special PVC insulation
● Color-coded core identification
● Optimal lay-up of stranded cores
● Yellow-green grounding wire (for 3 cores and above)

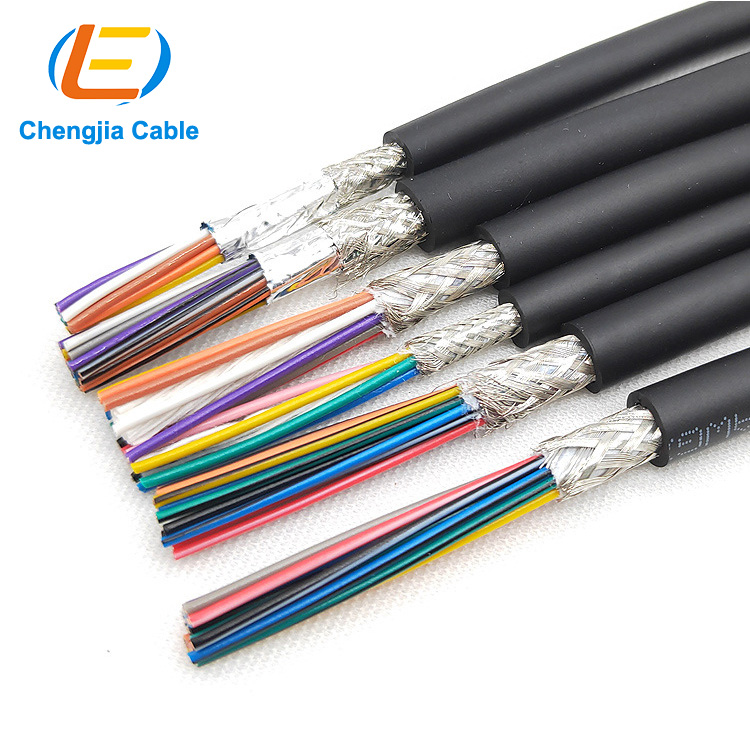

● Improved tinned copper wire braided shielding
● Minimum coverage rate of 80%
● Special PVC outer sheath
● Black color (RAL9005), matte finish.
