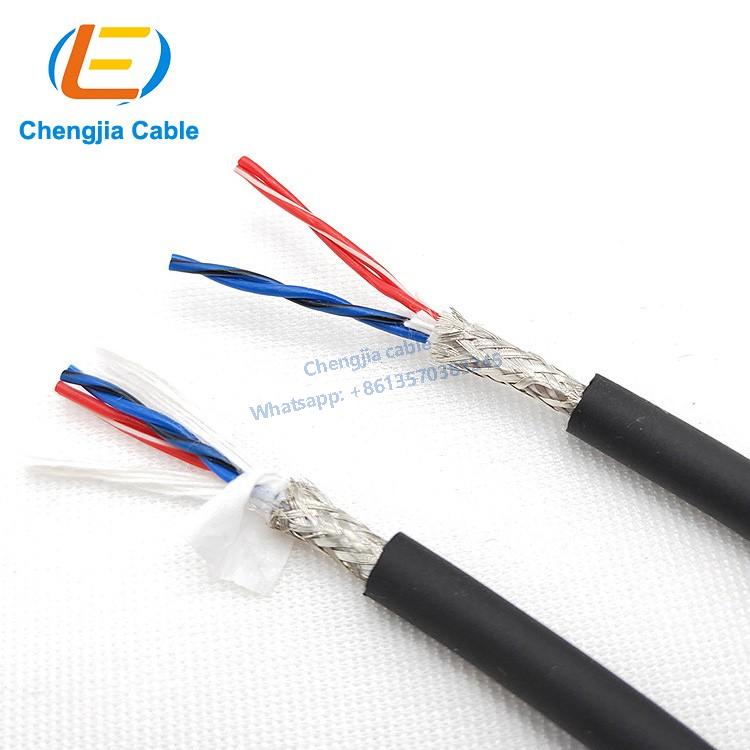

5-core/6-core/8-core 0.14/0.2/0.3/0.5 mm TRVVSP cable shielded twisted pair data transmission

Medium and high speed motion twisted pair shielded data transmission cable can transmit analog digital signals in devices with control processors, or as a connecting line between instruments and control equipment, it is suitable for low power consumption and uninterrupted data transmission. The shield layer uses tinned copper wire to reduce oxidation, and is wrapped with aluminum foil, with a coverage rate of up to 85%, which effectively reduces electromagnetic interference during use. This product is suitable for medium and high speed 6 million to 8 million times drag chain movement environment.

The outer sheath color is: black, other colors can be selected as needed.

Tinned copper conductor, fine copper wire twisting.

Conforms to DIN VDE0295 Class 6 and IEC 60228 Class 6.

Colored core identification

Outer sheath black (RAL 9005) matte

The core is twisted in layers with improved pitch

Improved tinned copper wire braided shielding

Technical data of TRVVSP cable shielded twisted pair data transmission:

Temperature range:

Mobile installation: -5℃ to +70℃

Fixed installation: -15℃ to +80℃

Minimum bending radius:

Mobile installation 7.5×cable diameter

Fixed installation 6×cable diameter

Service life for drag chain system:

More than 8 million cycles

Standard voltage:

Uo/U 300/300V

• High-flexibility PVC material for low-speed motion cables, double-twisted shielded, and data transmission cables.

• Conductors are twisted from 0.1mm fine copper wires, featuring a wrapped structure for flexibility and resistance to bending.

• Pairs of cores are twisted with varying pitches to facilitate signal transmission and prevent crosstalk interference.

• Equipped with a shield of tinned copper braid to eliminate interference.

• Primarily used for signal transmission in servo encoders, controllers, etc.

• Moderate oil resistance, with good abrasion resistance and high-low temperature performance.

• Under specified installation conditions, the service life can exceed 8 million cycles. Suitable for use in medium-speed motion drag chains.
