YY01 Unshielded Low Capacitance VFD Shielded Power Cable Multiconductor Cable Flexible Power and Control Cable are suitable for data and signal transmission on computer systems, electronic control devices, industrial electronic systems, data transmission systems and other occasions. It is especially suitable for dry or humid rooms in the industrial environment. If the cable is installed in the outdoor exposure, it must be protected by UV protection. The protective cover uses oil -resistant PVC, so that the cable has good oil -resistant corrosion properties

Temperature range:

Mobile installation: -5 ℃ to+70 ℃

Fixed installation: -15 ℃ to+70 ℃

Minimum bending radius:

Mobile installation 7.5 × cable diameter

Fixed installation 6 × cable diameter

Used for the use of the drag chain system:

3 million cycles or above

Standard Voltage:

UO/U 300/500V

Standards compliant:

Comply with EU ROHS, Reach regulations requirements

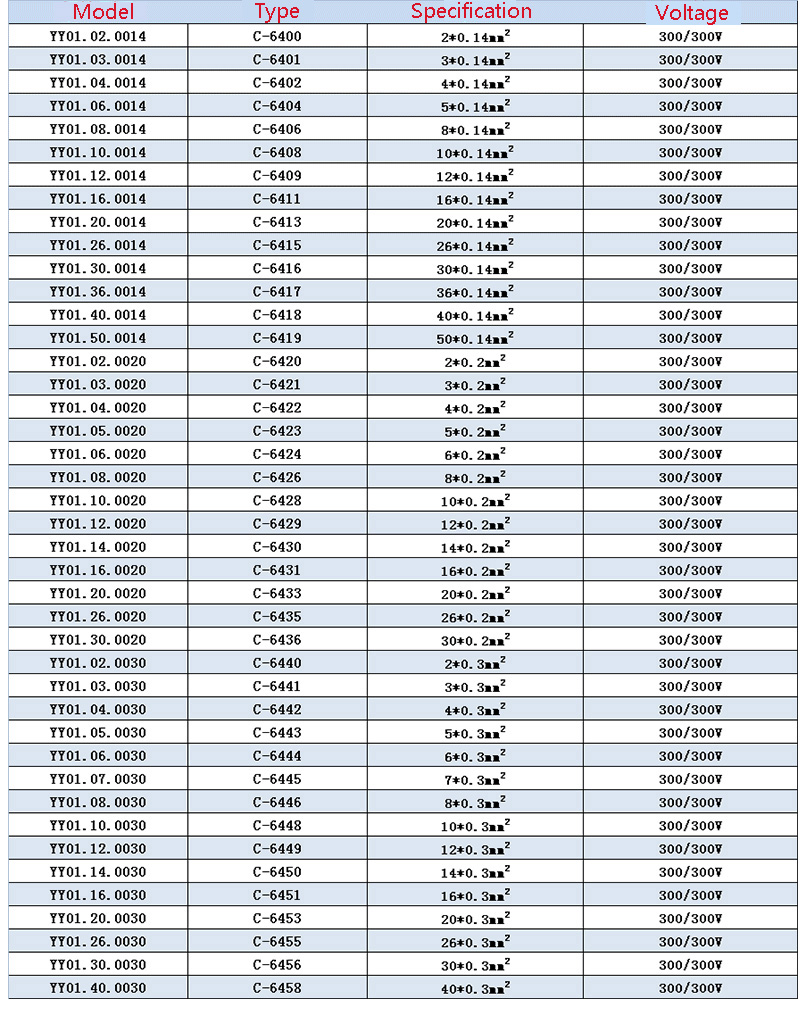

Technical Parameter

Standard		Comply with UL20276 standard, thin wire diameter design
Conductor		adopts high-quality tinned copper stranded copper wire
Insulation material		Modified PVC
Core structure		Small pitch single stranding
Core recognition		Below 0.5m㎡ is marked with colored core wires; 0.5m㎡ above, a yellow-green ground wire + black core wire with white numbers
Outer sheath		Modified PVC mate
Color		black (other colors can be customized)
Bending radius		Move in drag chain is more than 7.5 x d, non-tow chain is moved more than 6 x d, fixed laying is more than 5 x d
Movement speed:		fixed or low-speed movement, less than 0.3 m/s
Travel distance		Fixedly laid, less than 30 meters, and the signal is attenuated if it is too long.
Nominal voltage		Uo/U 300/300 V
Test voltage		1500 V
Application:		Suitable for various non-standard automated production equipment such as CNC machine tools, industrial robots, servo drives, woodworking machinery, mask machines, manipulators, dispensing machines, laser equipment, stamping lines, logistics automation, ceramic production equipment, etc., which can withstand long-term acceleration, Deceleration, tensile and compressive stress, and high-speed periodic bending, and always maintain high stability.

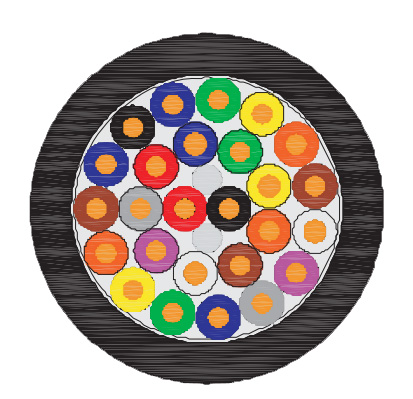

Power and Control Cable Structure

Power and Control Cable Structure

1. Tinned copper conductor, thin copper wire

2. Comply with DINVDE 0295 category 6 and IEC 60228 category 6

3. Special PVC insulation

4. Color core wire identification

5. The wire core is stranded in layers with the best pitch

6. Special PVC outer sheath

7. Black (RAL 9005) matte
