YY502 Control drag chain cable shielded high flexibility servo flexible power control cables

YY502 Control drag chain cable shielded high flexibility servo flexible power control cables

YY502 Control drag chain cable shielded high flexibility servo flexible power control cables is suitable for the installation of continuous reciprocating motion, especially the frequent bending occasions in the industrial environment, such as the drag chain of modern mechanical standard components and the logistics system, control system, mechanical automation system, etc. Indoor and outdoor environment requirements for CNC machine tools, electronic equipment, metal stamping, wood and stone machinery, glass and door and window machinery, injection molding machine manipulators, construction machinery, heavy machinery factories, automobile manufacturing, lifting and transportation equipment, automated

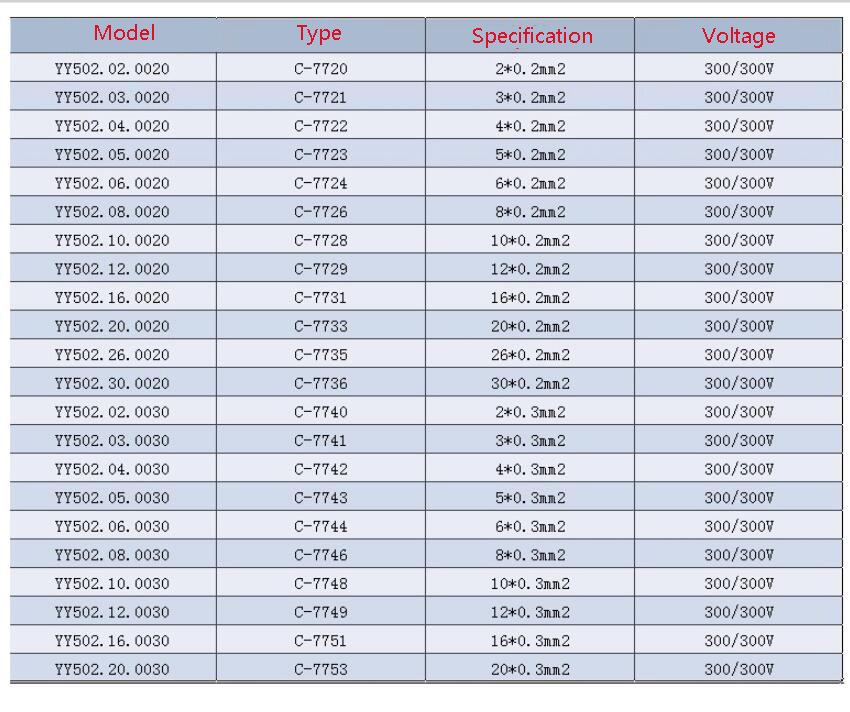

Technical Parameter

Cable Structure

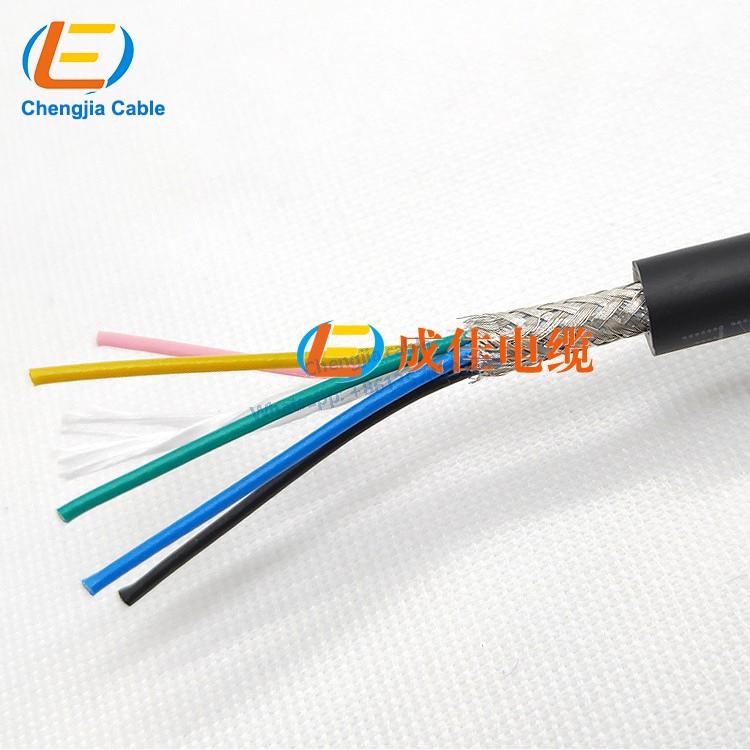

Control Cable Structure

1. Tinned copper (less than 0.5m㎡) or bare copper (0.5m㎡ and above) conductor thin copper wire, in line with DIN VDE 0295 category 6 and IEC60228 Class 6

2. Special PVC insulation

3. Color core wire identification (less than 0.5m㎡)

4. Black core wire, with continuous white digital code (0.5m㎡ and above), yellow-green ground wire on the outer layer (3 core and above)

5. The wire core is stranded in layers with the best pitch

6. Improved tinned copper wire braided shield

7. The minimum coverage rate is 80%

8. Special PVC outer sheath

9. Black (RAL 9005) matte

Company Profile

 Chengjia Wire and Cable Co., Ltd., established in 2009, specializes in the development and manufacturing of high-end special wire and cable. Use the best raw material & Provide the best service, so as to guarantee the cables’stable performance under longtime extremely harsh working conditions.   Chengjia offers our customers the highest quality products, which complys with UL ,CE,TUV,3C  Certifications and our factory successfully obtained ISO 9001:2000.

FAQ

Q Are you a manufacturer or a trading company?

A We are a manufacturer,we can control your order from the first beginning to the last.Welcome to visit us.We’ll pick you up in Guangzhou.

Q What's your payment terms?A By T/T 30% in advance ; Balance 70% before shipment. Now you can pay through Alibaba company to our Alibaba sub-account. However, the terms can be negotiated according to quantity.

Q l didn't find my needed cable in the page. A Dear Friend, If you don't find the cable you need, please contact us. Q What 's your delivery time?A Usually, we can arrange the shipment within 3-5 days if in stock. Or it takes about 10- 35 days for normal orders.

Q What is your MOQ?

A Normally, 500 meters can be accepted. For special cable the minimum order quantity will be negotiated. Q How can l get a sample to check your quality?

A We are honored to offer you samples. Sample is free, you only need to pay for the shipment. Waiting for your cooperation.
