YY1001 PVC Flexible Control Cables Customized For Connection Wire

YY1001 PVC Flexible Control Cables Customized For Connection Wire

YY1001 PVC Flexible Control Cables Customized For Connection Wire is suitable for installation under continuous reciprocating motion, especially the frequent bending occasions under the industrial environment, the drag chain of modern machinery standard components and the logistics system, operating system, mechanical automation system and other CNC machine tools, electronic equipment, metal stamping, wood and stone Machinery, glass and door and window machinery, injection molding machines, manipulators, robots, construction machinery, heavy machinery factories, automobile manufacturing, lifting and transportation equipment, automated warehouses, docks, fire trucks and other indoor and outdoor environments

YY1001 PVC Flexible Control Cables Customized For Connection Wire Feature

YY1001 PVC Flexible Control Cables Customized For Connection Wire Technical Parameter

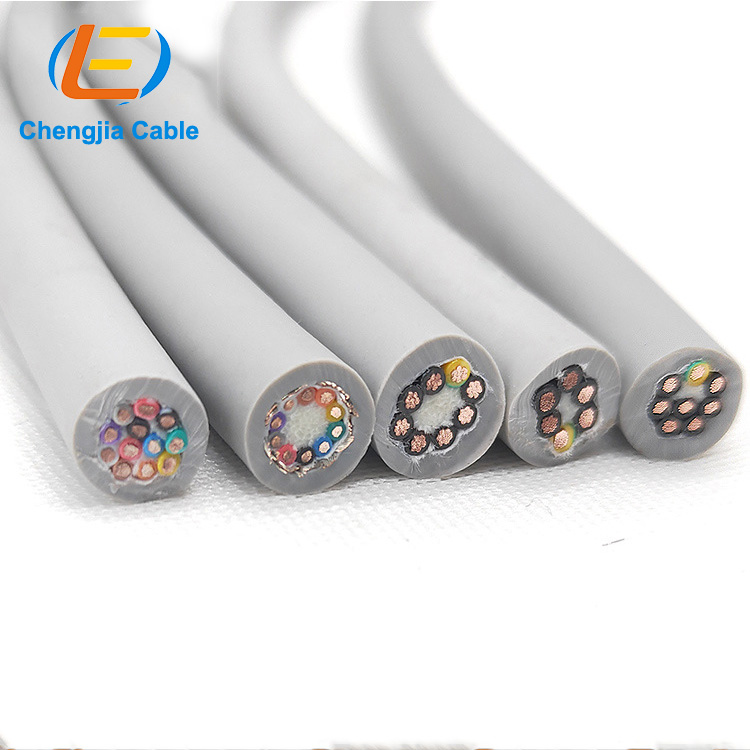

YY1001 PVC Flexible Control Cables Customized For Connection Wire Structure

YY1001 PVC Flexible Control Cables Customized For Connection Wire Structure

1. Tinned copper conductor, ultra-fine copper wire Complies with DIN VDE 0295 category 6 and IEC 60228 category 6

2. Special PVC insulation

3. Color core wire identification

4. The wire core adopts the best pitch layered and twisted special PVC outer sheath

5. Gray (RAL 7001) matte

<td colspan="1" rowspan="1" style="box-sizing: content-box; margin: 0px; padding: 0px; font-style: inherit

No.	Product Code	Cores Number and cross-sectional area (NO.Xm㎡)	Approximate outer diameter （mm)	Outer sheath color	20℃  Conductor DC resistance Ω/km
1	YY1001.02.0020	2x0.2	4.4	Gray	95
2	YY1001.03.0020	3x0.2	4.6	Gray	95
3	YY1001.04.0020	4x0.2	5.0	Gray	95
4	YY1001.05.0020	5x0.2	5.2	Gray	95
5	YY1001.06.0020	6x0.2	5.6	Gray	95
6	YY1001.08.0020	8x0.2	6.4	Gray	95
7	YY1001.10.0020	10x0.2	7.2	Gray	95
8	YY1001.12.0020	12x0.2	7.0	Gray	95
9	YY1001.16.0020	16x0.2	7.5	Gray	95
10	YY1001.20.0020	20x0.2	8.2	Gray	95
11	YY1001.02.0030	2x0.3	4.6	Gray	71.2
12	YY1001.03.0030	3x0.3	4.8	Gray	71.2
13	YY1001.04.0030	4x0.3	5.2	Gray	71.2
14	YY1001.05.0030	5x0.3	5.6	Gray	71.2
15	YY1001.06.0030	6x0.3	6.0	Gray	71.2
16	YY1001.08.0030	8x0.3	6.8	Gray	71.2
17	YY1001.10.0030	10x0.3	7.6	Gray	71.2
18	YY1001.12.0030	12x0.3	7.4	Gray	71.2
19	YY1001.16.0030	16x0.3	8.0	Gray	71.2
