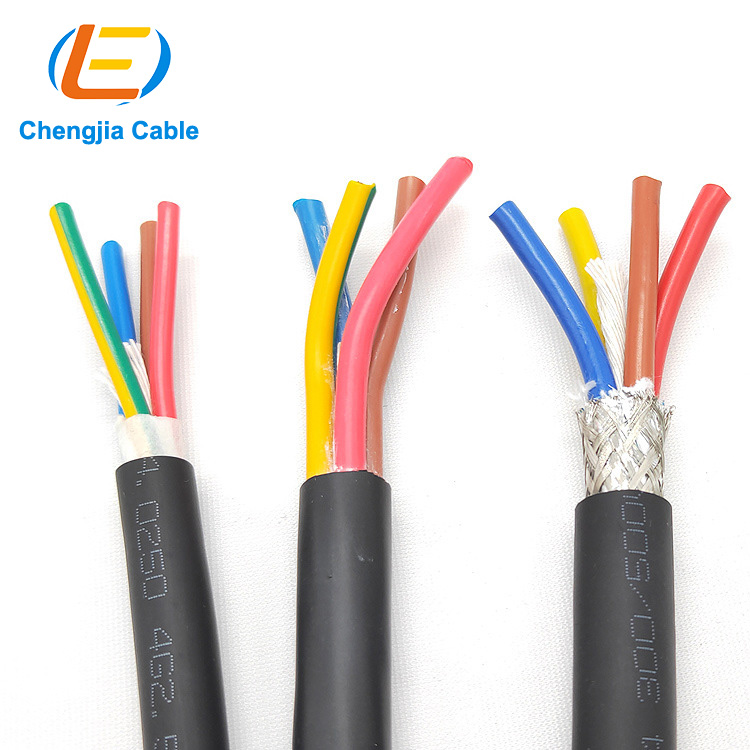

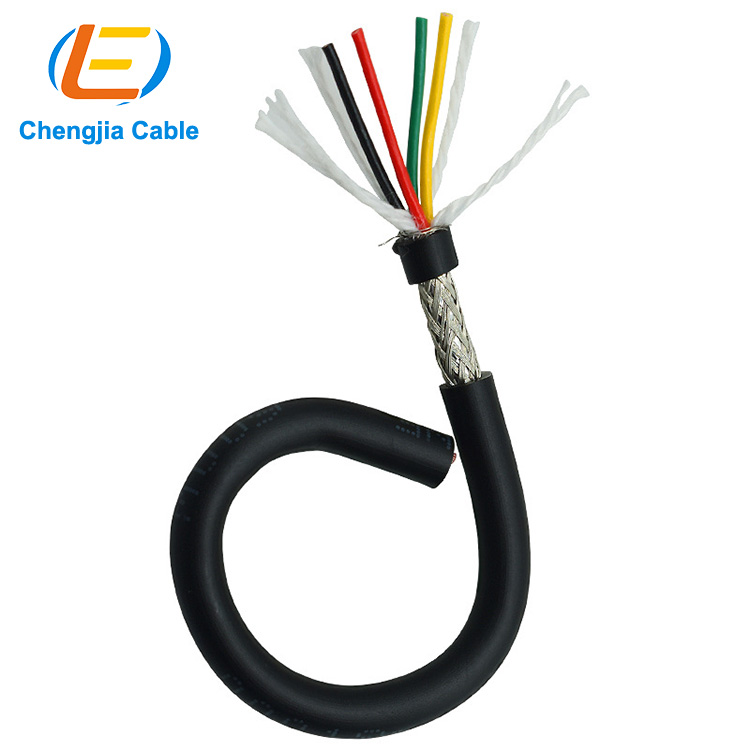

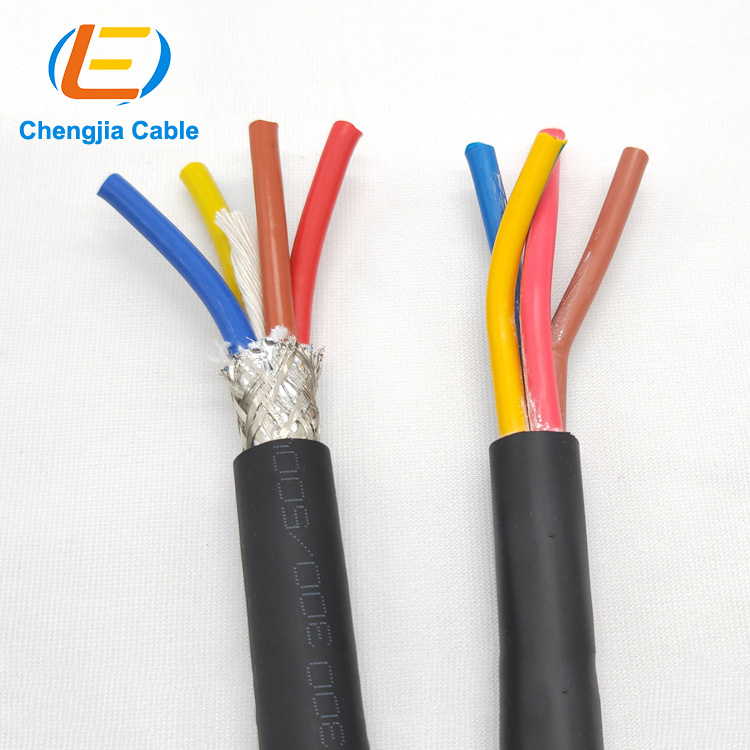

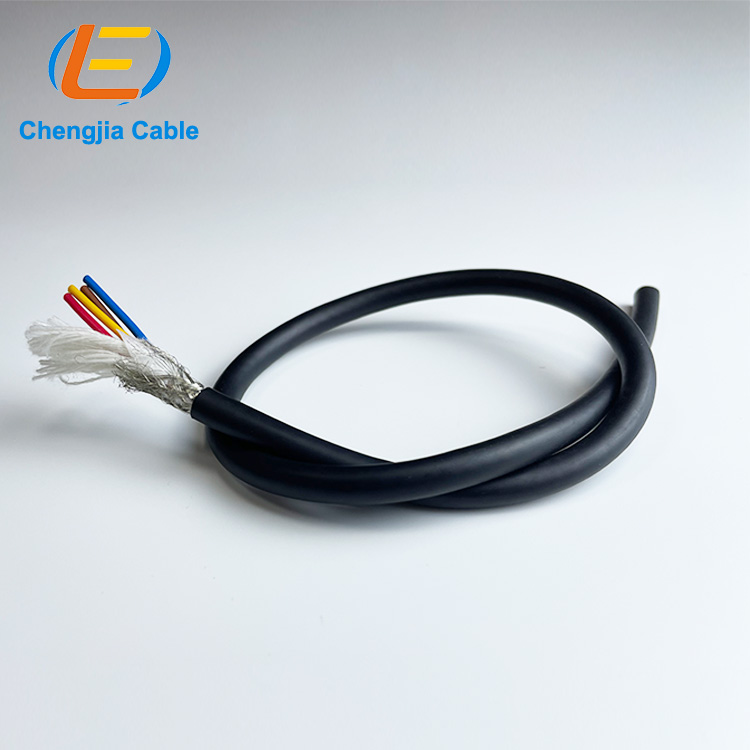

YY508 EMC Shielding Tinned Copper Braid Flexible Industrial Power Cable

YY508 EMC Shielding Tinned Copper Braid Flexible Industrial Power Cable

Highly flexible power cables are mainly used for control and power transmission systems, and are widely used in sensing technology, computer and instrument control equipment and control engineering; three cores and more have green/yellow protective grounding conductors, and the core wires are twisted into a cable stranded The pitch is short and the overall copper wire shielding ensures accurate data transmission and protects the cable from electromagnetic interference. The outer sheath color is: black, other colors can be selected according to needs.

YY508 EMC Shielding Tinned Copper Braid Flexible Industrial Power Cable Feature

YY508 EMC Shielding Tinned Copper Braid Flexible Industrial Power Cable Technical Parameter

Cable Structure

YY508 EMC Shielding Tinned Copper Braid Flexible Industrial Power Cable Structure

1. Bare copper conductor, thin copper wire Complies with DIN VDE 0295 category 6 and IEC 60228 category 6

2. Special PVC insulation

3. Color core wire identification

4. The wire core is stranded in layers with the best pitch

5. With yellow and green grounding wire (3 cores and above)

6. Improved tinned copper wire braided shield

7. The minimum coverage rate is 80%

8. Special PVC outer sheath

9. Black (RAL 9005) matte

One-stop procurement service provider:

complete varieties of ordinary, highly flexible, and ultra-high flexible cables

1. Flexible service robot cable: drag chain 50 million times, 3D torsion more than 20 million times;

2. Industrial robot body cable: 3D torsion 20 million times, 50 million times can be customized;

3. Special cable for linear motor: drag chain 50 million times, 100 million times can be ordered;

4. Ultra-high-speed drag chain cable: drag chain 20 million times, refer to German standard, full extrusion hard wire technology;

5. Ultra-high flexible drag chain cable: drag chain 10 million times, refer to Japanese standards, semi-extrusion flexible cord technology;

6. Highly flexible towline cable: 5~8 million times, refer to Japanese standards, semi-extrusion flexible cord technology;

7. Industrial flexible cable: 2 million low-speed movements, electrical cabinet, servo encoder, IO control wiring;

8. Data bus cable: CC-Link, DeviceNet, Profibus, Cat5e/6a Ethernet cable, etc.;

9. Medical cables: industrial endoscopes, B-ultrasound, medical lifting tables, imaging equipment, sensors, surgical robot cables, etc.;

10. In addition, precision sensor cables can be customized, as well as various high-demand, ultra-fine, chemical-resistant, and high-temperature-resistant special cables.

Company Profile

 Chengjia Wire and Cable Co., Ltd., established in 2009, specializes in the development and manufacturing of high-end special wire and cable. Use the best raw material & Provide the best service, so as to guarantee the cables’stable performance under longtime extremely harsh working conditions.   Chengjia offers our customers the highest quality products, which complys with UL ,CE,TUV,3C  Certifications and our factory successfully obtained ISO 9001:2000.
