TRVVP shielded cable chain10 cores of 0.2 mm oil-resistant withstands 8 million flex cycles moving cables

TRVVP shielded cable chain10 cores of 0.2 mm oil-resistant withstands 8 million flex cycles moving cables

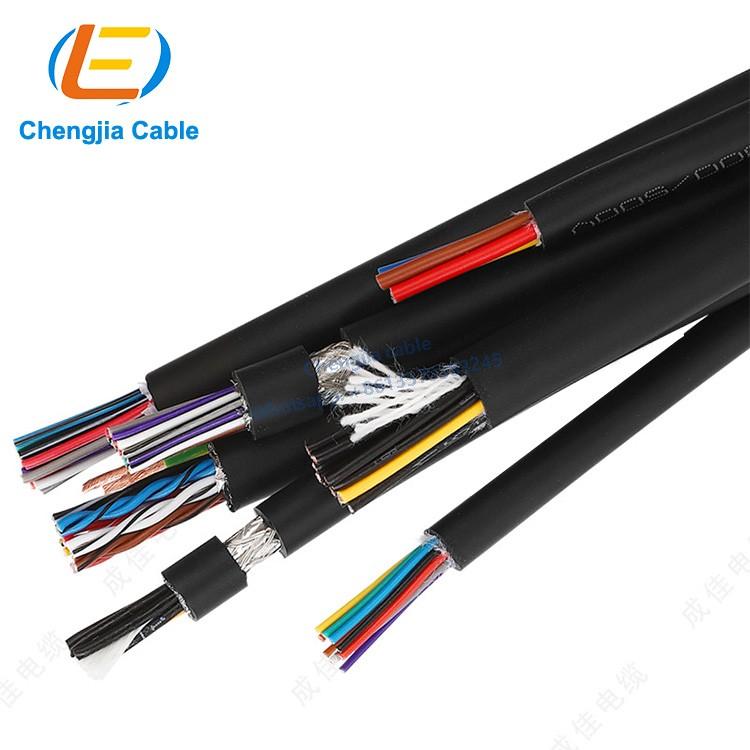

Highly flexible PVC sheathed control moving cables are widely used in control equipment for sensor technology, computer systems and measurement and control technology; the overall copper wire shielding ensures accurate data transmission and protects the cable from electromagnetic interference.
The outer sheath color is: black, other colors can be selected as needed.

TRVVP cable (2).jpg

Shielded Control Cable (3).jpg

The outer sheath color is: black, other colors can be selected as needed.

Cable construction:

Conductor twisting method: Multiple strands of ultra-fine copper wires twisted in accordance with VDE 0295, Category 6, Column 4

Insulation resistance: minimum 100M Ohm X Km

Temperature range: -20℃ to +80℃

Bending radius: 7.5 x cable diameter

Service life for drag chain system: more than 5 million cycles

Standards: Compliant with UL and EU RoHS requirements

YY502 TRVVP shielded control chainflex cable (Color Core) ( 5 million times reliability tests for drag chain)
No.	Product Code	Cores Number and cross-sectional area	Approximate outer diameter （mm)	Outer sheath color
No.	Product Code	(NO.Xm㎡)	Approximate outer diameter （mm)	Outer sheath color
1	YY502.03.0014	3x0.14	4.2	Black
2	YY502.04.0014	. 4x0.14	4.5	Black
3	YY502.06.0014	6x0.14	5.2	Black
4	YY502.08.0014	8x0.14	6.0	Black
5	YY502.10.0014	10x0.14	6.8	Black
6	YY502.12.0014	12x0.14	6.5	Black
7	YY502.16.0014	16x0.14	7.2	Black
8	YY502.20.0014	20x0.14	7.8	Black
9	YY502.26.0014	26x0.14	9.0	Black
10	YY502.02.0020	2x0.2	4.4	Black
11	YY502.03.0020	3x0.2	4.6	Black
12	YY502.04.0020	4x0.2	4.9	Black
13	YY502.05.0020	5x0.2	5.2	Black
14	YY502.06.0020	6x0.2	5.6	Black
15	YY502.08.0020	8x0.2	6.5	Black
16	YY502.10.0020	10x0.2	7.4	Black
17	YY502.12.0020	12x0.2	7.0	Black
18	YY502.16.0020	16x0.2	7.8	Black
19	YY502.20.0020	20x0.2	8.5	Black
20	YY502.26.0020	26x0.2	9.5	Black
21	YY502.30.0020	30x0.2	9.8	Black
22	YY502.02.0030	2x0.3	4.6	Black
23	YY502.03.0030	3x0.3	4.8	Black
24	YY502.04.0030	4x0.3	5.1	Black
25	YY502.05.0030	5x0.3	5.5	Black
26	YY502.06.0030	6x0.3	5.8	Black
27	YY502.08.0030	8x0.3	6.8	Black
28	YY502.10.0030	10x0.3	7.8	Black
29	YY502.12.0030	12x0.3	7.4	Black
30	YY502.16.0030	16x0.3	8.2	Black
31	YY502.20.0030	20x0.3	9.0	Black

Company Profile

Chengjia Wire and Cable Co., Ltd., established in 2009, specializes in the development and manufacturing of high-end special wire and cable. Use the best raw material & Provide the best service, so as to guarantee the cables’stable performance under longtime extremely harsh working conditions. Chengjia offers our customers the highest quality products, which complys with UL ,CE,TUV,3C Certifications and our factory successfully obtained ISO 9001:2000.

FAQ

Q Are you a manufacturer or a trading company?

A We are a manufacturer,we can control your order from the first beginning to the last.Welcome to visit us.We’ll pick you up in Guangzhou.

Q What's your payment terms?A By T/T 30% in advance ; Balance 70% before shipment. Now you can pay through Alibaba company to our Alibaba sub-account. However, the terms can be negotiated according to quantity.

Q l didn't find my needed cable in the page. A Dear Friend, If you don't find the cable you need, please contact us. Q What 's your delivery time?A Usually, we can arrange the shipment within 3-5 days if in stock. Or it takes about 10- 35 days for normal orders.

Q What is your MOQ?

A Normally, 500 meters can be accepted. For special cable the minimum order quantity will be negotiated. Q How can l get a sample to check your quality?

A We are honored to offer you samples. Sample is free, you only need to pay for the shipment. Waiting for your cooperation.
