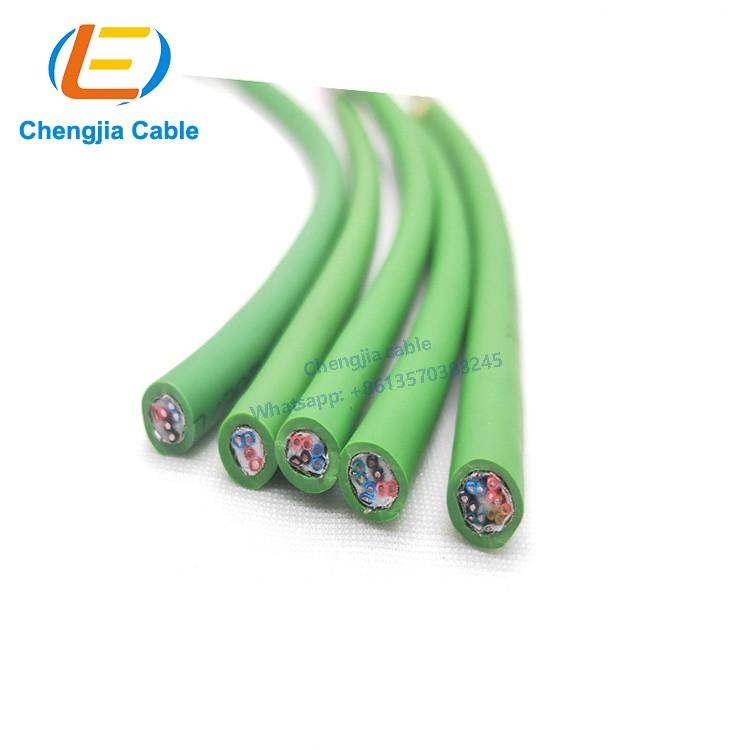

Ultra-high-flexibility high-speed motion signal twisted pair cable wire is a high-flexibility PVC sheathed cable used in drag chain systems. It usually uses special PUR material as the insulating sheath. Its main characteristics are: it is extremely resistant to oil and coolant, and can be used in humid places. When the outdoor temperature is greater than 5°C, it can also be used outdoors. Our cables have been strictly tested and can last for more than 20 million times without power failure, short circuit, and insulation sheath damage during mobile bending tests.
Ultra-high-flexibility high-speed motion signal twisted pair cable wire is a high-flexibility PVC sheathed cable used in drag chain systems. It usually uses special PUR material as the insulating sheath. Its main characteristics are: it is extremely resistant to oil and coolant, and can be used in humid places. When the outdoor temperature is greater than 5°C, it can also be used outdoors. Our cables have been strictly tested and can last for more than 20 million times without power failure, short circuit, and insulation sheath damage during mobile bending tests.
Technical Parameter
Conductor twisting method:
Bare copper conductor, fine copper wire twisting.
Conforms to DIN VDE0295 Class 6 and IEC 60228 Class 6.
Colored core identification
Outer sheath green (RAL 6018) matte
The core is twisted in layers with improved pitch
Improved tinned copper wire braided shield
Ultra-high-speed motion data drag chain cable technical data:
Temperature range:
Mobile installation: -5℃ to +70℃
Fixed installation: -15℃ to +80℃
Minimum bending radius:
Mobile installation 6×cable diameter
Fixed installation 4×cable diameter
Service life for drag chain system:
More than 20 million cycles
Standard voltage:
Uo/U 300/300V
| Model | Number of cores and cross-sectional area (mm²)(mm²) | OD(mm²) | Copper contenkg/km | Weight kg/km |
| KED 211.02.01.02 | (2*0.25)C | 5.0 | 17 | 32 |
| KED 211.02.02.02 | (2*(2*0.25))C | 6.0 | 24 | 43 |
| KED 211.02.03.02 | (3*(2*0.25))C | 7.0 | 34 | 69 |
| KED 211.02.04.02 | (4*(2*0.25))C | 8.0 | 42 | 74 |
| KED 211.02.05.02 | (5*(2*0.25))C | 8.5 | 50 | 90 |
| KED 211.02.06.02 | (6*(2*0.25))C | 9.0 | 59 | 106 |
| KED 211.02.08.02 | (8*(2*0.25))C | 10.5 | 75 | 142 |
| KED 211.02.10.02 | (10*(2*0.25))C | 12.0 | 95 | 174 |
| KED 211.02.14.02 | (14*(2*0.25))C | 12.0 | 115 | 196 |
| KED 211.03.03.02 | (3*(2*0.34))C | 8.0 | 47 | 84 |
| KED 211.03.08.02 | (8*(2*0.34))C | 11.5 | 97 | 174 |
| KED 211.03.10.02 | (10*(2*0.34))C | 13.0 | 119 | 197 |
| KED 211.05.01.02 | (2*0.5)C | 5.5 | 25 | 43 |
| KED 211.05.02.02 | (2*(2*0.5))C | 7.0 | 39 | 64 |
| KED 211.05.03.02 | (3*(2*0.5))C | 9.0 | 58 | 106 |
| KED 211.05.04.02 | (4*(2*0.5))C | 8.5 | 71 | 132 |
| KED 211.05.05.02 | (5*(2*0.5))C | 10.5 | 87 | 154 |
| KED 211.05.06.02 | (6*(2*0.5))C | 11.5 | 96 | 179 |
| KED 211.05.08.02 | (8*(2*0.5))C | 13.0 | 133 | 233 |
| KED 211.05.10.02 | (10*(2*0.5))C | 15.5 | 181 | 295 |
| KED 211.05.14.02 | (14*(2*0.5))C | 15.5 | 200 | 301 |
Used for medium loads, capable of withstanding over 20 million bending cycles.
It has mild oil resistance and is suitable for indoor applications; it can also be used outdoors when the outdoor temperature is above 5°C. Particularly suitable for long-travel sliding applications with horizontal overhead and travel distances less than 50 meters.
Specifically applied in elevated warehouse storage and retrieval equipment, processing equipment/packaging machinery, logistics equipment, and indoor cranes. Standard flexible cables from Calder Cable are developed for industrial automation equipment, ideal for fixed installations or occasional bending movements in non-continuous reciprocating scenarios
Chengjia Wire and Cable Co., Ltd., established in 2009, specializes in the development and manufacturing of high-end special wire and cable. Use the best raw material & Provide the best service, so as to guarantee the cables’stable performance under longtime extremely harsh working conditions. Chengjia offers our customers the highest quality products, which complys with UL ,CE,TUV,3C Certifications and our factory successfully obtained ISO 9001:2000.
FAQ
Q Are you a manufacturer or a trading company?
A We are a manufacturer,we can control your order from the first beginning to the ast.Welcome to visit us.We’ll pick you up in Guangzhou.
Q What's your payment terms?
A By T/T 30% in advance ; Balance 70% before shipment. Now you can pay through Alibaba company to our Alibaba sub-account.However, the terms can be negotiated according to quantity.
Q l didn't find my needed cable in the page.
A Dear Friend, If you don't find the cable you need, please contact us.
Q What 's your delivery time?
A Usually, we can arrange the shipment within 3-5 days if in stock. Or it takes about 10- 35 days for normal orders.
Q What is your MOQ?
A Normally, 100 meters can be accepted. For special cable the minimum order quantity will be negotiated.
Q How can l get a sample to check your quality?
A We are honored to offer you samples. Sample is free, you only need to pay for the shipment. Waiting for your cooperation.
