24*0.3 mm ultra-high flexible multicore cables drag chain control line with bending resistance ultra-high speed moving cable

Ultra-high-speed motion flexible multicore cables are used for data and signal transmission within drag chain systems. They are suitable for sensing technology and computer-controlled equipment. The overall copper wire shielding ensures accurate data transmission and protects the cables from electromagnetic interference. These ultra-high-speed flexible control cables are commonly used in automation equipment, robotics, and similar applications

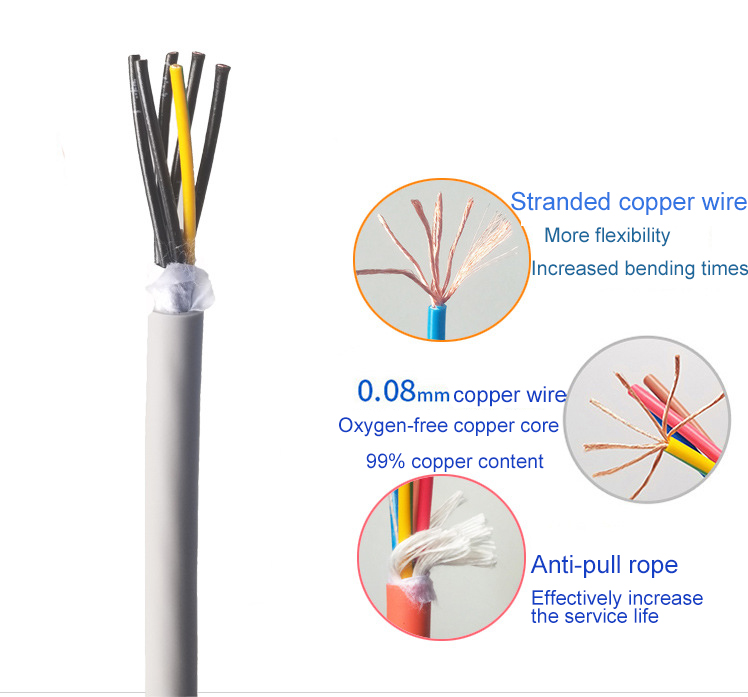

Conductor twisting method:

Tinned copper conductor, fine copper wire twisting.

Conforms to DIN VDE0295 Class 6 and IEC 60228 Class 6.

Colored core identification

Outer sheath gray (RAL7001) matte

The core is twisted in layers with improved pitch

Technical data of high-speed motion control drag chain cable:

Temperature range:

Mobile installation: -5℃ to +70℃

Fixed installation: -15℃ to +80℃

Minimum bending radius:

Mobile installation 6×cable diameter

Fixed installation 4×cable diameter

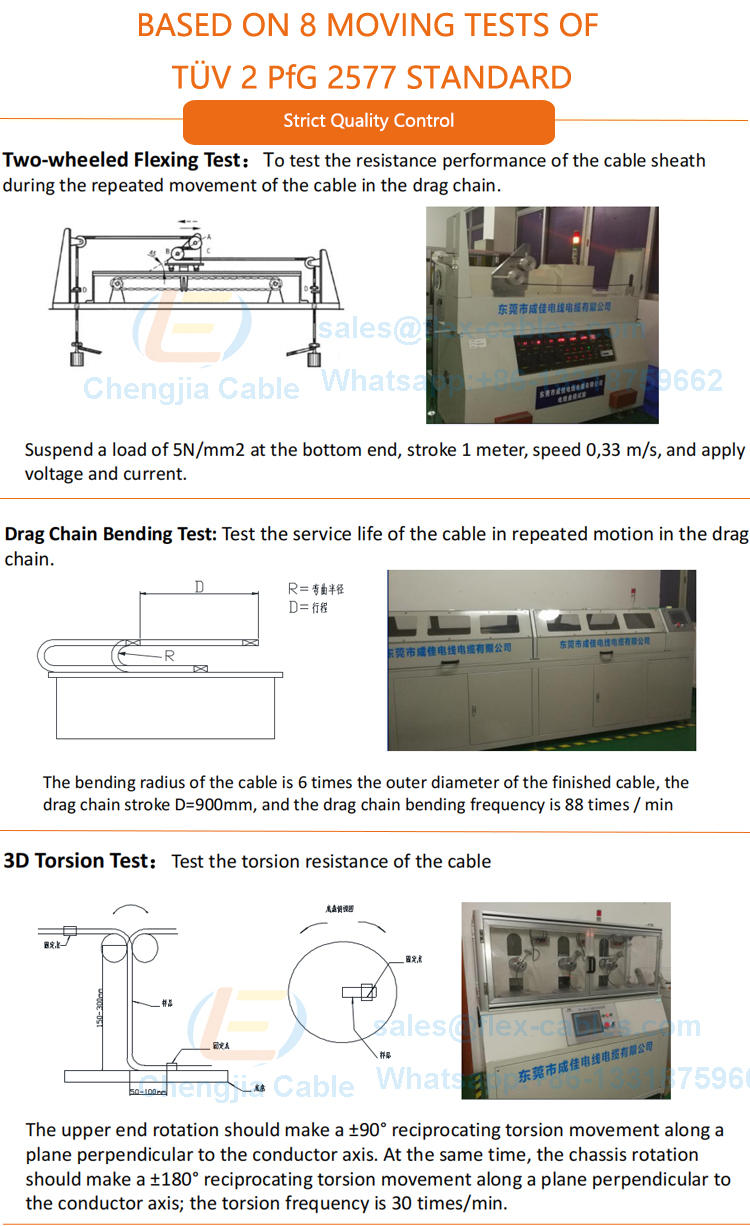

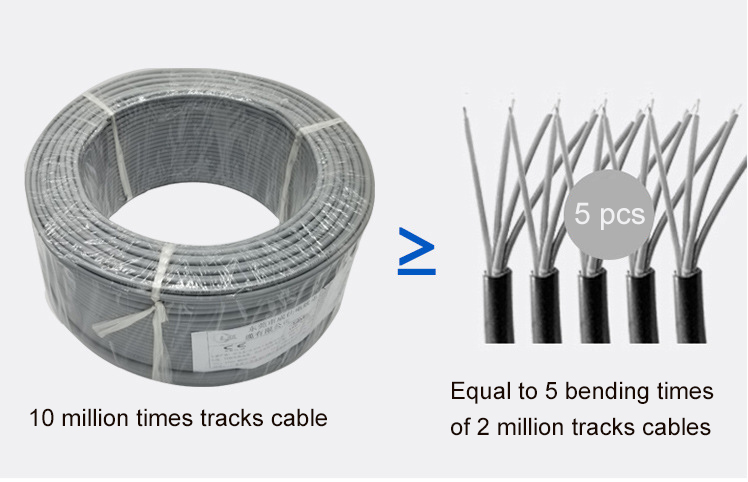

Service life for drag chain system:

More than 15 million cycles

Standard voltage:

Uo/U 300/300V

Standards:

Comply with EU Rohs and Reach regulations

G= represents a green-yellow ground wire. For example: 4G0.5, it is 4 cores x 0.5 square, one core is yellow-green, and the other three cores are red, blue, and brown. For more other specifications or special customized products, please contact us

Company Profile

 Chengjia Wire and Cable Co., Ltd., established in 2009, specializes in the development and manufacturing of high-end special wire and cable. Use the best raw material & Provide the best service, so as to guarantee the cables’stable performance under longtime extremely harsh working conditions.   Chengjia offers our customers the highest quality products, which complys with UL ,CE,TUV,3C  Certifications and our factory successfully obtained ISO 9001:2000.

FAQ

Q Are you a manufacturer or a trading company?

A We are a manufacturer,we can control your order from the first beginning to the last.Welcome to visit us.We’ll pick you up in Guangzhou.

Q What's your payment terms?
A By T/T 30% in advance ; Balance 70% before shipment. Now you can pay through Alibaba company to our Alibaba sub-account. However, the terms can be negotiated according to quantity.

Q l didn't find my needed cable in the page.

A Dear Friend, If you don't find the cable you need, please contact us.

Q What 's your delivery time?
A Usually, we can arrange the shipment within 3-5 days if in stock. Or it takes about 10- 35 days for normal orders.

Q What is your MOQ?
A Normally, 100 meters can be accepted. For special cable the minimum order quantity will be negotiated.

Q How can l get a sample to check your quality?

A We are honored to offer you samples. Sample is free, you only need to pay for the shipment. Waiting for your cooperation.
