YY501 Flexible Control Cables Multi-Conductor Connection Cables For Drag Chain (Colors Cores)

YY501 Flexible Control Cables Multi-Conductor Connection Cables For Drag Chain (Colors Cores)

YY501 Flexible Control Cables Multi-Conductor Connection Cables For Drag Chain (Colors Cores) is used for for drag chain systems, with special high-flex PVC outer sheath, which is extremely resistant to oil and coolant, can be used in humid environments, but cannot be used outdoors. The special construction and the synthetic material of PVC give the cable a long working life.

YY501 Flexible Control Cables Multi-Conductor Connection Cables For Drag Chain (Colors Cores) Description

Flexible Control Cables is suitable for installation under continuous reciprocating motion, especially the frequent bending occasions under the industrial environment, the drag chain of modern machinery standard components and the logistics system, operating system, mechanical automation system and other CNC machine tools, electronic equipment, metal stamping, wood and stone Machinery, glass and door and window machinery, injection molding machines, manipulators, robots, construction machinery, heavy machinery factories, automobile manufacturing, lifting and transportation equipment, automated warehouses, docks, fire trucks and other indoor and outdoor environments

Product Feature

Technical Parameter

Standard		Comply with EU RoHS and Reach regulations
Conductor		adopts high-quality tinned copper stranded copper wire
Insulation material		Special PVC sheath with high flexibility
Temperature range:		Mobile installation -5°C to +70°c Fixed installation -15°C to +80°c
Insulation resistance:		Minimum 20 MOhm x km
Color		Black (other colors can be customized)
Minimum bending radius:		Mobile installation 7.5×cable diameter Fixed installation 6x cable diameter
Nominal voltage		Uo/U 300/300 V
Test voltage		1500 V
Application:		Suitable for various non-standard automated production equipment such as CNC machine tools, industrial robots, servo drives, woodworking machinery, mask machines, manipulators, dispensing machines, laser equipment, stamping lines, logistics automation, ceramic production equipment, etc., which can withstand long-term acceleration, Deceleration, tensile and compressive stress, and high-speed periodic bending, and always maintain high stability.

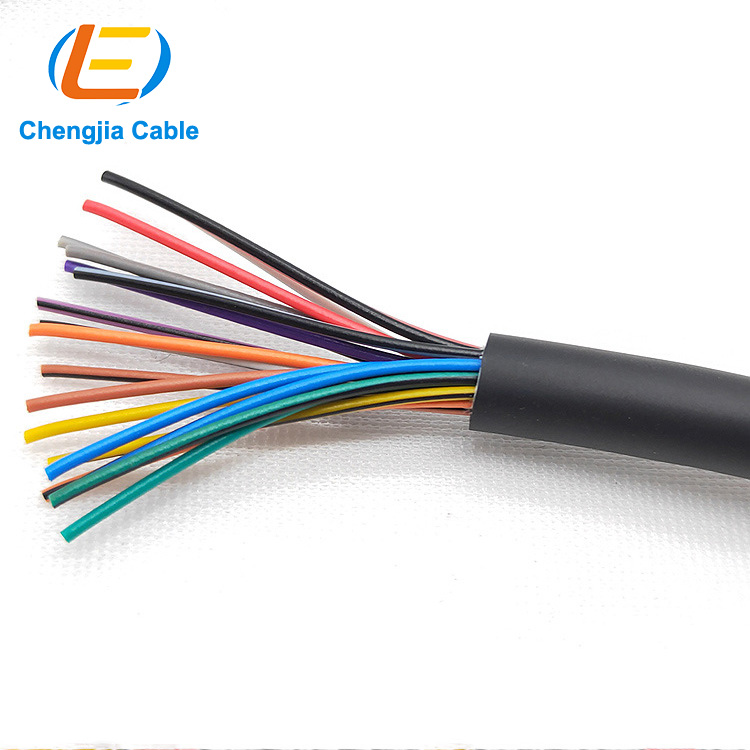

Flexible Control Cables Structure

1. Tinned copper conductor, thin copper wire Complies with DIN VDE 0295 category 6 and IEC 60228 category 6

2. Special PVC insulation

3. Color core wire identification
4. The wire core is stranded in layers with the best pitch

5. Special PVC outer sheath

6. Black (RAL 9005) matte

No.	Product Code	Cores Number and cross-sectional area (NO.Xm㎡)	Approximate outer diameter （mm)	Outer sheath color	20℃ Conductor DC resistance Ω/km
1	YY501.02.0020	2x0.2	3.8	Black	95
2	YY501.03.0020	3x0.2	4.0	Black	95
3	YY501.04.0020	4x0.2	4.5	Black	95
4	YY501.05.0020	5x0.2	4.8	Black	95
5	YY501.06.0020	6x0.2	5.2	Black	95
6	YY501.08.0020	8x0.2	6.0	Black	95
7	YY501.10.0020	10x0.2	6.8	Black	95
8	YY501.12.0020	12x0.2	6.5	Black	95
9	YY501.16.0020	16x0.2	7.2	Black	95
10	YY501.20.0020	20x0.2	8.0	Black	95
11	YY501.02.0030	2x0.3	4.2	Black	71.2
12	YY501.03.0030	3x0.3	4.4	Black	71.2
13	YY501.04.0030	4x0.3	4.8	Black	71.2
14	YY501.05.0030	5x0.3	5.2	Black	71.2
15	YY501.06.0030	6x0.3	5.5	Black	71.2
16	YY501.08.0030	8x0.3	6.5	Black	71.2
17	YY501.10.0030	10x0.3	7.3	Black	71.2
18	YY501.12.0030	12x0.3	7.0	Black	71.2
19	YY501.16.0030	16x0.3	7.8	Black	71.2
20	YY501.20.0030	20x0.3	8.5	Black	71.2
MOQ 1 meter, If you need to order PUR outer sheath, MOQ 400 meters
