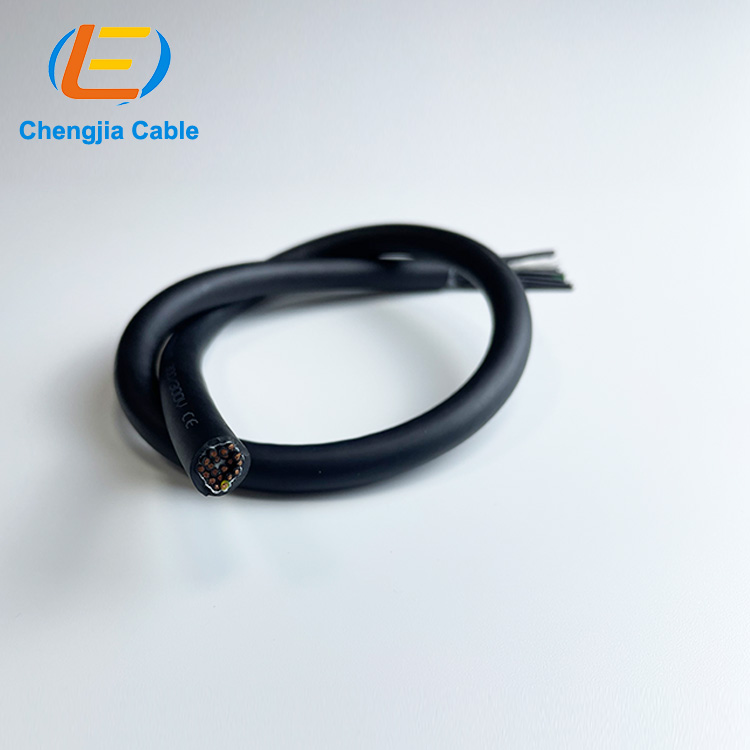

YY501 Flexible Multi-Conductor Control Cable With Black Numbered Cores is suitable for installation in dry or humid indoors, without strong stress slow release or forced guide free and continuous reciprocating motion, especially for frequent bending occasions in industrial use environments, such as woodworking machinery, machine tool processing equipment, logistics conveying systems, crane occasions Wait.

YY501 Flexible Multi-Conductor Control Cable With Black Numbered Cores

5 million times highly flexible PVC sheathed YY501 Flexible Multi-Conductor Control Cable With Black Numbered Cores, using special PVC as the outer sheath, it is extremely resistant to oil and coolant, can be used in humid environments, but can not be used outdoors, the special structure and PVC synthetic materials make the cable durable Working life. Widely used in sensor technology, computer systems and control equipment of measurement control technology; the overall copper wire shielding ensures accurate data transmission and protects the cable from electromagnetic interference. The outer sheath color is black, other colors is available

Product Feature

YY501 Flexible Multi-Conductor Control Cable With Black Numbered Cores Technical Parameter

Standard		Comply with EU RoHS and Reach regulations
Conductor		adopts high-quality tinned copper stranded copper wire
Insulation material		Special PVC sheath with high flexibility
Temperature range:		Mobile installation -5C to +70°c Fixed installation -15°C to +80°c
Insulation resistance:		Minimum 20 MOhm x km
Outer sheath		Modified PVC mate
Color		black (other colors can be customized)
Minimum bending radius:		Mobile installation 7.5×cable diameter Fixed installation 6×cable diameter
Nominal voltage		Uo/U 300/300 V
Test voltage		1500 V
Application:		It is especially suitable for continuous high-flexible drag chain bending applications of mechanical equipment and machine tools. The highly flexible cable uses specially modified insulating materials and outer covering materials, has high abrasion resistance and medium resistance, and can withstand long-term acceleration, deceleration, tensile and compressive stress, and more than five million cycles of periodic bending , And always maintain high stability.

YY501 Flexible Multi-Conductor Control Cable With Black Numbered Cores Structure

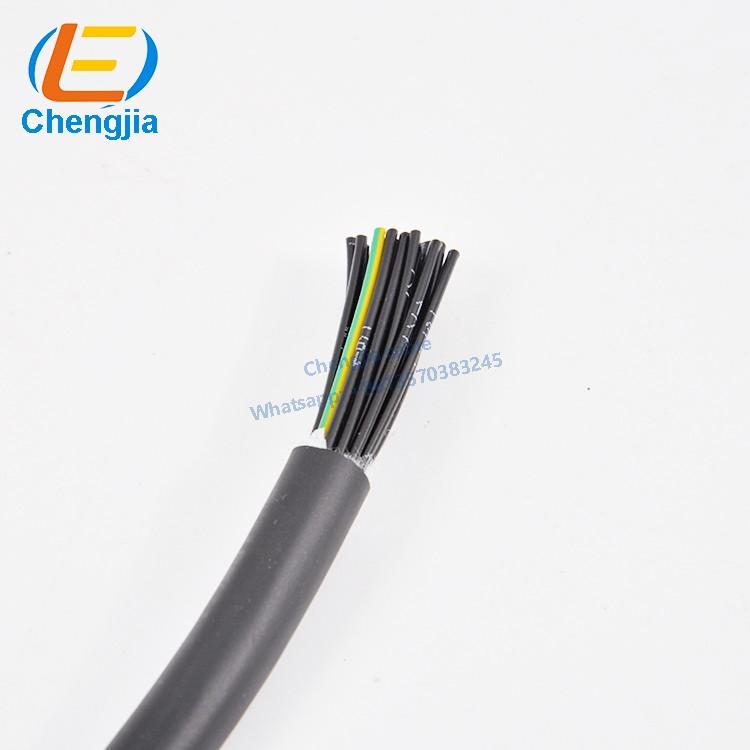

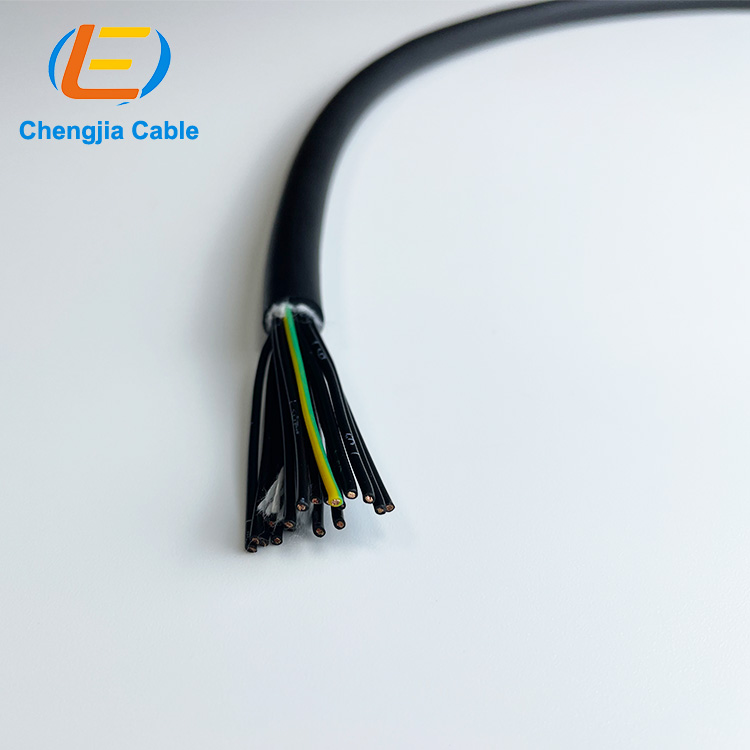

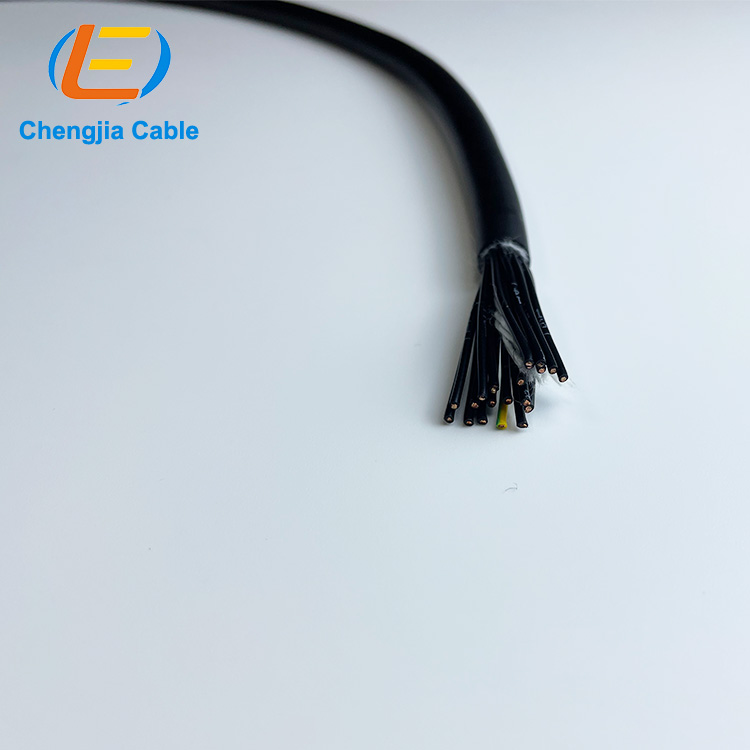

1. Bare copper conductor, thin copper wire Complies with DIN VDE 0295 category 6 and IEC 60228 category 6 2. Special PVC insulation 3. Black core wire, with continuous white digital code, yellow-green ground wire on the outer layer (3 cores and above) 4. The wire core is stranded in layers with the best pitch 5. Special PVC outer sheath 6. Black (RAL 9005) matte

No.	Product Code	Cores Number and cross-sectional area (NO.Xm㎡)	Approximate outer diameter （mm)	Outer sheath color	20℃ Conductor DC resistance Ω/km
1	YY501.06.0050	6x0.5	.6.5	Black	39
2	YY501.08.0050	8x0.5	7.6	Black	39
3	YY501.10.0050	10x0.5	8.8	Black	39
4	YY501.12.0050	12x0.5	8.4	Black	39
5	YY501.16.0050	16x0.5	9.4	Black	39

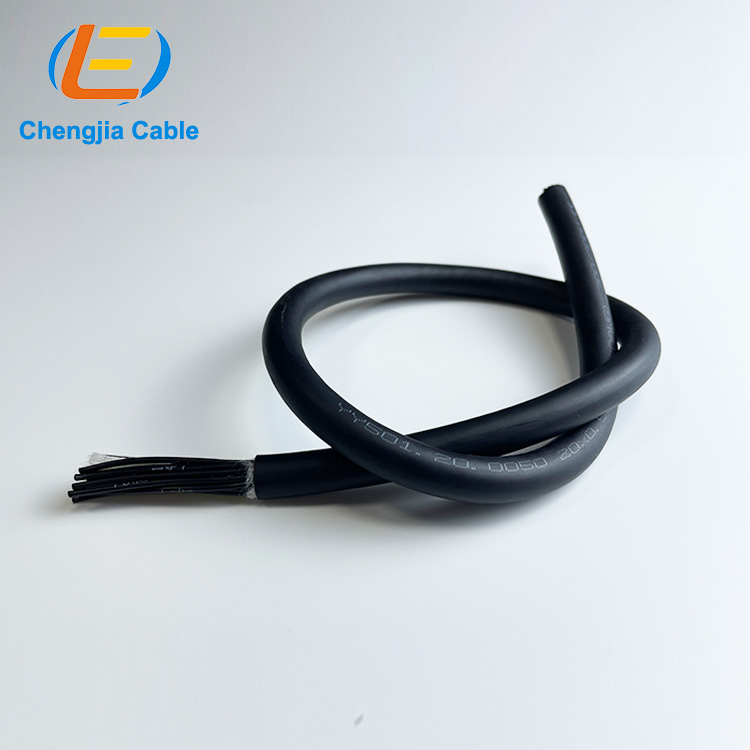

6	YY501.20.0050	20x0.5	10.2	Black	39
MOQ 1 meter, If you need to order PUR outer sheath, MOQ 400 meters
