YY507 High Flexible Machine Motor Cable Flexible Power Wire

YY507 High Flexible Machine Motor Cable Flexible Power Wire

YY507 High Flexible Machine Motor Cable Flexible Power Wire is widely used in machinery, instruments, industrial electronic equipment, computers, information transmission systems, and is suitable for any two-way communication occasions.

YY507 High Flexible Machine Motor Cable Flexible Power Wire

Highly flexible power cables are mainly used for control and power transmission systems, and are widely used in sensing technology, computer and instrument control equipment and control engineering; three cores and more have green/yellow protective grounding conductors, and the core wires are twisted into a cable stranded The pitch is short and the overall copper wire shielding ensures accurate data transmission and protects the cable from electromagnetic interference. The outer sheath color is: black, other colors can be selected according to needs.

YY507 High Flexible Machine Motor Cable Flexible Power Wire Feature

YY507 High Flexible Machine Motor Cable Flexible Power Wire Technical Parameter

Conductor stranding		Stranding of multiple ultra-fine copper wires meets the standard of VDE0295, category 6, column 4
Insulation resistance		minimum 100 M Ohm x Km
Insulation material		Modified PVC
Temperature range:		-20°C to +80°C
Core recognition		Color core
Outer sheath		Modified PVC mate
Color		black (other colors can be customized)
Bending radius		Mobile installation 7.5×cable diameter Fixed installation 6x cable diameter
Nominal voltage		Uo/U 300/500 V
Test voltage		2000 V
Application:		It can be used in multi-joint robots, manipulators, CNC machine tools, non-standard automation equipment, servo encoders/motors, drag chain systems, laser equipment, electrical cabinets, industrial imaging and other fields.

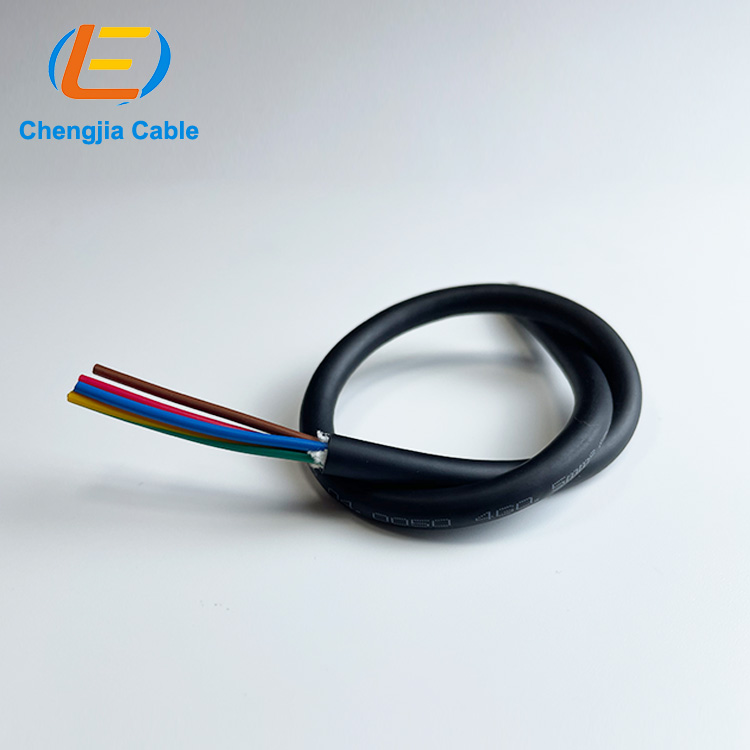

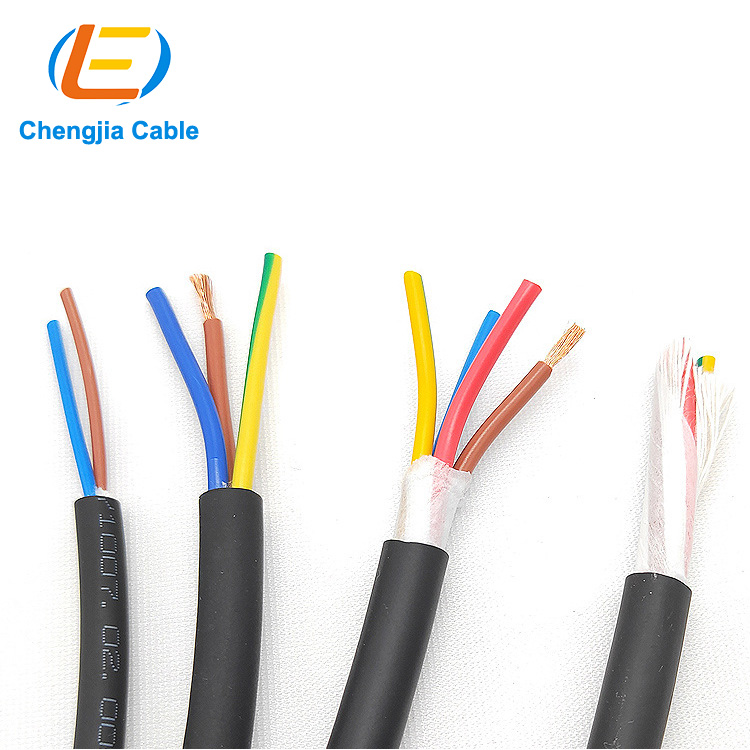

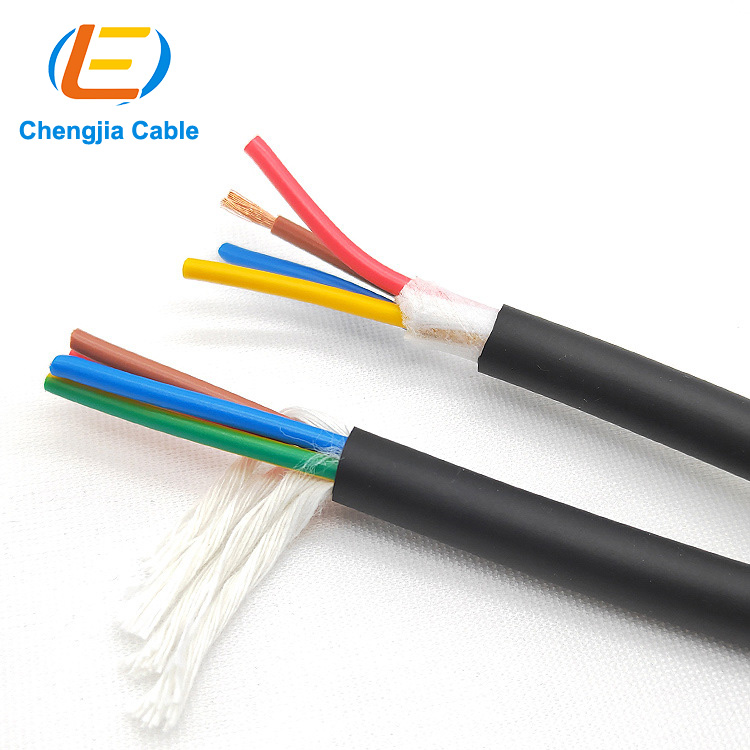

YY507 High Flexible Machine Motor Cable Flexible Power Wire Structure

1. Bare copper conductor, thin copper wire Comply with DIN VDE0295 category 6 and IEC 60228 category 6

2. Special PVC insulation

3. Color core wire identification

4. The wire core is stranded in layers with the best pitch

5. With yellow and green grounding wire (3 cores and above)

6. Special PVC outer sheath

7. Black (RAL 9005) matte

No.	Product Code	Cores Number and cross-sectional area (NO.Xm㎡)	Approximate outer diameter （mm)	Outer sheath color	20℃ Conductor DC resistance Ω/km
1	YY507.02.0050	2x0.5	5.8	Black	39
2	YY507.04.0050	4G0.5	6.8	Black	39
3	YY507.04.0075	4G0.75	7.2	Black	26
4	YY507.04.0100	4G1.0	7.8	Black	19.5
5	YY507.04.0150	4G1.5	8.9	Black	13.3
6	YY507.04.0250	4G2.5	10.8	Black	7.98
MOQ 1 meter, If you need to order PUR outer sheath, MOQ 400 meters

One-stop procurement service provider:

complete varieties of ordinary, highly flexible, and ultra-high flexible cables

1. Flexible service robot cable: drag chain 50 million times, 3D torsion more than 20 million times;
2. Industrial robot body cable: 3D torsion 20 million times, 50 million times can be customized;

3. Special cable for linear motor: drag chain 50 million times, 100 million times can be ordered;

4. Ultra-high-speed drag chain cable: drag chain 20 million times, refer to German standard, full extrusion hard wire technology;

5. Ultra-high flexible drag chain cable: drag chain 10 million times, refer to Japanese standards, semi-extrusion flexible cord technology;

6. Highly flexible towline cable: 5~8 million times, refer to Japanese standards, semi-extrusion flexible cord technology;

7. Industrial flexible cable: 2 million low-speed movements, electrical cabinet, servo encoder, IO control wiring;

8. Data bus cable: CC-Link, DeviceNet, Profibus, Cat5e/6a Ethernet cable, etc.;

9. Medical cables: industrial endoscopes, B-ultrasound, medical lifting tables, imaging equipment, sensors, surgical robot cables, etc.;

10. In addition, precision sensor cables can be customized, as well as various high-demand, ultra-fine, chemical-resistant, and high-temperature-resistant special cables.
