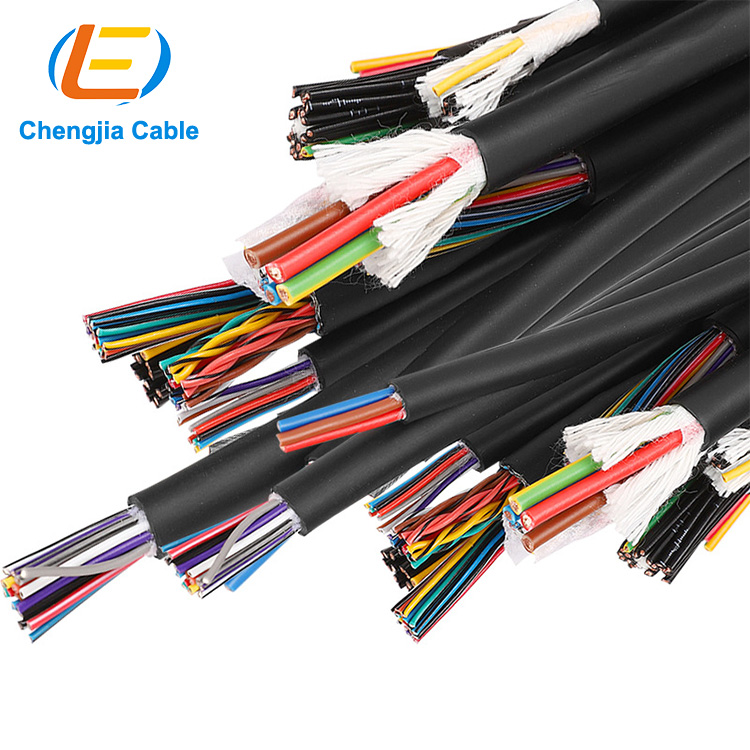

YY501 Extremely oil-resistant unshielded flexible power control cable multiconductor cable

YY501 Extremely oil-resistant unshielded flexible power control cable multiconductor cable

PVC or PUR is used as the outer sheath material, and multiple strands of ultra-fine oxygen-free copper wires are stranded as conductors. Flexible power control cable multiconductor cable is suitable for use in drag chains such as manipulators and automation equipment. It is resistant to wear, folding and corrosion.

PVC or PUR is used as the outer sheath material, and multiple strands of ultra-fine oxygen-free copper wires are stranded as conductors.

Flexible power control cable multiconductor cable is suitable for use in drag chains such as manipulators and automation equipment. It is resistant to wear, folding and corrosion.

unshielded flexible power control cable multiconductor cable Technical Parameter

Standard		Comply with EU RoHS and Reach regulations
Conductor		adopts high-quality tinned copper stranded copper wire
Insulation material		Special PVC sheath with high flexibility
Temperature range:		Mobile installation -5C to +70°c Fixed installation -15°C to +80°c
Insulation resistance:		Minimum 20 MOhm x km
Outer sheath		Modified PVC mate
Color		black (other colors can be customized)
Minimum bending radius:		Mobile installation 7.5×cable diameter Fixed installation 6×cable diameter
Nominal voltage		Uo/U 300/300 V
Test voltage		1500 V
Application:		It is especially suitable for continuous high-flexible drag chain bending applications of mechanical equipment and machine tools. The highly flexible cable uses specially modified insulating materials and outer covering materials, has high abrasion resistance and medium resistance, and can withstand long-term acceleration, deceleration, tensile and compressive stress, and more than five million cycles of periodic bending , And always maintain high stability.

Cable Structure

unshielded flexible power control cable multiconductor cable Structure

1. Bare copper conductor, thin copper wire Complies with DIN VDE 0295 category 6 and IEC 60228 category 6 2. Special PVC insulation 3. Black core wire, with continuous white digital code, yellow-green ground wire on the outer layer (3 cores and above) 4. The wire core is stranded in layers with the best pitch 5. Special PVC outer sheath 6. Black (RAL 9005) matte

No.	Product Code	Cores Number and cross-sectional area (NO.Xm㎡)	Approximate outer diameter （mm)	Outer sheath color	20℃ Conductor DC resistance Ω/km
1	YY501.06.0050	6x0.5	.6.5	Black	39
2	YY501.08.0050	8x0.5	7.6	Black	39
3	YY501.10.0050	10x0.5	8.8	Black	39
4	YY501.12.0050	12x0.5	8.4	Black	39
5	YY501.16.0050	16x0.5	9.4	Black	39
6	YY501.20.0050	20x0.5	10.2	Black	39
MOQ 1 meter, If you need to order PUR outer sheath, MOQ 400 meters

Company Profile

Chengjia Wire and Cable Co., Ltd., established in 2009, specializes in the development and manufacturing of high-end special wire and cable. Use the best raw material & Provide the best service, so as to guarantee the cables’stable performance under longtime extremely harsh working conditions. Chengjia offers our customers the highest quality products, which complys with UL ,CE,TUV,3C Certifications and our factory successfully obtained ISO 9001:2000.

FAQ

Q Are you a manufacturer or a trading company?

A We are a manufacturer,we can control your order from the first beginning to the last.Welcome to visit us.We’ll pick you up in Guangzhou.

Q What's your payment terms?
A By T/T 30% in advance ; Balance 70% before shipment. Now you can pay through Alibaba company to our Alibaba sub-account. However, the terms can be negotiated according to quantity.

Q l didn't find my needed cable in the page.

A Dear Friend, If you don't find the cable you need, please contact us.

Q What 's your delivery time?
A Usually, we can arrange the shipment within 3-5 days if in stock. Or it takes about 10- 35 days for normal orders.

Q What is your MOQ?
A Normally, 100 meters can be accepted. For special cable the minimum order quantity will be negotiated.

Q How can l get a sample to check your quality?

A We are honored to offer you samples. Sample is free, you only need to pay for the shipment. Waiting for your cooperation.
